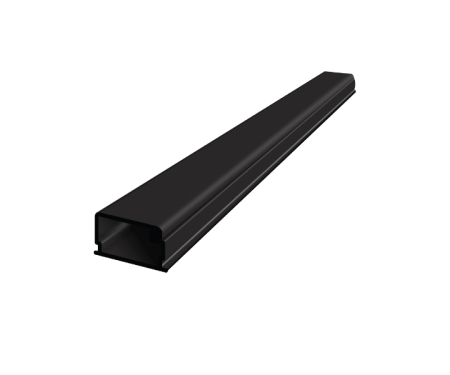

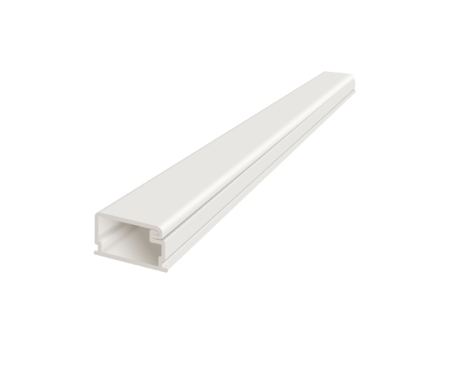

WireTrak Cable Raceway On a Roll
Hinged Lid Raceway is Rolled In Box to Use Less Space | 50' Long
0.0 / 5
WireTrak® Cable Race Way On a Roll Features
- Length – 50 Feet
- Self-adhesive backing makes it simple to install on a baseboard or wall.
- Easy to Transport & Dispense at Job Site

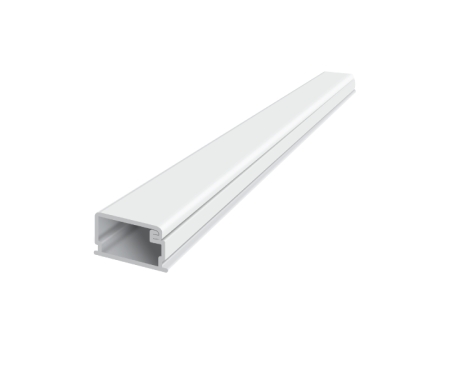

- Hinged Lid On Raceway Allows for Easy Access to Cables & Wires
- Eliminates Waste: Use Only What is Needed

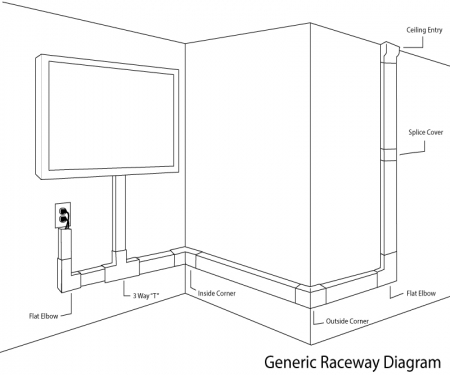

- Numerous Accessories Available
- Made From UL Flame Resistant PVC
- Paint-able to Match Any Decor

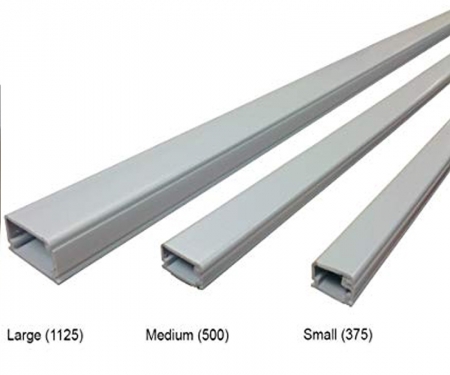

- Available in 3 Different Sizes for Unique Accommodation
Raceway Completely Regains Proper Shape After Being Pulled From Box.

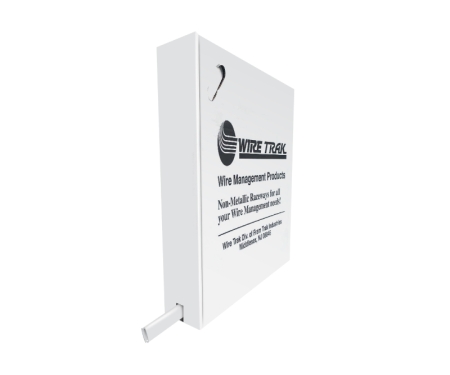

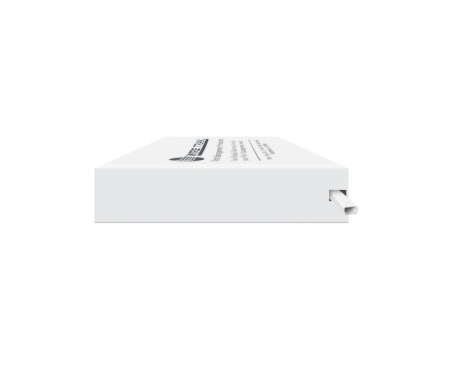

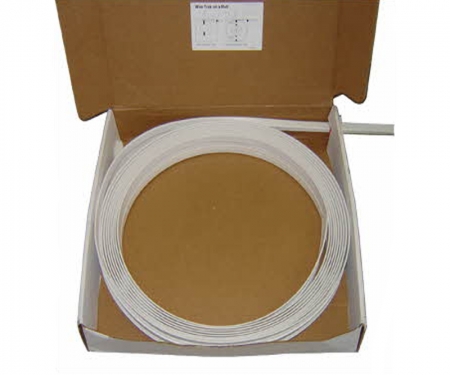

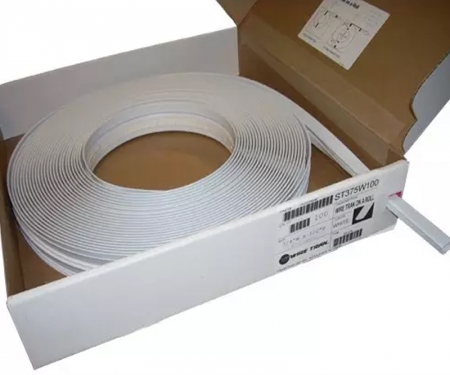

From a 20 inch dispenser box, you can simply pull up to 100 feet of completely formed raceway, instantly ready for use. No waste, as each time you use only what you need. Push the extra raceway back though the forming/recoil device and it recoils itself back in the box ready for next time. The Wire Trak Form Raceway integrated lid latches closed securely and may be opened and closed continually without degradation of the hinge.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

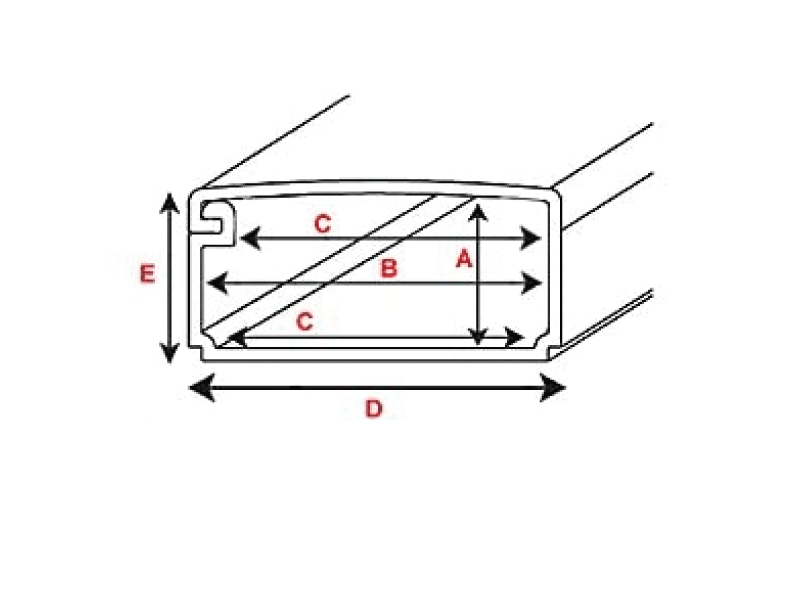

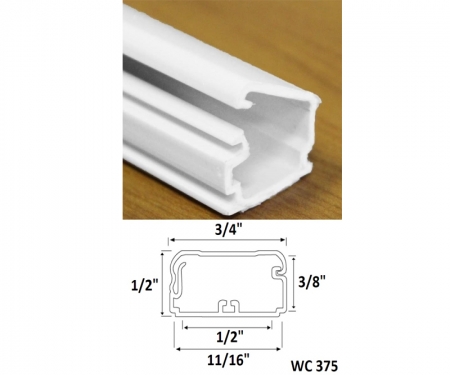

| MODEL | A INSIDE HEIGHT | B CHANNEL WIDTH | C CHANNEL WIDTH | D TOTAL WIDTH | E TOTAL HEIGHT | WALL THICKNESS | TAPE WIDTH |
|---|---|---|---|---|---|---|---|
| 375SR | 10mm 0.39" | 17mm 0.67" | 13mm 0.51" | 20mm 0.79" | 13mm 0.51" | 0.050" | 0.500" |

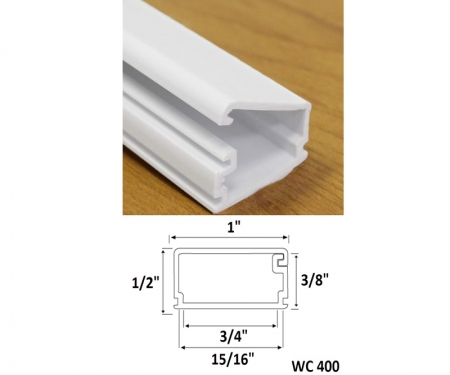

| 500SR | 10mm 0.39" | 23mm 0.91" | 19mm 0.75" | 25mm 0.95" | 13mm 0.51" | 0.050" | 0.750" |

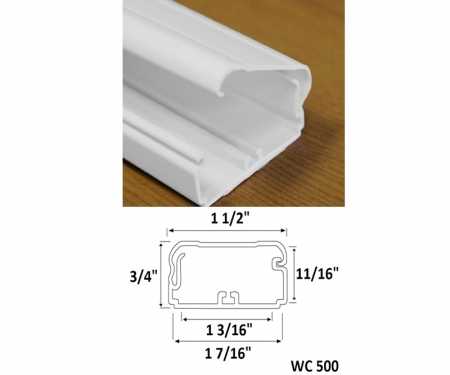

| 1125SR | 16mm 0.63" | 36mm 1.42" | 32mm 1.26" | 38mm 1.50" | 20mm 0.79" | 0.050" | 1.000" |
| Material | Rimtec 4314A Natural Rigid PVC | |
|---|---|---|
| Color | White | |
| Length | 30" (per piece) [76,2cm] | |
| Width | 4.5" [11,4cm] | |
| Thickness | 0.5" [1,27cm] | |
| Weight | 2.31 lbs (1.06 kg) | |
| Specific Gravity (± 0.02) | 1.43 | ASTM D-792 |
| Hardness (durometer D/10 ± 2) | 80 | ASTM D-2240 |
| Izod Impact, ft lbs/in notch | 19.0 | ASTM D-256 |
| Tensile Yield Strength, 103 psi | 6.0 | ASTM D-638 |
| Tensile Modulus, 105 psi | 3.7 | ASTM D-638 |
| Flexural Yield Strength, 103 psi | 11.4 | ASTM D-790 |
| Flexural Modulus, 105 psi | 4.5 | ASTM D-790 |
| DTUL at 264 psi (18.5 kg/cm), ℃ | Unannealed: 70 Annealed: 75 | ASTM D-648 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
From a 20 inch dispenser box, you can simply pull up to 100 feet of completely formed raceway, instantly ready for use. No waste, as each time you use only what you need. Push the extra raceway back though the forming/recoil device and it recoils itself back in the box ready for next time. The Wire Trak Form Raceway integrated lid latches closed securely and may be opened and closed continually without degradation of the hinge.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| MODEL | A INSIDE HEIGHT | B CHANNEL WIDTH | C CHANNEL WIDTH | D TOTAL WIDTH | E TOTAL HEIGHT | WALL THICKNESS | TAPE WIDTH |
|---|---|---|---|---|---|---|---|
| 375SR | 10mm 0.39" | 17mm 0.67" | 13mm 0.51" | 20mm 0.79" | 13mm 0.51" | 0.050" | 0.500" |
| 500SR | 10mm 0.39" | 23mm 0.91" | 19mm 0.75" | 25mm 0.95" | 13mm 0.51" | 0.050" | 0.750" |
| 1125SR | 16mm 0.63" | 36mm 1.42" | 32mm 1.26" | 38mm 1.50" | 20mm 0.79" | 0.050" | 1.000" |
| Material | Rimtec 4314A Natural Rigid PVC | |
|---|---|---|
| Color | White | |
| Length | 30" (per piece) [76,2cm] | |
| Width | 4.5" [11,4cm] | |
| Thickness | 0.5" [1,27cm] | |
| Weight | 2.31 lbs (1.06 kg) | |
| Specific Gravity (± 0.02) | 1.43 | ASTM D-792 |
| Hardness (durometer D/10 ± 2) | 80 | ASTM D-2240 |
| Izod Impact, ft lbs/in notch | 19.0 | ASTM D-256 |
| Tensile Yield Strength, 103 psi | 6.0 | ASTM D-638 |
| Tensile Modulus, 105 psi | 3.7 | ASTM D-638 |
| Flexural Yield Strength, 103 psi | 11.4 | ASTM D-790 |
| Flexural Modulus, 105 psi | 4.5 | ASTM D-790 |
| DTUL at 264 psi (18.5 kg/cm), ℃ | Unannealed: 70 Annealed: 75 | ASTM D-648 |
