Quest® Wall Mount Server Cabinets
5U - 28U Options - Fixed & Removable Side Panel Options
0.0 / 5
Quest® Wall Mount Server Cabinets Features

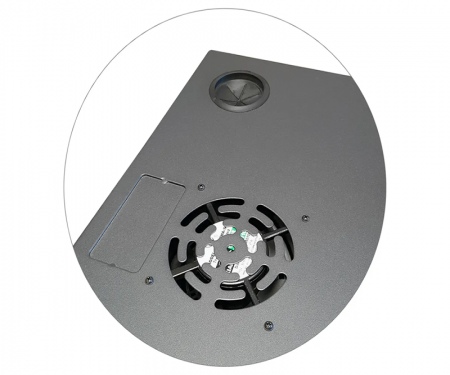

- 1 Ventilation fan 60CFM
- Designed with internal mounting rails tapped for M6 cage nuts in accordance with EIA standards
- Comes complete with equipment mounting screws
- Front door is reversible for left or right side opening 180° radius
- Comes equipped with front mount rails. No additional rails can be purchased
- Meets or exceeds EIA-310D standards
- Finish (Paint): Electrostatic Microfinish
- Vented Front, Rear and Top Panels
Product Details
Quest 100 Series Wall Mount Enclosures are our economical style wall mount enclosures with equipment access through the smoked acrylic reversible front door. They include one preinstalled 80 CFM fan for ventilation, and a front set of cage nut rails. They are available in four sizes, and come in a choice of ivory or black powdercoat microfinish. To save on shipping costs and storage space these enclosures are also available in a knockdown version as our EZ-Series of wall mount enclosures.

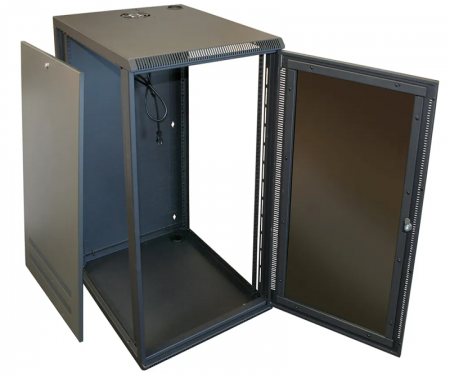

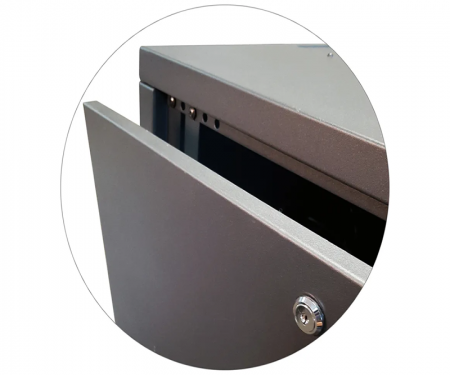

Quest 200 Series Wall Mount Enclosures provide equipment access through the smoked acrylic reversible front door, as well as through the removable vented side panels. They include one preinstalled 80 CFM fan for ventilation, come complete with both front and rear cage nut rails, are available in eight sizes, and come in a choice of ivory or black powdercoat microfinish.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| SKU | Q-WM10190502 | Q-WM10190702 | Q-WM10190902 | Q-WM10191102 |
| Rack Units | 5U | 7U | 9U | 11U |
| Rack Size Height External (Internal) | 12.5" (9") | 16” (12.5”) | 19.5" (16") | 21.77" (19.09") |
| Item | Rack Units | Internal Dimensions | External Dimensions | Weight |

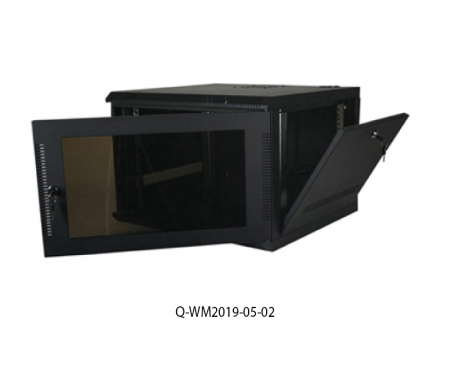

| Q-WM2019-05-02 | 5u | 9.5″H x 19″W x 16″D | 12.5″H x 21″W x 20″D | 37 lbs |
| Q-WM2019-07-02 | 7u | 12.5″H x 19″W x 16″D | 16″H x 21″W x 20″D | 39 lbs |
| Q-WM2019-09-02 | 9u | 16″H x 19″W x 16″D | 19.5″H x 21″W x 20″D | 47 lbs |

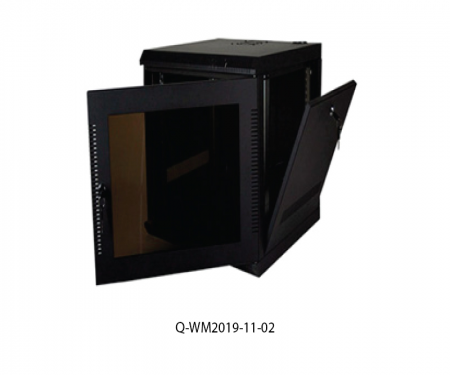

| Q-WM2019-11-02 | 11u | 19.5″H x 19″W x 16″D | 23″H x 21″W x 20″D | 53.1 lbs |
| Q-WM2019-14-02 | 14u | 24.5″H x 19″W x 16″D | 28″H x 21″W x 20″D | 58.2 lbs |
| Q-WM2019-16-02 | 16u | 28″H x 19″W x 16″D | 31.5″H x 21″W x 20″D | 61.5 lbs |
| Q-WM2019-20-02 | 20u | 38.5″H x 19″W x 24″D | 38.5″H x 21″W x 28″D | 92 lbs |
| Q-WM2019-28-02 | 28u | 52.5″H x 19″W x 24″D | 52.5″H x 21″W x 28″D | 117 lbs |
| Rack Size Width External (Internal) | 20.5" (19") | ||
| Rack Size Depth External (Internal) | 20" (18") | ||
| Mounting Format (Internal) | 19" | ||
| Reversible Front Locking Door | Smoked Acrylic | ||
| Vented Side Panels | Fixed | ||
| Hinged Swing Out Design | No | ||
| Reinforced Door Frame | Yes | ||
| Cage Nut Rails | Front | ||
| Key Lock Set (2 Keys per Set) | 1 Set | ||
| Cable Access | Top:Cutouts Bottom:Cutouts | ||
| Structure & Fabrication | 18AWG Steel | ||
| Electrostatic Powdercoat MicroFinish | Black (-02) Ivory (-01) | ||
| Preinstalled 80CFM 110V Fans | 1 | ||
| Compliance | EIA-310D | ||
| Weight (lbs) | 130 | ||
| Delivery Style | Assembled | ||
