Techflex® Volcano Wrap High Temp Sleeving
Woven Volcanic Rock Wrap Withstands Heat up to 1,500°F
0.0 / 5
Volcano Wrap Sleeving Features
- Operating Temperature Range: -103° to 1,500°F (-75° to 816°C.)
- Increases Performance in Exhaust Systems
- Resists Common Chemicals & Solvents

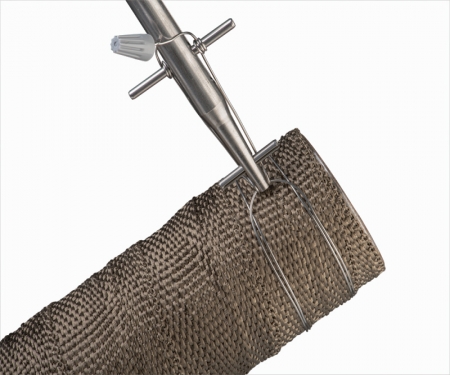

- Cuts Easily With Scissors or Shears
- Halogen and Asbestos Free
- 2,400°F / 1,316°C. Melt Temp.

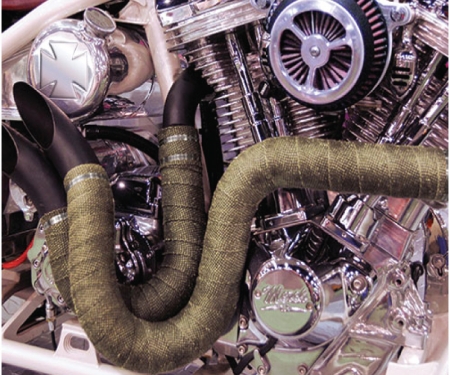

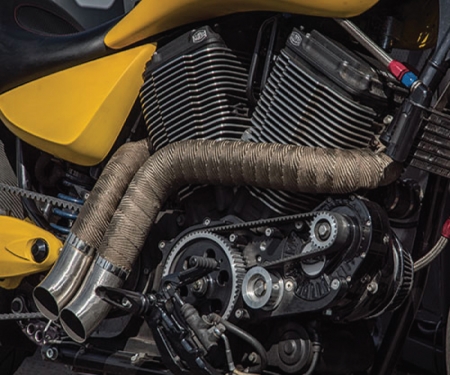

VOLCANO WRAP is made from continuous filament basalt fiber and is engineered for protection from temperatures 1,500°F. When wrapped around exhaust pipes, the unique construction creates attractive and durable finished product. Volcano Wrap is 25% stronger and provides a 300°F increase in temperature protection over fiberglass wrap. The product is very rugged, and will not exhibit any vibration damage over long periods of use. The volcanic rock fiber wrap is easy to install and will provide years of protection and good looks.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Widths | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |||
| Bulk 1 | Bulk 2 | Bulk 3 | Bulk 4 | ||||||
| 1" 2" | VWN1.00BA VWN2.00BA | 1/16" 1/16" | 1" 2" | 100' 100' | 50' 50' | 25' 25' | 15' 15' | BA & BK BA & BK | 1.70 3.20 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .0625 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -436°F/-260°C |
| Maximum Continuous (MIL-I-23053) | 1,292°F/700°C |
| Melt (ASTM D-2117) | 2,642°F/1,450°C |
| Other Information | |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
VOLCANO WRAP is made from continuous filament basalt fiber and is engineered for protection from temperatures 1,500°F. When wrapped around exhaust pipes, the unique construction creates attractive and durable finished product. Volcano Wrap is 25% stronger and provides a 300°F increase in temperature protection over fiberglass wrap. The product is very rugged, and will not exhibit any vibration damage over long periods of use. The volcanic rock fiber wrap is easy to install and will provide years of protection and good looks.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Widths | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |||
| Bulk 1 | Bulk 2 | Bulk 3 | Bulk 4 | ||||||
| 1" 2" | VWN1.00BA VWN2.00BA | 1/16" 1/16" | 1" 2" | 100' 100' | 50' 50' | 25' 25' | 15' 15' | BA & BK BA & BK | 1.70 3.20 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .0625 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -436°F/-260°C |
| Maximum Continuous (MIL-I-23053) | 1,292°F/700°C |
| Melt (ASTM D-2117) | 2,642°F/1,450°C |
| Other Information | |
| UL/CSA | No |
