Techflex® Flexglass Electrical Insulation Sleeving - Vinyl Coated
(8000 Volts) - Rated Up to 266°F MIL-I-DTL-003190/2
0.0 / 5
Vinyl Flexglass Sleeving Features
- Rated up to 266°F
- Cut-through & Abrasion Resistant
- MIL-I-DTL-003190/2
- Excellent Low Temp Flexibility
Inside Diameters Are Measured as Round Not Flat

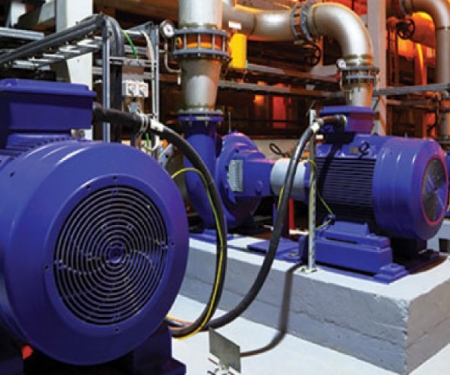

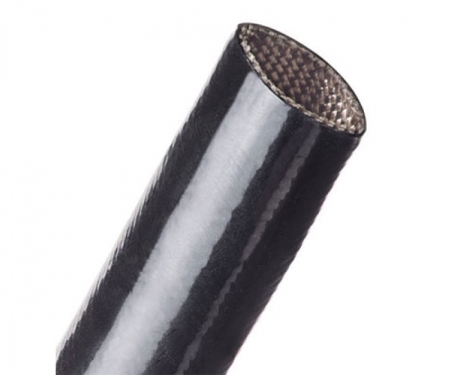

Vinyl Flex Glass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a firmly bonded plasticized polyvinylchloride film. This durable sleeving will withstand mechanical stress and holds its dielectric strength on all bends. Vinyl Flex Glass is used for supplementary insulation on a transformer, motor, generator, and resistor leads. Also, other applications include television, radio, and other electric circuits where they can be pushed back to permit soldering. Highly resistant to acids and solvents, and will withstand tough assembly handling. The Vinyl compound is designed for continuous operation at 130°C temperatures while providing excellent abrasion and cut-through resistance.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Diam. | Part # | Grade | Part # | Grade | Spool Put-Ups | Colors | |
| Bulk | Shop | |||||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" | VGA0.38 VGA0.44 VGA0.50 VGA0.63 VGA0.75 VGA0.88 VGA1.00 | A A A A A A A | VGC0.38 VGC0.44 VGC0.50 VGC0.63 VGC0.75 VGC0.88 VGC1.00 | C C C C C C C | 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' | 5 5 3* 3* 3* 3* 3* |
* Available Colors Include: Black(BK), Yellow(YL), and White(WH).
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Vinyl Flex Glass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a firmly bonded plasticized polyvinylchloride film. This durable sleeving will withstand mechanical stress and holds its dielectric strength on all bends. Vinyl Flex Glass is used for supplementary insulation on a transformer, motor, generator, and resistor leads. Also, other applications include television, radio, and other electric circuits where they can be pushed back to permit soldering. Highly resistant to acids and solvents, and will withstand tough assembly handling. The Vinyl compound is designed for continuous operation at 130°C temperatures while providing excellent abrasion and cut-through resistance.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Diam. | Part # | Grade | Part # | Grade | Spool Put-Ups | Colors | |
| Bulk | Shop | |||||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" | VGA0.38 VGA0.44 VGA0.50 VGA0.63 VGA0.75 VGA0.88 VGA1.00 | A A A A A A A | VGC0.38 VGC0.44 VGC0.50 VGC0.63 VGC0.75 VGC0.88 VGC1.00 | C C C C C C C | 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' | 5 5 3* 3* 3* 3* 3* |
* Available Colors Include: Black(BK), Yellow(YL), and White(WH).
