Vestil® Steel Pallet Trucks

With Hand Brake and Dead man Hand Brake option

0.0 / 5

(0)

Vestil® Steel Pallet Trucks Features

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
See More Technical Specifications

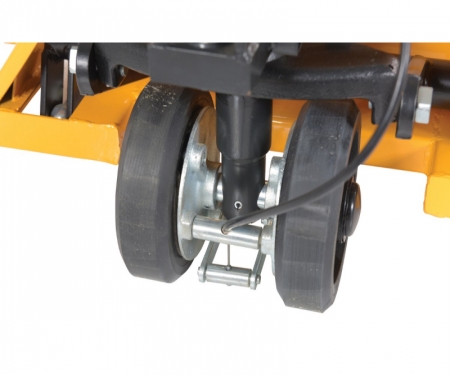

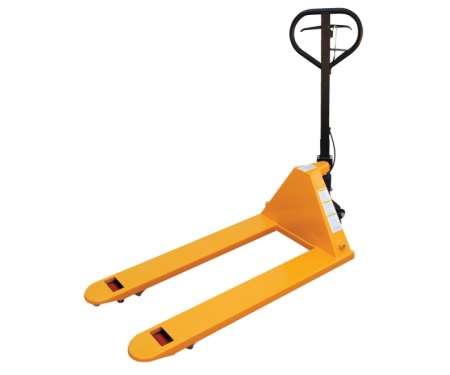

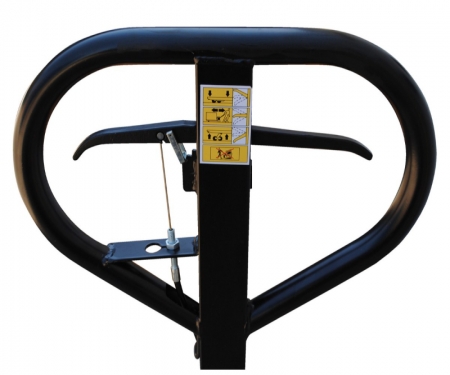

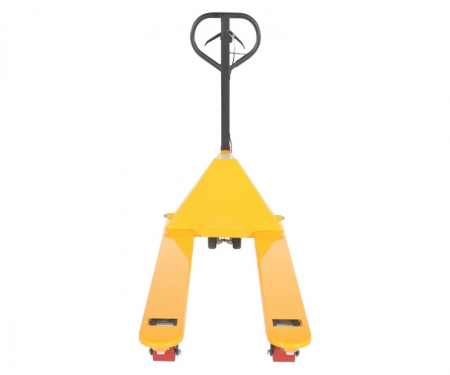

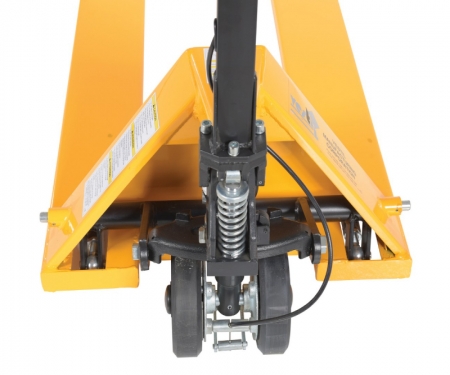

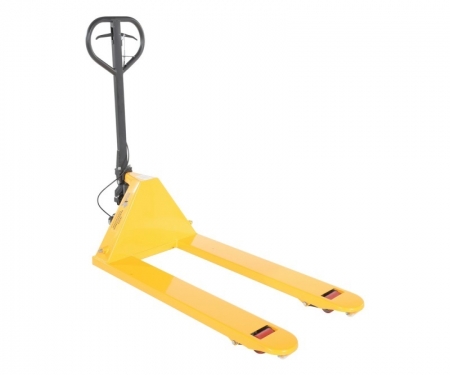

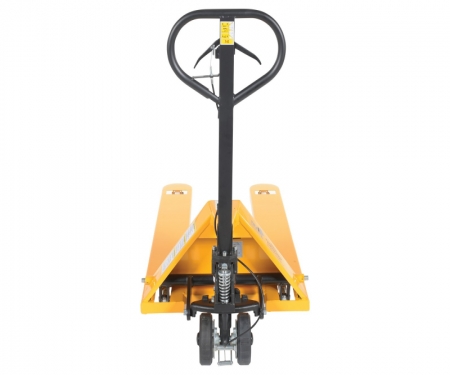

Pallet Truck with Hand Brake, model PM5-2748-HB, allows you to depress the hand brake to slow down or stop truck. The "Dead Man" Hand Brake Pallet Truck, model PM5-2748-DMHB, only moves when you depress the hand brake. Retrofit kit not available. Individual fork width is 7".

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

TECHNICAL DATA – APPROVAL DRAWINGS

Click on the Part Number in the following table to see details

PM5-2748-DMHB



SPECIFICATIONS

Item Weight (lbs.): 188

Overall Dimensions: 27"W x 66"L x 49"H

Color: Yellow

Uniform Capacity (lb.): 5500

Overall Fork Width (in.): 27

Overall Fork Length (in.): 48

Lowered Height (in.): 2-7/8

Raised Height (in.): 7-3/4

Individual Fork Width (in.): 7

Steer Caster Material: Poly-On-Steel

Steer Caster Diameter (in.): 7

Steer Caster Width (in.): 2

Load Roller Material: Polyurethane

Load Roller Diameter (in.): 4

Load Roller Width (in.): 3

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

.



Product Details

Pallet Truck with Hand Brake, model PM5-2748-HB, allows you to depress the hand brake to slow down or stop truck. The "Dead Man" Hand Brake Pallet Truck, model PM5-2748-DMHB, only moves when you depress the hand brake. Retrofit kit not available. Individual fork width is 7".

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

TECHNICAL DATA – APPROVAL DRAWINGS

Click on the Part Number in the following table to see details

PM5-2748-DMHB



SPECIFICATIONS

Item Weight (lbs.): 188

Overall Dimensions: 27"W x 66"L x 49"H

Color: Yellow

Uniform Capacity (lb.): 5500

Overall Fork Width (in.): 27

Overall Fork Length (in.): 48

Lowered Height (in.): 2-7/8

Raised Height (in.): 7-3/4

Individual Fork Width (in.): 7

Steer Caster Material: Poly-On-Steel

Steer Caster Diameter (in.): 7

Steer Caster Width (in.): 2

Load Roller Material: Polyurethane

Load Roller Diameter (in.): 4

Load Roller Width (in.): 3
