Techflex® Vectran® Braided Cable Sleeving
A Unique Combination of Properties for Demanding Applications
0.0 / 5
Vectran® Braided Sleeving Features
- Self-Extinguishing
- Melt Temp: 625°F/330°C
- Medium Outgassing
- High Abrasion Resistance
- Resists Common Chemicals & Solvents
- Recommended Cutting With Kevlar Shears
Inside Diameters Are Measured as Round Not Flat

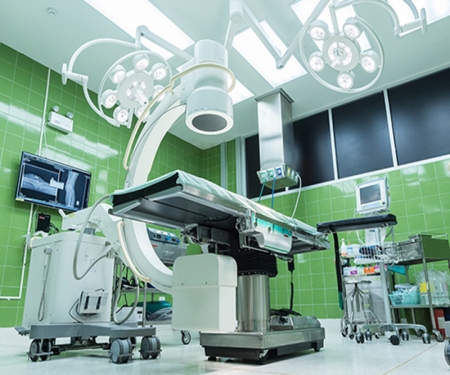

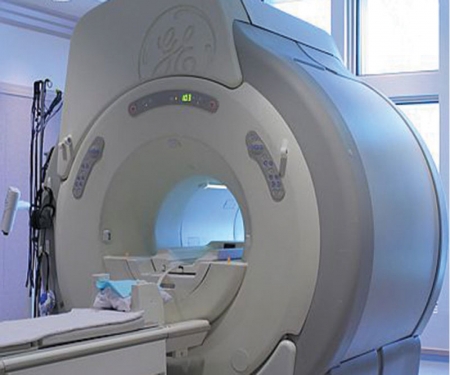

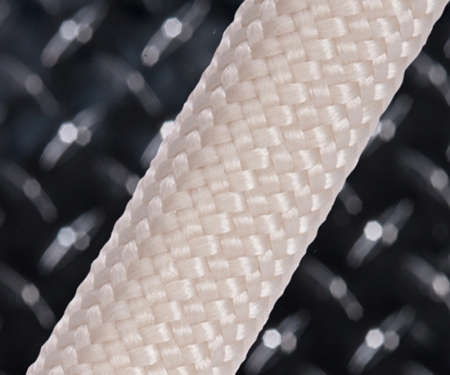

Vectran® is a high-performance multifilament yarn spun from liquid crystal polymer. Pound for pound Vectran fiber is five times stronger than steel and ten times stronger than aluminum, which makes it the material of choice in demanding applications where other fibers fail to meet performance requirements. Vectran braided sleeving also demonstrates minimal moisture absorption, outstanding cut and abrasion resistance, high dielectric strength, and melt temperature of 625°F. Vectran® sleeving is used in a wide range of applications, including aerospace, high tech research, industrial protection, marine and medical uses. Vectran® sleeving is available in Natural color. Vectran® is a registered trademark of the Kuraray Co., LTD.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" | VEN0.13NT VEN0.25NT | 7/64" 13/64" | 9/64" 19/64" | 500' 500' | 100' 100' | 1 1 | 0.36 0.72 |
| Physical Properties | |
| Flammability Rating | Self-Extinguishing |
| Recommended Cutting | Kevlar Shears |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 20 |
| Abrasion Resistance | high |
| Specific Gravity | 1.4 |
| Moisture Absorption % (ASTM D-570) | <.005 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .21 |
| CVCM | .00 |
| WVR | 1.76 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | >30 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Chlorinated Solvents | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 625°F/330°C |
| Other Information | |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Vectran® is a high-performance multifilament yarn spun from liquid crystal polymer. Pound for pound Vectran fiber is five times stronger than steel and ten times stronger than aluminum, which makes it the material of choice in demanding applications where other fibers fail to meet performance requirements. Vectran braided sleeving also demonstrates minimal moisture absorption, outstanding cut and abrasion resistance, high dielectric strength, and melt temperature of 625°F. Vectran® sleeving is used in a wide range of applications, including aerospace, high tech research, industrial protection, marine and medical uses. Vectran® sleeving is available in Natural color. Vectran® is a registered trademark of the Kuraray Co., LTD.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" | VEN0.13NT VEN0.25NT | 7/64" 13/64" | 9/64" 19/64" | 500' 500' | 100' 100' | 1 1 | 0.36 0.72 |
| Physical Properties | |
| Flammability Rating | Self-Extinguishing |
| Recommended Cutting | Kevlar Shears |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 20 |
| Abrasion Resistance | high |
| Specific Gravity | 1.4 |
| Moisture Absorption % (ASTM D-570) | <.005 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .21 |
| CVCM | .00 |
| WVR | 1.76 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | >30 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Chlorinated Solvents | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 625°F/330°C |
| Other Information | |
| UL/CSA | Yes |
