Ultratech® Gravel & Sand Bags
Heavy-Duty Gravel & Sand Bags Provide Quick & Easy Stormwater Control
0.0 / 5
Ultratech® Gravel & Sand Bag Features
- Gravel bags are a basic BMP (Best Management Practice) used to meet regulatory requirements for stormwater and erosion control.
- The sizes are industry standard and allow the user to fill them up with as much or as little gravel (not included) as the application requires.

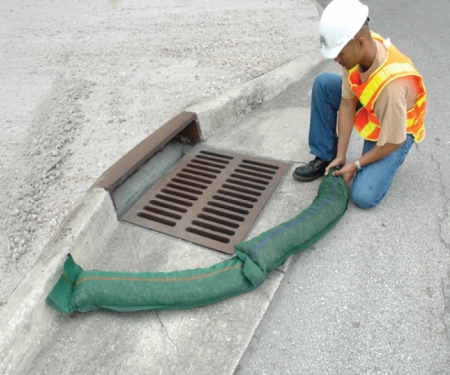

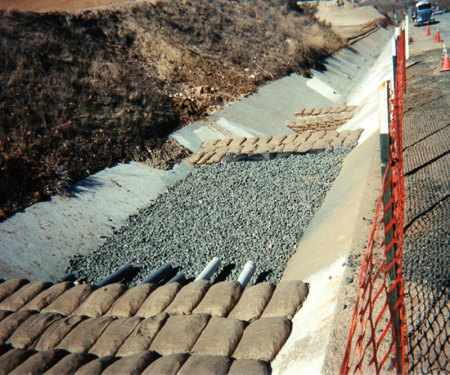

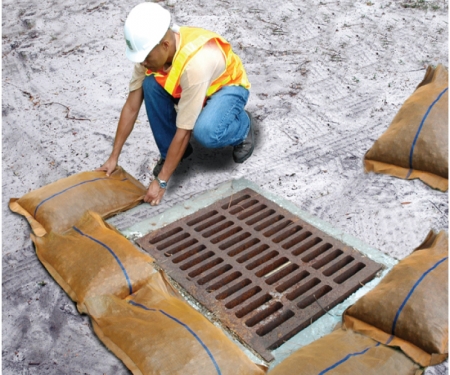

- Different sizes lend themselves to different applications; from drain protection to erosion control at construction sites.
- Made of a very high-quality polymer material that is woven into shape - eliminates the flaws and failures of sewn edges.
- High UV rating allows multi-year life in sun and elements.
- Rugged material and construction can, in most instances, withstand being driven-over, a typical problem with lesser bags.
Product Details
Ultratech® Gravel & Sand Bags are heavy-duty bags that provide quick and easy sediment and erosion control.
Though some may consider gravel bags to be "old school", they remain an excellent solution for many situations. UltraTech's bags are made from heavy-duty geotextile material with a high UV rating so they're designed for years of outdoor exposure. All Ultra-Gravel Bags are sold empty so they're easy to get onsite. Fill them with sand, gravel or other aggregates to create quick and versatile erosion control.
- Gravel bags are a basic BMP (Best Management Practice) used to meet regulatory requirements for stormwater and erosion control.
- The sizes are industry standard and allow the user to fill them up with as much or as little gravel (not included) as the application requires.
- Different sizes lend themselves to different applications; from drain protection to erosion control at construction sites.
- Made of a very high-quality polymer material that is woven into shape - eliminates the flaws and failures of sewn edges.
- High UV rating allows multi-year life in sun and elements.
- Rugged material and construction can, in most instances, withstand being driven-over, a typical problem with lesser bags.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Property | Test Method | Woven (Typical:) |
Fabric Weight | ASTM D-5261 | 5 oz./sq./yd. Wide |
Width Tensile (MD/TD) | ASTM D-4595 | 2400/1650 lbs |
Grab Tensile (MD/TD) | ASTM D-4632 | 365/200 lbs. |
Trapezoid Tear (MD/TD) | ASTM D-4533 | 115/75 lbs. |
Puncture | ASTM D-4833 | 90 lbs. |
Apparent Opening Size | ASTM D-4751 | 40 US Sieve (0.425mm). |
Mullen Burst | ASTM D-3786 | 450 psi. |
Permittivity | ASTM D-4491 | 2.1 sec-¹ |
Permeability | ASTM D-4491 | 0.14 cm/sec |
Water Flow | ASTM D-4491 | 145 gal/min per sq. ft. |
UV Resistance (500hrs) | ASTM D-4355 | >90% |
Material | High Density Polyethylene (HDPE) |
Product Manuals
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Is there any gravel or aggregate inside of the Ultra-Gravel Bags?
- No, all Ultra-Gravel Bags are shipped empty.
Do the Ultra-Gravel Bags have any protection against ultra-violet (UV) rays?
- Yes, Ultra-Gravel Bags have a high UV rating and are designed for years of outdoor exposure (Actual life span of the Bags varies and will depend on several factors including application, location and exposure to the elements).
What is the apparent opening size of the Gravel Bags?
- The apparent opening size (AOS) of the Ultra-Gravel Bags is 40 US Sieve (0.425mm).
What is the flow rate of the Ultra-Gravel Bags?
- The flow rate of the Gravel Bags will vary depending on the size and amount of aggregate inside. However, the material itself has a flow rate of 145 gal/min per sq. ft.
