Kable Kontrol® Twist on Wire Connector Caps
Winged & Non-Winged Wire Connector | 100 Pcs Pack
0.0 / 5
Kable Kontrol® Twist on Wire Connector Caps Features
- SOLD AS: 100 Pcs/Pack
- UL Listed – File# E116091
- Spring design provided a more secure connection
- Material: Tough thermoplastic, UL 94V-2 flame-retardant shell
- The rigid plastic outer shell is flame retardant
- Operating Temperature: 105℃ (221ºF)
- Strip wires before application.
- Steel Square-Cut Spring
- Non-Winged Fixed Spring Features
- Easy recognition of wire ranges with 5 distinct colors
- SCROLL TO SEE EXACT SIZES & MEASUREMENTS BELOW
These electrical Twist on Wire Connector Caps allow for simple and efficient connections of multiple wires with varying sizes. CableTiesAndMore now carries two varieties of wire connectors, non-winged fixed spring and winged free spring. To use, simply remove the insulation from the wires near the connection end. Next, twist the wires together, though this isn't required if you're using the winged, free spring connectors. Then screw on the connector over the ends of the exposed wires. We provide an array of different sized connectors to meet your wiring needs. Our products are color-coded to aid in identifying the gauge of wire that it will effectively accept.
A cone shaped, plated steel spring conforms to the inside contour of the insulating shell, which supports the spring as the conductor is driven up into the cone. Requiring no pre-twisting, the wires are automatically twisted together for a secure connection and maximum contact. Fixed spring wire connectors may be used to make branch circuit or fixture wire connections on numerous combinations of solid and/or stranded wire.
A square wire, coiled spring expands freely within the tough plastic shell and can accommodate a wide range of wire combinations. The angled edges of the spring attaches to the conductor as the connector is twisted on for an easily secured joint. The spring applies even pressure over the entire contact area, and provides a low resistance connection and mechanical strength against pull and vibration.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
 | ||||||||||||

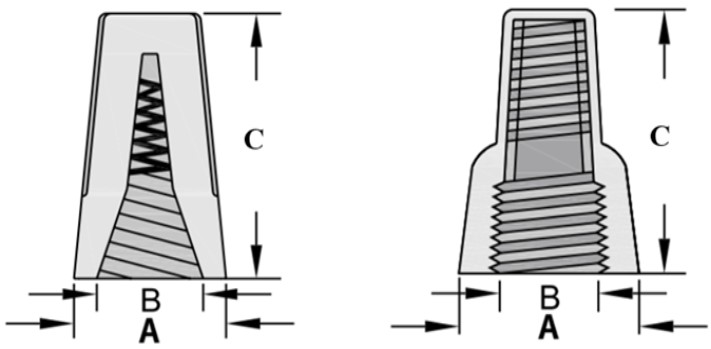

| Part Number | B | A | C | Type | Wire Combination | Single Wire Size | Color | Voltage | Certifications | UL Listed | Listing Part # | |
| AWG | Sq | |||||||||||
| WNUT-71-GY-100 | 6.5mm | 8.6mm | 15.2mm | Non-Winged | Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22 | Max. 1 #1.25 w/1 #0.75 w/1 #0.5 Min. 2 #0.5 | Min. #22 Max. #16 | Grey | Rated at 300 volt max. for building wiring | RoHS | File# E116091 | SW71BH |
| WNUT-72-BL-100 | 7.1mm | 9.9mm | 17.7mm | Non-Winged | Max. 3#16 Min. 2#22 | Max. 3#1.25 Min. 2#0.5 | Min. #22 Max. #16 | Blue | Rated at 300 volt max. for building wiring | RoHS | File# E116091 | SW72 BH |
| WNUT-73-OR-100 | 9.7mm | 12.7mm | 22mm | Non-Winged | Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20 | Max. 4 #1.25 w/1 #0.5 Min. 1 #0.75 w/1 #0.5 | Min. #20 Max. #16 | Orange | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW73 BH |
| WNUT-74-YL-100 | 11mm | 14mm | 24.6mm | Non-Winged | Max. 2 #12 w/2 #14 Min. 3 #20 Sol | Max. 2 #3.5 w/2 #2.0 Min. 3 #0.5 Sol | Min. #20 Max. #12 | Yellow | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW74 BH |
| WNUT-76-RD-100 | 13.1mm | 16.3mm | 26.5mm | Non-Winged | Max. 2 #10 Sol w/2 #12 Str Min. 3#18 | Max. 2 #5.5 Sol w/2 #3.5 Str Min. 3 #0.75 | Min. #18 Max. #10 | Red | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW76 BH |
| WWNUT-11- YL-100 | 9.8mm | 18.2mm | 25.8mm | Winged | Max. 3 #12 Min. 2 #18 | Max. 3 #3.5 Min. 2 #0.75 | Min. #18 Max. #12 | Yellow | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY11H |
| WWNUT-12- RD-100 | 13.0mm | 23.0mm | 31.8mm | Winged | Max. 2 #8 Min. 4 #22 | Max. 2 #8 Min. 4 #0.5 | Min. #22 Max. #8 | Red | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY12H |
| WWNUT-13- GY-100 | 14.9mm | 25.5mm | 33.3mm | Winged | Max. 3 #10 Min. 3 #14 w/1 #18 | Max. 3 #5.5 Min. 3 #2.0 w/1 #0.75 | Min. #18 Max. #10 | Grey | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY13H |
| WWNUT-14- BL-100 | 17.8mm | 31.8mm | 40.0mm | Winged | Max. 3 #8 w/1 #12 Min. 3 #12 | Max. 3 #8 w/1 #3.5 Min. 3 #3.5 | Min. #12 Max. #8 | Blue | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY14H |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
These electrical Twist on Wire Connector Caps allow for simple and efficient connections of multiple wires with varying sizes. CableTiesAndMore now carries two varieties of wire connectors, non-winged fixed spring and winged free spring. To use, simply remove the insulation from the wires near the connection end. Next, twist the wires together, though this isn't required if you're using the winged, free spring connectors. Then screw on the connector over the ends of the exposed wires. We provide an array of different sized connectors to meet your wiring needs. Our products are color-coded to aid in identifying the gauge of wire that it will effectively accept.
A cone shaped, plated steel spring conforms to the inside contour of the insulating shell, which supports the spring as the conductor is driven up into the cone. Requiring no pre-twisting, the wires are automatically twisted together for a secure connection and maximum contact. Fixed spring wire connectors may be used to make branch circuit or fixture wire connections on numerous combinations of solid and/or stranded wire.
A square wire, coiled spring expands freely within the tough plastic shell and can accommodate a wide range of wire combinations. The angled edges of the spring attaches to the conductor as the connector is twisted on for an easily secured joint. The spring applies even pressure over the entire contact area, and provides a low resistance connection and mechanical strength against pull and vibration.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| ||||||||||||
| Part Number | B | A | C | Type | Wire Combination | Single Wire Size | Color | Voltage | Certifications | UL Listed | Listing Part # | |
| AWG | Sq | |||||||||||
| WNUT-71-GY-100 | 6.5mm | 8.6mm | 15.2mm | Non-Winged | Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22 | Max. 1 #1.25 w/1 #0.75 w/1 #0.5 Min. 2 #0.5 | Min. #22 Max. #16 | Grey | Rated at 300 volt max. for building wiring | RoHS | File# E116091 | SW71BH |
| WNUT-72-BL-100 | 7.1mm | 9.9mm | 17.7mm | Non-Winged | Max. 3#16 Min. 2#22 | Max. 3#1.25 Min. 2#0.5 | Min. #22 Max. #16 | Blue | Rated at 300 volt max. for building wiring | RoHS | File# E116091 | SW72 BH |
| WNUT-73-OR-100 | 9.7mm | 12.7mm | 22mm | Non-Winged | Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20 | Max. 4 #1.25 w/1 #0.5 Min. 1 #0.75 w/1 #0.5 | Min. #20 Max. #16 | Orange | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW73 BH |
| WNUT-74-YL-100 | 11mm | 14mm | 24.6mm | Non-Winged | Max. 2 #12 w/2 #14 Min. 3 #20 Sol | Max. 2 #3.5 w/2 #2.0 Min. 3 #0.5 Sol | Min. #20 Max. #12 | Yellow | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW74 BH |
| WNUT-76-RD-100 | 13.1mm | 16.3mm | 26.5mm | Non-Winged | Max. 2 #10 Sol w/2 #12 Str Min. 3#18 | Max. 2 #5.5 Sol w/2 #3.5 Str Min. 3 #0.75 | Min. #18 Max. #10 | Red | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SW76 BH |
| WWNUT-11- YL-100 | 9.8mm | 18.2mm | 25.8mm | Winged | Max. 3 #12 Min. 2 #18 | Max. 3 #3.5 Min. 2 #0.75 | Min. #18 Max. #12 | Yellow | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY11H |
| WWNUT-12- RD-100 | 13.0mm | 23.0mm | 31.8mm | Winged | Max. 2 #8 Min. 4 #22 | Max. 2 #8 Min. 4 #0.5 | Min. #22 Max. #8 | Red | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY12H |
| WWNUT-13- GY-100 | 14.9mm | 25.5mm | 33.3mm | Winged | Max. 3 #10 Min. 3 #14 w/1 #18 | Max. 3 #5.5 Min. 3 #2.0 w/1 #0.75 | Min. #18 Max. #10 | Grey | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY13H |
| WWNUT-14- BL-100 | 17.8mm | 31.8mm | 40.0mm | Winged | Max. 3 #8 w/1 #12 Min. 3 #12 | Max. 3 #8 w/1 #3.5 Min. 3 #3.5 | Min. #12 Max. #8 | Blue | Rated at 600 volt max. for building wiring | RoHS | File# E116091 | SWY14H |
