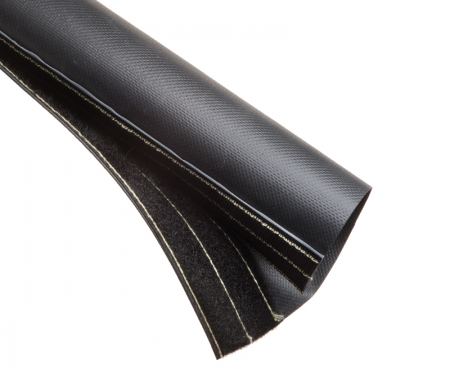

Techflex® Turtle Wrap Heavy Duty Braided Cable Sleeving
Hook & Loop Closure Wrap Around Sleeving - Abrasion & Flame Resistant
0.0 / 5
Turtle Wrap Sleeving Features
- 1,000 Denier Cordura
- Double Coated with Flame Retardant Neoprene
- Secure Hook and Loop Closure
- Repels Liquids
- Resists & Sheds Sparks & Hot Spall
- RoHS Compliant
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat

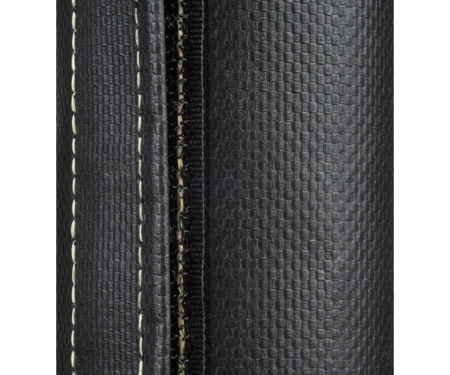

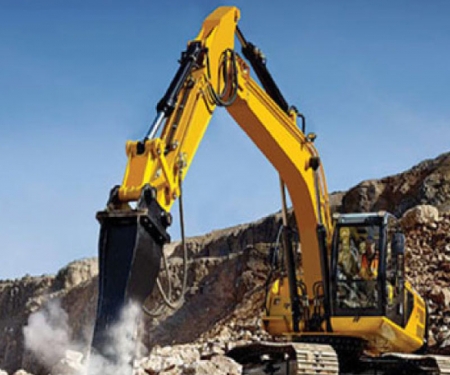

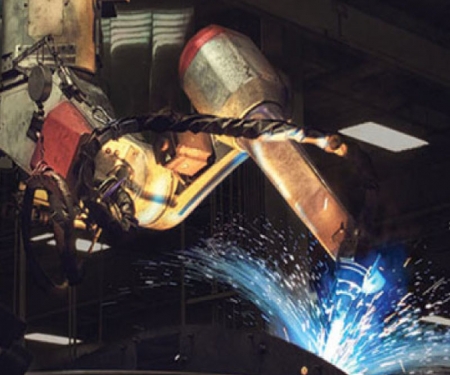

Turtle Wrap heavy duty sleeving is made of 1,000 Denier Cordura, and double coated with proprietary high FR Neoprene. This protection sleeve is used for bundling and wrapping hoses and cables. The reusable sleeve features Mil-Spec extreme Hook & Loop closure which allows installation without disconnecting hoses and can reduce labor time by 70%. Turtle wrap industrial sleeving is an excellent choice for weld cable or welding hose that is often dragged across the floor. This material resists sparks and hot spall. Turtle Wrap is also used in Subsea maintenance where barnacles, sea life and salt water can damage hoses. This sleeve is also heavily used on off-shore oil rigs.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Hook&Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | ||||||
| 1" 1 1/2" 1 3/4" 2" 2 3/8" 2 1/2" 3" 3 1/2" 4" 6" | DWT1.00BK DWT1.50BK DWT1.75BK DWT2.00BK DWT2.38BK DWT2.50BK DWT3.00BK DWT3.50BK DWT4.00BK DWT6.00BK | .02" .02" .02" .02" .02" .02" .02" .02" .02" .02" | 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" | 150' 150' 150' 150' 150' 150' 150' 150' 150' 150' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK | 6.0 7.2 9.29 10.41 11.10 11.6 13.8 15.33 16.8 22.0 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | N/A |
| Flammability Rating | N/A |
| Recommended Cutting | Scissors |
| Colors | 1 |
| Wall Thickness | .02 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.3 |
| Moisture Absorption % (ASTM D-570) | N/A |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 4 |
| Strong Oxidants | 4 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -40°F/-40°C |
| Maximum Continuous (MIL-I-23053) | 250°F/121°C |
| Melt (ASTM D-2117) | 800°F/427°C |
| Other Information | |
| Halogen Free | N/A |
| RoHS | Yes |
| UL/CSA | N/A |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Turtle Wrap heavy duty sleeving is made of 1,000 Denier Cordura, and double coated with proprietary high FR Neoprene. This protection sleeve is used for bundling and wrapping hoses and cables. The reusable sleeve features Mil-Spec extreme Hook & Loop closure which allows installation without disconnecting hoses and can reduce labor time by 70%. Turtle wrap industrial sleeving is an excellent choice for weld cable or welding hose that is often dragged across the floor. This material resists sparks and hot spall. Turtle Wrap is also used in Subsea maintenance where barnacles, sea life and salt water can damage hoses. This sleeve is also heavily used on off-shore oil rigs.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Hook&Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | ||||||
| 1" 1 1/2" 1 3/4" 2" 2 3/8" 2 1/2" 3" 3 1/2" 4" 6" | DWT1.00BK DWT1.50BK DWT1.75BK DWT2.00BK DWT2.38BK DWT2.50BK DWT3.00BK DWT3.50BK DWT4.00BK DWT6.00BK | .02" .02" .02" .02" .02" .02" .02" .02" .02" .02" | 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" | 150' 150' 150' 150' 150' 150' 150' 150' 150' 150' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK | 6.0 7.2 9.29 10.41 11.10 11.6 13.8 15.33 16.8 22.0 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | N/A |
| Flammability Rating | N/A |
| Recommended Cutting | Scissors |
| Colors | 1 |
| Wall Thickness | .02 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.3 |
| Moisture Absorption % (ASTM D-570) | N/A |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 4 |
| Strong Oxidants | 4 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -40°F/-40°C |
| Maximum Continuous (MIL-I-23053) | 250°F/121°C |
| Melt (ASTM D-2117) | 800°F/427°C |
| Other Information | |
| Halogen Free | N/A |
| RoHS | Yes |
| UL/CSA | N/A |
