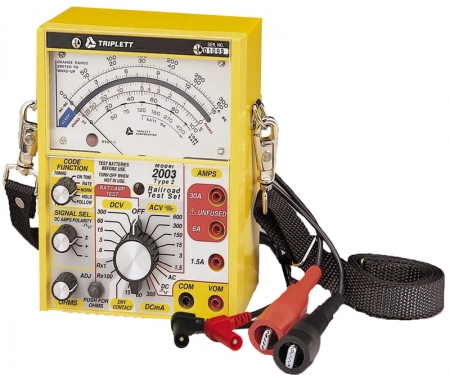

Triplett® 2003 - Railroad Test Set
For Railroads Using 60Hz & 100Hz Coding Systems.
0.0 / 5
Railroad Test Set- Model 2003 Features
- 60Hz and 100Hz Cab Filters
- Auto Polarity in DC functions
- Selectable DC Amp polarity
- Direct measurement of Code Parameters
- Relay Contact On Time (Dry Contact) requires no adjustment
- Ohmmeter Voltage Mode detects either polarity voltage including AC
- Field replaceable protective window
- All Pass position bypasses Cab Filters
Applications
Ideal for the following applications: Rapid Transit, Commuter Trains, Passenger Railroads
The 2000 Series Railroad Testers are designed to perform standard maintenance tasks (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment. The 2000 Series is compatible with older test technologies and offers test features not found on earlier test sets. All 2000 Series Railroad Testers include: test leads, padded water repellent carrying case, shoulder Strap, and batteries.
for railroads using 60Hz and 100Hz coding systems. It features an all pass position that bypasses cab filters.
Product Details
| Specifications | Model 2000 | Model 2001 | Model 2002 | Model 2003 |
| DC Voltage | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V |
| DCV Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| DC Milliamps | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA |
| DC mA Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| DC Amps | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A |
| DCA Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| AC Voltage | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V |
| ACV Accuracy | ±3.0% FS | ±3.0% FS | ±3.0% FS | ±3.0% FS |
| AC Amps | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A |
| ACA Accuracy | ±3.0% FS | ±3.0% FS | ±3.0% FS | ±3.0% FS |
| Cab Filter Response (All AC ranges) | 60Hz: — 100Hz: — 200Hz: — 250Hz: — | 60Hz: — 100Hz: 92 to 100Hz 200Hz: — 250Hz: 245 to 255Hz | 60Hz: — 100Hz: 92 to 100Hz 200Hz: 196 to 204Hz 250Hz: — | 60Hz: 57 to 63Hz 100Hz: 92 to 100Hz 200Hz: — 250Hz: — |
| Code Functions (All AC and DC Ranges) | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö |
| Volt Senese Mode | 15V AC or DC (±20%) | 15V AC or DC (±20%) | 15V AC or DC (±20%) | 15V AC or DC (±20%) |
| Resistance | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length |
| Dry Contact | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA |
| Power | (2) 9V; (1) 1.5V D cell | |||
| Dimensions | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) |
| Weight | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads |
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
