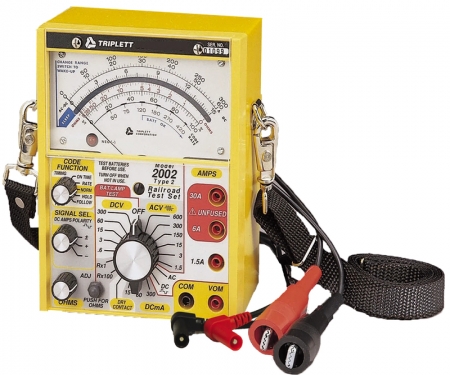

Triplett® 2002 - Railroad Test Set
For Rapid Transit/Commuter Railroads with 100Hz & 200Hz coding systems
0.0 / 5
Triplett® 2002 - Railroad Test Set Features
- 100Hz and 200Hz Cab Filters
- Auto Polarity in DC functions
- Selectable DC Amp polarity
- Direct measurement of Code Parameters
- Relay Contact On-Time (Dry Contact) requires no adjustment
- Ohmmeter Voltage Mode detects either polarity voltage including AC
- Field replaceable protective window
- All Pass position bypasses Cab Filters
Applications
Ideal for the following applications: Rapid Transit, Commuter Trains, Passenger Railroads
The 2000 Series Railroad Testers are designed to perform standard maintenance tasks (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment. The 2000 Series is compatible with older test technologies and offers test features not found on earlier test sets.
This model is designed for rapid transit/commuter type railroads using 100Hz and 200Hz coding systems. It features an all pass position that bypasses cab filters.
Product Details
| Specifications | Model 2000 | Model 2001 | Model 2002 | Model 2003 |
| DC Voltage | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V | 0.6V, 3V, 15V, 60V, 300V |
| DCV Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| DC Milliamps | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA | 16mA, 60mA, 300mA |
| DC mA Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| DC Amps | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A |
| DCA Accuracy | ±1.5% FS | ±1.5% FS | ±1.5% FS | ±1.5% FS |
| AC Voltage | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V | 1.5V, 3V, 15V, 150V, 300V, 600V |
| ACV Accuracy | ±3.0% FS | ±3.0% FS | ±3.0% FS | ±3.0% FS |
| AC Amps | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A | 1.5A, 6A, 30A |
| ACA Accuracy | ±3.0% FS | ±3.0% FS | ±3.0% FS | ±3.0% FS |
| Cab Filter Response (All AC ranges) | 60Hz: — 100Hz: — 200Hz: — 250Hz: — | 60Hz: — 100Hz: 92 to 100Hz 200Hz: — 250Hz: 245 to 255Hz | 60Hz: — 100Hz: 92 to 100Hz 200Hz: 196 to 204Hz 250Hz: — | 60Hz: 57 to 63Hz 100Hz: 92 to 100Hz 200Hz: — 250Hz: — |
| Code Functions (All AC and DC Ranges) | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö | On Time: 3% to 100% (±3% FS) Rate: 30 to 500CPM (±3% FS) Peak Hold: Ö Peak Follow: Ö |
| Volt Senese Mode | 15V AC or DC (±20%) | 15V AC or DC (±20%) | 15V AC or DC (±20%) | 15V AC or DC (±20%) |
| Resistance | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length | Range: R x 1 and R x 100 Center Scale: 5 and 500 ohms Accuracy: ±2% of scale length |
| Dry Contact | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA | Allowable Resistance: 0 to 100 ohms Test Voltage: 7.5 to 15VDC Test Current: less than 1mA |
| Power | (2) 9V; (1) 1.5V D cell | |||
| Dimensions | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) | 5 x 6.5 x 3.2" (127 x 165.1 x 81.3mm) |
| Weight | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads | 4.75 lbs (2.15kg) with case and leads |
