• For the installation and maintenance of surveillance video equipment
• Safe for use with standard-definition analog NTSC and PAL signals, as well as AHD, AHD 2.0, HD-CVI 2.0, HD-CVI 3.0, HD-TVI 2.0, HD-TVI 3.0, IP, H.264 and H.265 encoding
• Test Pan-Tilt-Zoom (PTZ) functions of cameras with the RS485 port, which is also equipped with more than 30 PTZ protocols
• Create an SD or HD analog video test pattern to test cabling, video recorders, and monitors
• Capable of delivering PoE to an IP camera or 12 VDC to analog cameras in order to complete testing
• Perform Ethernet and network tests with Network Sniff, Subnet List, and Ping Test functions
• Determines the condition of RJ45 cable pairs and runs a cable length measurement test with the TDR function
• Built-in digital multimeter
• Audio-in jack can be used to test the audio signal
• Built-in flashlight

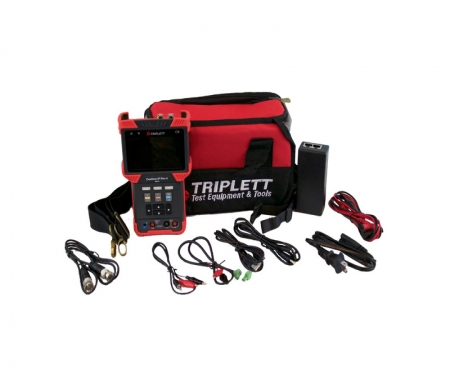

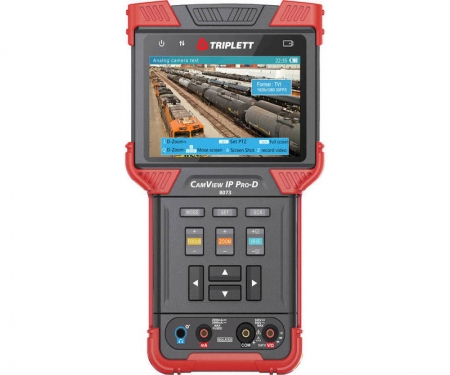

The IP Pro-D (8073) supports H.264 and H.265 IP cameras, as well as NTSC/PAL, AHD 2.0, CVI 3.0, and TVI 3.0 cameras. In addition, the IP Pro-D has a built-in True RMS multimeter that can measure AC/DC Voltage and Current, Resistance, Capacitance, Diode and Continuity tests. All models: work with ONVIF-enabled IP cameras; have a built-in DHCP server so you can set up IP cameras before the network is even wired; provide PoE and external power for the camera (up to 12V, 15W); include a Code Book so you can save usernames and passwords of the cameras you frequently access/maintain; feature a full, flip-out keyboard for quickly entering information; capture images, videos, and camera settings so you can create reports; have TDR cable testing and network testing. All model s come complete with Lanyard, Rechargeable Battery, Tool Bag with Shoulder Strap, POE Power Injector, Network Cable, BNC Cable, RS485 Cable, 12V Power Output Cable, Audio Cable, USB Cable, Screen Protector Film, and Test Leads (Pro-D model only).
