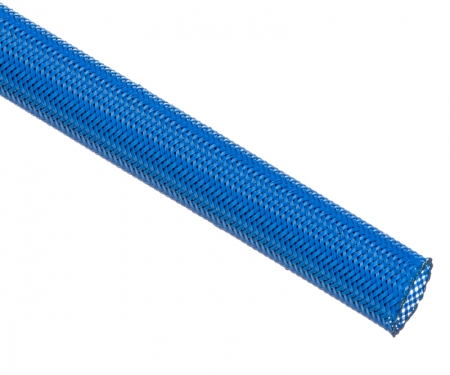

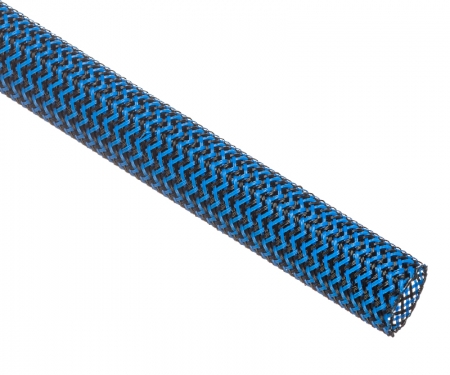

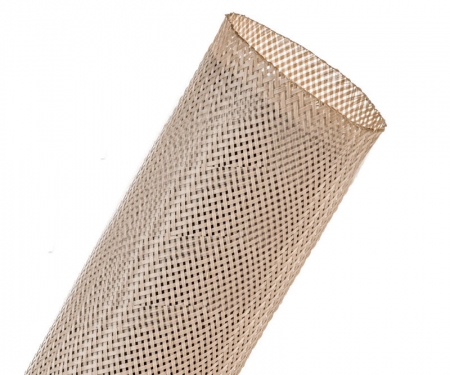

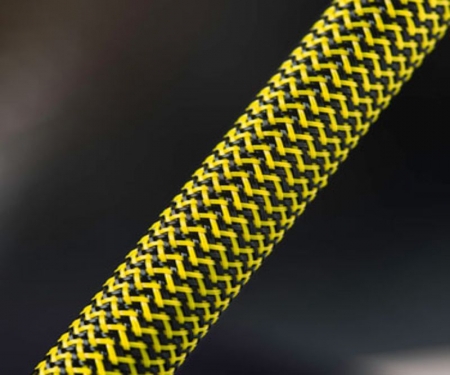

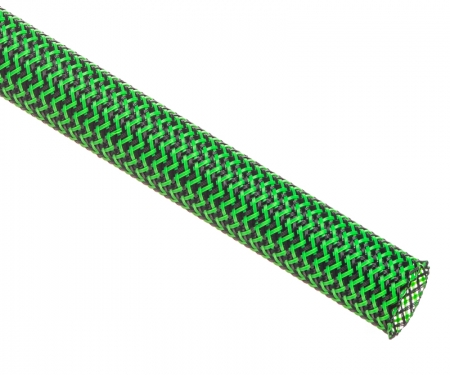

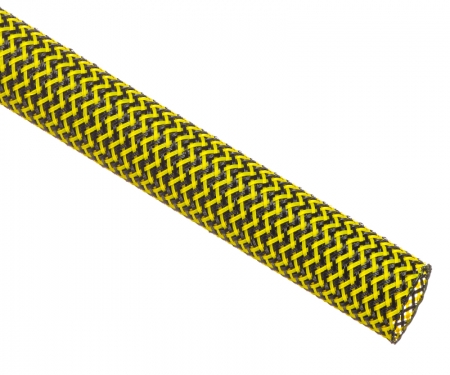

Techflex® Flexo® Tight Weave Braided Cable Sleeving

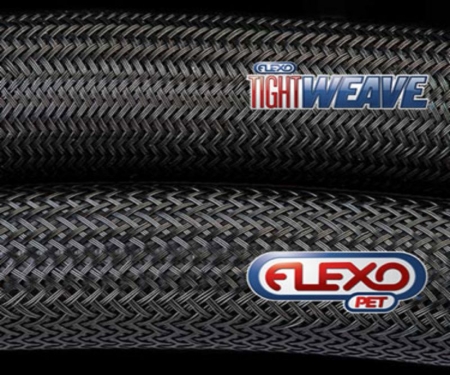

Extra Filament Weave For Extra Coverage & Protection
0.0 / 5
Flexo® Tightweave Braided Sleeving Features
- Economical & Easy to Install
- Resists Gasoline, Engine Chemicals, & Cleaning Solvents
- Complete Coverage
- Added Cut & Abrasion Resistance
- Halogen Free
- Maximum Operating 257°F / 125°C

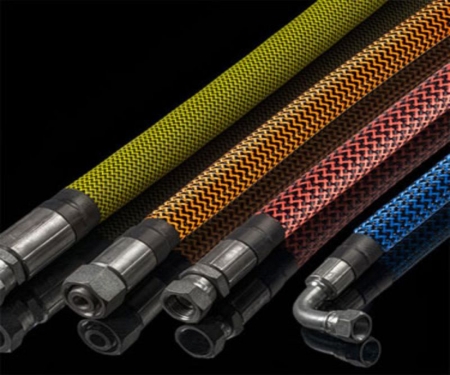

Flexo Tightweave braided sleeving is designed for use in applications where a balance between cost, optimum coverage, and abrasion resistance is required. The tightly woven construction increases the coverage, wear factor and improves security in any type of harness or cable bundle. Flexo Tight weave braided sleeving is braided from 10 mil Polyethylene Terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, resists chemical degradation, UV damage, and abrasion.
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat
Available In 1/8” – 2-1/2” Dia
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" | TWBS113 TWBS025 TWBS031 TWBS050 TWBS075 TWBS100 TWBS125 TWBS150 TWBS175 TWBS200 TWBS250 | 1/16" 11/64" 1/4" 11/32" 1/2" 5/8" 1" 1 1/8" 1 1/2" 1 3/4" 2" | 1/4" 11/32" 3/8" 5/8" 13/16" 1 1/8" 1 11/16" 2" 2 5/8" 3 1/8" 3 1/2" | 1,000' 1,000' 1,000' 500' 250' 250' 250' 200' 200' 200' 100' | 225' 200' 200' 100' 75' 65' 50' 40' 30' 50' 50' | 5 5 5 5 5 5 5 5 5 5 5 | 0.29 0.36 0.58 0.84 1.10 1.23 1.30 1.95 2.60 3.43 3.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 5 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo Tightweave braided sleeving is designed for use in applications where a balance between cost, optimum coverage, and abrasion resistance is required. The tightly woven construction increases the coverage, wear factor and improves security in any type of harness or cable bundle. Flexo Tight weave braided sleeving is braided from 10 mil Polyethylene Terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, resists chemical degradation, UV damage, and abrasion.
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat
Available In 1/8” – 2-1/2” Dia
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" | TWBS113 TWBS025 TWBS031 TWBS050 TWBS075 TWBS100 TWBS125 TWBS150 TWBS175 TWBS200 TWBS250 | 1/16" 11/64" 1/4" 11/32" 1/2" 5/8" 1" 1 1/8" 1 1/2" 1 3/4" 2" | 1/4" 11/32" 3/8" 5/8" 13/16" 1 1/8" 1 11/16" 2" 2 5/8" 3 1/8" 3 1/2" | 1,000' 1,000' 1,000' 500' 250' 250' 250' 200' 200' 200' 100' | 225' 200' 200' 100' 75' 65' 50' 40' 30' 50' 50' | 5 5 5 5 5 5 5 5 5 5 5 | 0.29 0.36 0.58 0.84 1.10 1.23 1.30 1.95 2.60 3.43 3.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 5 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
