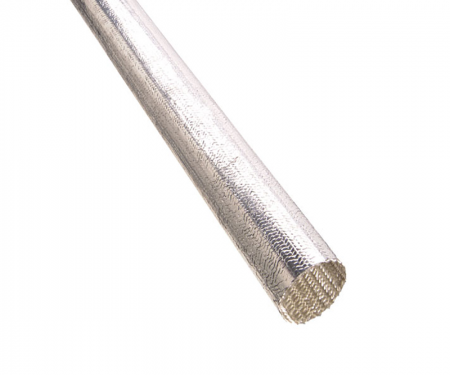

Techflex® ThermaShield® Heat Reflective Tubing
Reflective Aluminized Surface Bonded to Insulating Fiberglass
0.0 / 5
Thermashield Tubing Features
- Insulates Delicate Wires and Components
- Economical & Easy to Install
- Reflects Radiant Heat
- Resists Gasoline and Engine Chemicals
- Operating Temps: -76°F to 392°F (-60°C to 200°C)
- Cuts Easily with Scissors
- RoHs Compliant
- Melt Temp: 2,048°F/1,120°C
Inside Diameters Are Measured as Round Not Flat
Available In 3/8” – 2-1/2” Dia

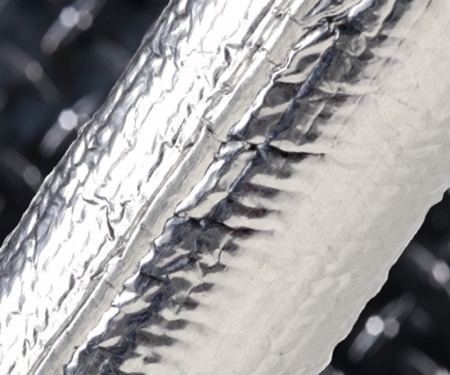

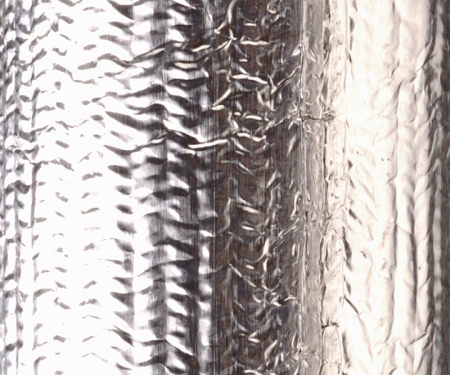

Thermashield Tube creates a buffer between your wires, hoses, cables, and high temperature environments. Engineered by laminating an aluminum heat shield to a layer of strong fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring, and hoses. Thermashield Tubing is designed to easily slip over wire or hoses. The seamless construction provides full coverage and protection. The flexible sleeving cuts with scissors and resists gasoline and engine chemicals.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|
| 3/8" | TTN0.38SV | .025" | 300' | 100' | 1.860 |
| 1/2" | TTN0.50SV | .025" | 250' | 100' | 2.55 |
| 5/8" | TTN0.63SV | .025" | 250' | 100' | 3.00 |
| 3/4" | TTN0.75SV | .025" | 250' | 100' | 3.45 |
| 7/8" | TTN0.88SV | .025" | 250' | 100' | 4.10 |
| 1" | TTN1.00SV | .025" | 250' | 100' | 4.50 |
| 1 1/4" | TTN1.25SV | .025" | 250' | 100' | 5.40 |
| 1 1/2" | TTN1.50SV | .025" | 250' | 100' | 6.20 |
| 1 3/4" | TTN1.75SV | .025" | 100' | 50' | 7.40 |
| 2" | TTN2.00SV | .025" | 100' | 50' | 8.70 |
| 2 1/2" | TTN2.50SV | .025" | 100' | 50' | 10.1 |
| 3" | TTN3.00SV | .025" | 100' | 50' | 19.000 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Thermashield Tube creates a buffer between your wires, hoses, cables, and high temperature environments. Engineered by laminating an aluminum heat shield to a layer of strong fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring, and hoses. Thermashield Tubing is designed to easily slip over wire or hoses. The seamless construction provides full coverage and protection. The flexible sleeving cuts with scissors and resists gasoline and engine chemicals.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|
| 3/8" | TTN0.38SV | .025" | 300' | 100' | 1.860 |
| 1/2" | TTN0.50SV | .025" | 250' | 100' | 2.55 |
| 5/8" | TTN0.63SV | .025" | 250' | 100' | 3.00 |
| 3/4" | TTN0.75SV | .025" | 250' | 100' | 3.45 |
| 7/8" | TTN0.88SV | .025" | 250' | 100' | 4.10 |
| 1" | TTN1.00SV | .025" | 250' | 100' | 4.50 |
| 1 1/4" | TTN1.25SV | .025" | 250' | 100' | 5.40 |
| 1 1/2" | TTN1.50SV | .025" | 250' | 100' | 6.20 |
| 1 3/4" | TTN1.75SV | .025" | 100' | 50' | 7.40 |
| 2" | TTN2.00SV | .025" | 100' | 50' | 8.70 |
| 2 1/2" | TTN2.50SV | .025" | 100' | 50' | 10.1 |
| 3" | TTN3.00SV | .025" | 100' | 50' | 19.000 |
