Panduit® (ETFE) Tefzel Cable Ties
Excellent Chemical Resistant Cable Ties | UL94V-0 Flammability
0.0 / 5
Panduit® Tefzel Zip Ties Features

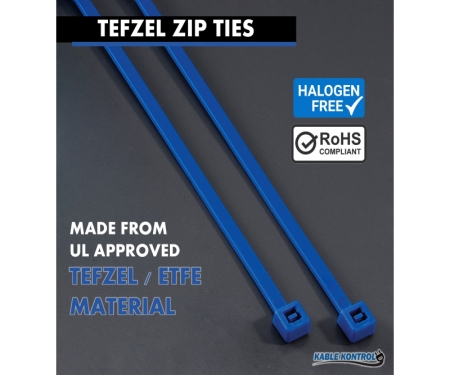

- Material: Ethylene-tetrafluoroethylene (ETFE)
- Highly Resistant To Concentrated Acids
- Good Radiation Resistance Up To 100 Megarads
- RoHS Compliant
- Weather Resistant
- UV Resistant: For indoor or outdoor use

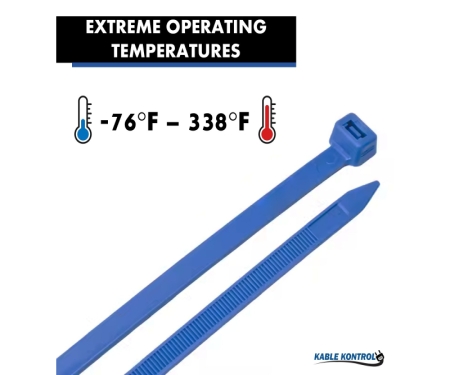

- Max Operating Temperature: 302°F (150°C)
- Meets the requirements of IEEE 383
- ASTM Specifications: UL83, ASTM-D2633, ASTM-D3159 Type 1
- Material Specifications: Military, Federal
- Material Flammability Rating: UL94V-0
- Color: Aqua Blue: Denotes Tefzel Material

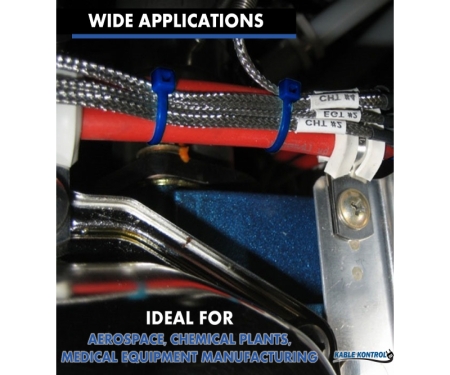

- Ideal for use in nuclear power facilities and chemical processing plants One-piece construction for consistent performance and reliability

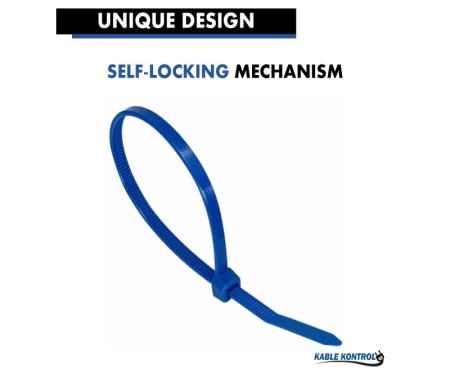

- One-piece construction for consistent performance and reliability

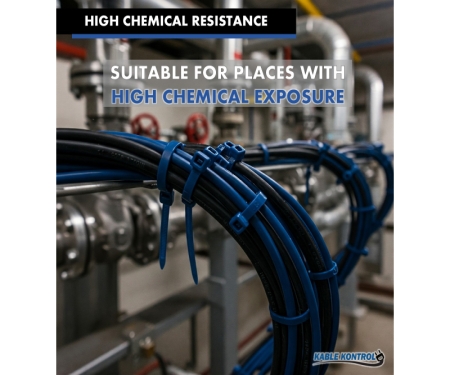

Panduit® Tefzel Cable Ties are the ideal cable ties for chemical processing and nuclear power plants or any environment subject to harsh conditions as they very resilient ties. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. Ideal for applications requiring resistance to environmental stresses such as a chemical attack, gamma radiation, ultraviolet radiation, and extreme high and low temperatures. Tefzel cable ties have exceptional resistance to extreme temperatures, chemicals, and gamma and UV radiation. They are UL 94V-0 rated for excellent flammability rating and low smoke density. They can be used both indoors and outdoors.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Ethylene-tetrafluroethylene (ETFE) Cable Ties Specifications | |||||
| Part # | Length | Width | Max Bundle Diameter | Quantity | Tensile Strength |
| TF04 | 4" | .1" (2.5mm) | 1.3" (33.02mm) | 100 | 18 lb |
| TF07 | 7" | .19"(4.8mm) | 1.8" (45.72mm) | 100 | 50 lb |
| TF11 | 11" | .19"(4.82mm) | 2.99"(76mm) | 100 | 50 lb |
| TF14 | 14" | .19"(4.82mm) | 4"(101.6mm) | 100 | 50 lb |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Panduit® Tefzel Cable Ties are the ideal cable ties for chemical processing and nuclear power plants or any environment subject to harsh conditions as they very resilient ties. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. Ideal for applications requiring resistance to environmental stresses such as a chemical attack, gamma radiation, ultraviolet radiation, and extreme high and low temperatures. Tefzel cable ties have exceptional resistance to extreme temperatures, chemicals, and gamma and UV radiation. They are UL 94V-0 rated for excellent flammability rating and low smoke density. They can be used both indoors and outdoors.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Ethylene-tetrafluroethylene (ETFE) Cable Ties Specifications | |||||
| Part # | Length | Width | Max Bundle Diameter | Quantity | Tensile Strength |
| TF04 | 4" | .1" (2.5mm) | 1.3" (33.02mm) | 100 | 18 lb |
| TF07 | 7" | .19"(4.8mm) | 1.8" (45.72mm) | 100 | 50 lb |
| TF11 | 11" | .19"(4.82mm) | 2.99"(76mm) | 100 | 50 lb |
| TF14 | 14" | .19"(4.82mm) | 4"(101.6mm) | 100 | 50 lb |
