Stainless Steel Braided Cable Sleeving
Expandable - Type 304 Steel - Available In 1/2" - 1-3/4" Diameters
0.0 / 5
Stainless Steel Braided Sleeving Features
- Material: Type 304 Stainless Steel
- Expands Upto 150%
- Cuts Easily With Sheers
- Will Not Discolor or Rust
- Easy to Install
- Great for Exterior Applications
- Resists Abrasion
- Resists Common Chemicals & Solvents
- UV Resistant
- High Melt Point: 1,454ºC/ 2,650ºF
- Halogen Free
- Inside Diameters Are Measured as Round Not Flat

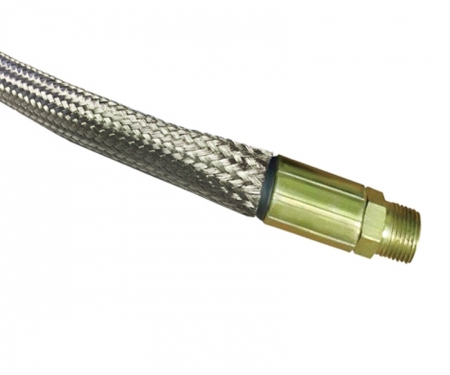

Stainless Steel Braided Sleeving is an ideal and inexpensive alternative protection for hoses against wear, blowout, and corrosion. Stainless braid sleeving is attractive and offers the durable protection of steel. Cut the desired length with shears or serrated scissors. Now you can take any stock or custom hose and slip a length of Stainless Steel Braiding over it. Hide the cut ends with clamps and remarkably have the same look and protection as custom over braided hoses at a fraction of the cost. Available in diameters and expansion range to fit any common hose or application.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 - .016 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .025 - .04 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | Very Low |
| Operating Temperatures | N/A |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Strong Bases | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Oxidants | 2 |
| UV Light | 1 |
| Fungus (ASTM G-21) | 1 |
| Alipahtic Solvents | 1 |
| Weak Bases | 1 |
| Salt Water (O-S-1926) | 2 |
| Lubricating Oil (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Esters/Keytones | 1 |
| Petroleum | 1 |
| Salts | 2 |
| Other Information | |
| RoHS | Yes |
| UL/CSA | No |
| Halogen Free | Yes |
All Custom (Per Foot & 25') Cut Lengths Are
NON-CANCELLABLE & NON-REFUNDABLE
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Stainless Steel Braided Sleeving is an ideal and inexpensive alternative protection for hoses against wear, blowout, and corrosion. Stainless braid sleeving is attractive and offers the durable protection of steel. Cut the desired length with shears or serrated scissors. Now you can take any stock or custom hose and slip a length of Stainless Steel Braiding over it. Hide the cut ends with clamps and remarkably have the same look and protection as custom over braided hoses at a fraction of the cost. Available in diameters and expansion range to fit any common hose or application.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 - .016 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .025 - .04 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | Very Low |
| Operating Temperatures | N/A |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Strong Bases | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Oxidants | 2 |
| UV Light | 1 |
| Fungus (ASTM G-21) | 1 |
| Alipahtic Solvents | 1 |
| Weak Bases | 1 |
| Salt Water (O-S-1926) | 2 |
| Lubricating Oil (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Esters/Keytones | 1 |
| Petroleum | 1 |
| Salts | 2 |
| Other Information | |
| RoHS | Yes |
| UL/CSA | No |
| Halogen Free | Yes |
