Spade Connector - Electrical Wire Terminal - Male - Non Insulated
UL Listed | Budget-friendly | Supports up to 600 volts
0.0 / 5
Spade Connector - Non Insulated Electrical Wire Terminal Features
- UL Listed (E545229): Meets rigorous safety and performance standards.
- Pack Quantity – 100 Pcs

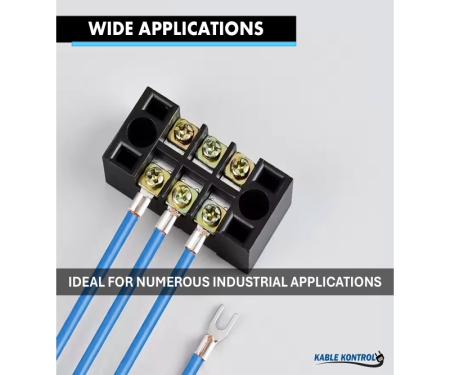

- Versatile Applications: Ideal for automotive, marine, industrial, and residential electrical connections.

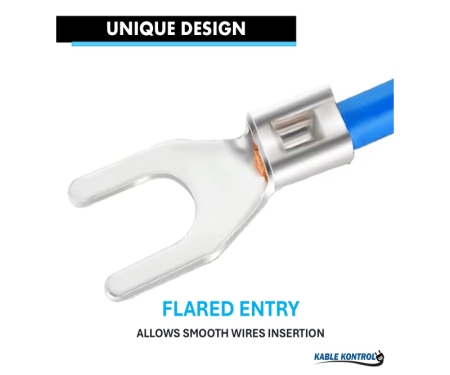

- Open-End Spade Design: Facilitates fast and hassle-free installation and removal.
- Economical Solution: Budget-friendly choice when specialized performance is not necessary.
- Reliable Performance: Supports up to 600 volts, suitable for signs, fixtures, and more.
- Temperature Resilience: Operates effectively at temperatures up to 105°C (221°F).
- Durable Construction: Made from high-quality materials to ensure a long service life.
- Material: Copper Terminal
Achieve secure and dependable electrical connections with Kable Kontrol® Spade Male Connector – Non Insulated Electrical Wire Terminal. These versatile terminals are designed to efficiently mate, connect, or terminate single wires while providing a robust connection to screw or stud-type electrical interfaces. Ideal for automotive, marine, and a wide range of electrical applications, these connectors offer an economical and practical solution where specialized performance or installation characteristics are not required.
With a 600-volt maximum rating and the ability to withstand temperatures up to 105°C (221°F), these connectors are well-suited for signs, fixtures, and general-purpose electrical installations. Their open-end design allows for quick and easy installation and removal, saving time during maintenance and upgrades. UL Listed (E545229) certification ensures compliance with safety and quality standards, making them a trusted choice for professional and DIY projects.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

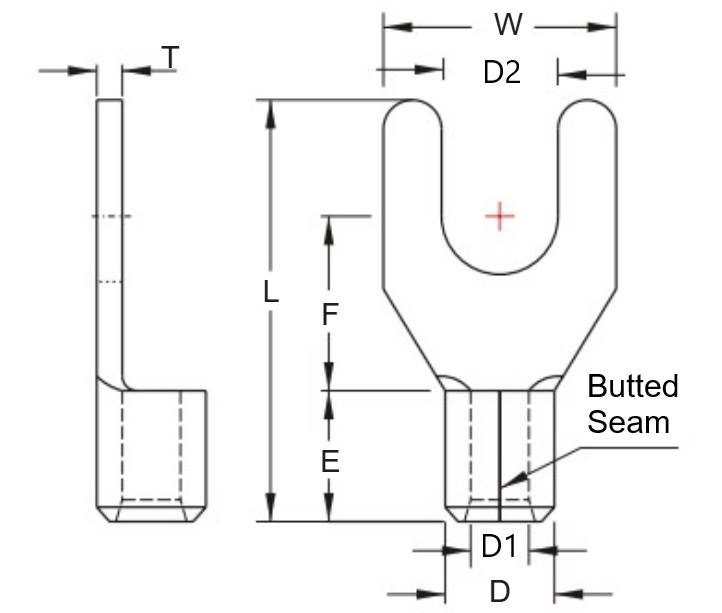

| Part Number | Wire Range (AWG/mm2) | Stud Size | Dimensions | ||||||||||||
| W | F | L | E | D | D1 | T | |||||||||
| STNI-2218-8 | 22 - 18 AWG | #8 | 0.252" (6.4 mm) | 0.256" (6.5 mm) | 0.630" (16 mm) | 0.189" (4.8 mm) | 0.134" (3.4 mm) | 0.067" (1.7 mm) | 0.030" (0.75 mm) | ||||||
| STNI-1614-8 | 16 - 14 AWG | #8 | 0.252" (6.4 mm) | 0.256" (6.5 mm) | 0.630" (16 mm) | 0.189" (4.8 mm) | 0.161" (4.1 mm) | 0.091" (2.3 mm) | 0.031" (0.8 mm) | ||||||
| STNI-1210-8 | 12 - 10 AWG | #8 | 0.327" (8.3 mm) | 0.276" (7 mm) | 0.720" | 0.236" (6 mm) | 0.220" (5.6 mm) | 0.134" (3.4 mm) | 0.039" (1 mm) | ||||||
30 Day Return & Refund Policy
If you are not entirely satisfied with your purchase, we're here to help. You have 30 calendar days to return an item from the date you received it. To be eligible for a return, your item must be unused and in the same condition that you received it. Your item must be in the original packaging.
You are required to have an RMA (Returned Merchandise Authorization) assigned by our customer service team. To apply for an RMA you must fill out our RMA request Form linked here.
Undeliverable Shipments:
- In the event that the customers shipping address provided is deemed undeliverable by the shipping carrier, shipping fee's will not be refunded. Instead it is the customers responsibility to provide a deliverable address.
Defective/damaged products or items incorrectly shipped:
- In the highly unlikely event that a defective product or the another item that was not ordered was sent to you, please contact us via phone or email to schedule a return within 14 days of receiving the product. We may require photos for documentation and to authorize a replacement shipment.
- Defective/damaged products or items incorrectly shipped by Cable Ties And More or by our manufacturers, will be re-shipped at our expense. Additionally, return shipping expense of incorrect or defective product will be at our expense. We will provide you with a return shipping label with detailed shipping instructions.
Refunds
Once we receive your item, we will inspect it and we will immediately notify you on the status of your refund after inspecting the item. If your return is approved, we will initiate a refund to your credit card (or original method of payment). You will receive the credit within 48 hours after product condition is verified.
Shipping Fees
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund. For additional information in this section, create your own Return & Refund Policy.
Contact Us
If you have any questions on how to return your item to us, contact us using our Email Form Here… Or call during our business working hours at 1-877-284-7760
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Achieve secure and dependable electrical connections with Kable Kontrol® Spade Male Connector – Non Insulated Electrical Wire Terminal. These versatile terminals are designed to efficiently mate, connect, or terminate single wires while providing a robust connection to screw or stud-type electrical interfaces. Ideal for automotive, marine, and a wide range of electrical applications, these connectors offer an economical and practical solution where specialized performance or installation characteristics are not required.
With a 600-volt maximum rating and the ability to withstand temperatures up to 105°C (221°F), these connectors are well-suited for signs, fixtures, and general-purpose electrical installations. Their open-end design allows for quick and easy installation and removal, saving time during maintenance and upgrades. UL Listed (E545229) certification ensures compliance with safety and quality standards, making them a trusted choice for professional and DIY projects.

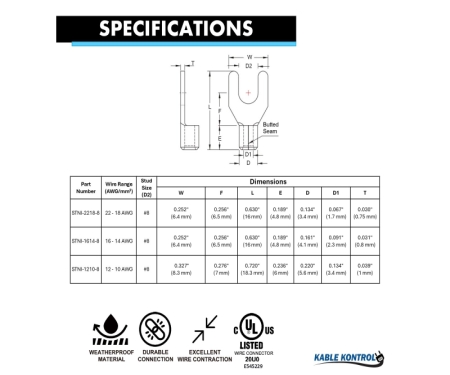

Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Wire Range (AWG/mm2) | Stud Size | Dimensions | ||||||||||||
| W | F | L | E | D | D1 | T | |||||||||
| STNI-2218-8 | 22 - 18 AWG | #8 | 0.252" (6.4 mm) | 0.256" (6.5 mm) | 0.630" (16 mm) | 0.189" (4.8 mm) | 0.134" (3.4 mm) | 0.067" (1.7 mm) | 0.030" (0.75 mm) | ||||||
| STNI-1614-8 | 16 - 14 AWG | #8 | 0.252" (6.4 mm) | 0.256" (6.5 mm) | 0.630" (16 mm) | 0.189" (4.8 mm) | 0.161" (4.1 mm) | 0.091" (2.3 mm) | 0.031" (0.8 mm) | ||||||
| STNI-1210-8 | 12 - 10 AWG | #8 | 0.327" (8.3 mm) | 0.276" (7 mm) | 0.720" | 0.236" (6 mm) | 0.220" (5.6 mm) | 0.134" (3.4 mm) | 0.039" (1 mm) | ||||||
