Techflex® Flexo® Silica Braided High Temp Sleeving
Easy Slip On Installation; Protects up to 1,800°F
0.0 / 5
Braided Silica Sleeving Features
- Operating Temperature Range: Maximum Continuous(Mil-I-23053) 1800°F / 982°C.
- 60 Mil Wall Thickness Provides Enhanced Thermal Insulation
- Resists Common Chemicals & Solvents
- Extremely Abrasion and Cut Resistant
- Easy to Install
- High Temperature Resistance

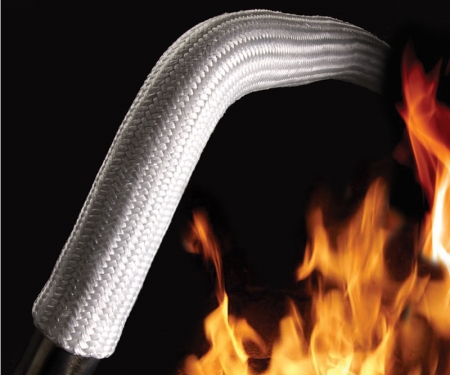

- Ideal for high temperature exhaust and pipes
- Excellent Low Temp Flexibility
- Melt Temp(ASTM D-2117) 3000°F / 1649°C.
- Note: Measurements are listed as inside diameter.

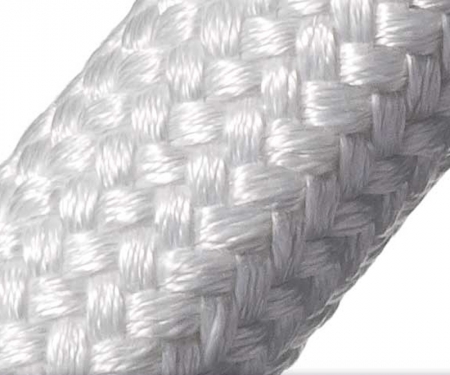

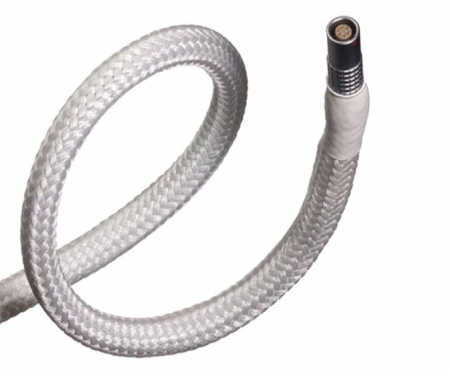

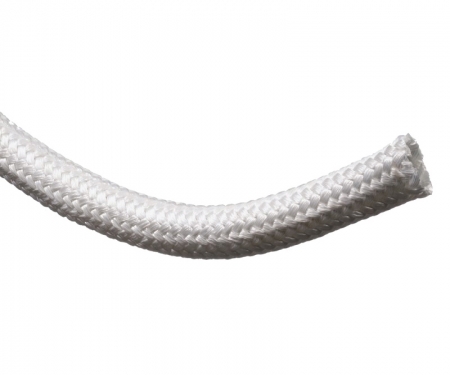

A densely woven Silica Sleeve is ideal for the protection of delicate components and personnel from exposure to high-temperature exhausts and pipes. Silica Sleeve is braided into a strong and flexible sleeve from silica yarns. The thick 60 mil walls of this sleeving provide enhanced thermal protection up to 1,800°F. This product cuts easily with scissors or shears and expands to allow easy installation over water cooling hoses, hydraulic hoses, and electrical cables. Also provides great insulation for exhaust systems.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 1" 1 1/2" 2" 3" 4" 5" 6" | SLN0.25NT SLN0.50NT SLN1.00NT SLN1.50NT SLN2.00NT SLN3.00NT SLN4.00NT SLN5.00NT SLN6.00NT | .060" .060" .060" .060" .060" .060" .060" .060" .060" | 1/4" 1/2" 3/4" 1" 1 1/4" 2 1/2" 3 1/2" 4 1/2" 5 1/2" | 1/2" 5/8" 1 5/32" 1 1/2" 2 3/16" 3 1/2" 4 1/2" 5 1/2" 6 1/2" | 100' 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 25' 25' 25' 25' 25' | 2.6 5.0 6.1 10.0 9.0 11.9 14.8 16.5 17.7 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .06 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | Medium |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Maximum Continuous (MIL-I-23053) | 1,800°F/982°C |
| Melt (ASTM D-2117) | 3,000°F/1,649°C |
| Other Information | |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
A densely woven Silica Sleeve is ideal for the protection of delicate components and personnel from exposure to high-temperature exhausts and pipes. Silica Sleeve is braided into a strong and flexible sleeve from silica yarns. The thick 60 mil walls of this sleeving provide enhanced thermal protection up to 1,800°F. This product cuts easily with scissors or shears and expands to allow easy installation over water cooling hoses, hydraulic hoses, and electrical cables. Also provides great insulation for exhaust systems.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 1" 1 1/2" 2" 3" 4" 5" 6" | SLN0.25NT SLN0.50NT SLN1.00NT SLN1.50NT SLN2.00NT SLN3.00NT SLN4.00NT SLN5.00NT SLN6.00NT | .060" .060" .060" .060" .060" .060" .060" .060" .060" | 1/4" 1/2" 3/4" 1" 1 1/4" 2 1/2" 3 1/2" 4 1/2" 5 1/2" | 1/2" 5/8" 1 5/32" 1 1/2" 2 3/16" 3 1/2" 4 1/2" 5 1/2" 6 1/2" | 100' 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 25' 25' 25' 25' 25' | 2.6 5.0 6.1 10.0 9.0 11.9 14.8 16.5 17.7 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .06 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | Medium |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Maximum Continuous (MIL-I-23053) | 1,800°F/982°C |
| Melt (ASTM D-2117) | 3,000°F/1,649°C |
| Other Information | |
| UL/CSA | Yes |
