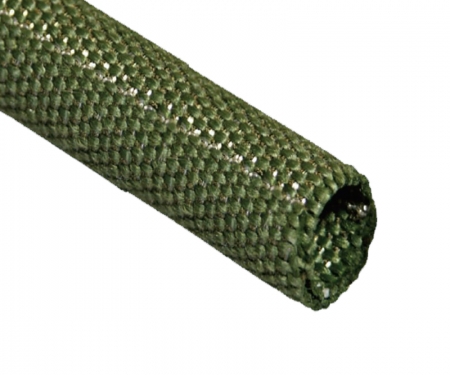

Bentley Harris® Roundit® 2000 NX Nomex Braided Cable Sleeving
Flame Retardant Self Closing Wrap-Around Sleeving - Bentley-Harris®
0.0 / 5
Roundit® 2000 NX Nomex Features
- Dual Weave of PPS ( Polyphenylene Sulfide) with Nomex filaments
- Working Temperature ranges from -60ºC to +200ºC
- Ranked to 200º C
- FAR Part 25
- Free of toxic halogens
- Self-wrapping side entry construction
- Simple to install, as well as remove
- Perfect for when modules need re-work without the need to disconnect anything
- Durable textile material
- Crafted ideally to support rail as well as air transportation uses
LEAD TIMES MAY APPLY FOR THESE ITEMS
The Roundit 2000NX wrap-around sleeving is going to be the ideal correspondence between both our Expandable Braided Sleeving and Split Wire Loom a.k.a. Corrugated Tubing. There is a division running down the length of the middle, allowing simple insertion and installation of wires and clusters of cables to take place. It is a highly durable and compact over sleeve, crafted to bundle, secure and defend cable assemblies, hoses, tubing and wire harnesses against wear, slicing, and abrasion.
If lead Times For Bentley Harris Product are Unsatisfactory Please see F6X Nomex Sleeving as a potential substitute
ROUNDIT 2000 NX is a knotted blend of Nomex and PPS (polyphenylene sulfide). The Nomex/PPS mix within its flat knit body will provide the ROUNDIT 2000 NX a durable though sleek feel and appearance for extreme climate bundling and wear combativeness. This item is ranked to 200°C (392°F) and is free of toxic halogens. ROUNDIT 2000 NX will be perfect aircraft uses, both commercial and defense, thanks to the excellent wear defense. ROUNDIT items are durable, compact oversleeves created to cluster and secure cable assemblies, tubes and hoses as well as wire harnesses against wear, slicing and abrasion. The self-coiling characteristics of ROUNDIT items allows for speedy and simple installation, as well as any removal that may take place for maintenance. This item can also be installed and removed without removing or damaging any connectors or fittings.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PROPERTY | TEST | VALUE |
|---|---|---|
| Filament Diameter | - | Wrap 1440 dtex Textured Nomex |
| Material | - | Fill .010"PPS monofilament and 1440 dtex Nomex |
| Degradation Temperature | - | Nomex 371°C |
| Melt Temperature | ASTM D-2117 | PPS 285°C |
| Flammability | F.A.R. Part 25 (60 s) | Pass |
| F.A.R. Part 25 (12 s) | - | |
| Surface Flammability | ASTM E-162 | 51.3 |
| Smoke Density | AITM 2.0007 (flaming) | Dmax = 49.3 |
| AITM 2.0007 (non-flaming) | Dmax = 7.0 | |
| Hard Vacuum | ASTM E-595 | - |
| TML | - | 1.714% |
| CVCM | - | 0.107% |
| WVR | - | 1.042% |
| Toxicity | AITM 3.0005 | Pass |
| Fluid Resistance | MIL-I-23053 | Tensile Retention |
| Jet Fuel JP-4 | MIL-T-5624 | 100% |
| Hydraulic Fluid | MIL-H-5606 | 100% |
| Lube Oil | MIL-I-7808 | 100% |
| De-Ice Fluid | MIL-A-8243 | 100% |
| Reference Oil #2 | ASTM D-471 | 100% |
| Salt Water | O-S-1926 | 100% |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Roundit 2000NX wrap-around sleeving is going to be the ideal correspondence between both our Expandable Braided Sleeving and Split Wire Loom a.k.a. Corrugated Tubing. There is a division running down the length of the middle, allowing simple insertion and installation of wires and clusters of cables to take place. It is a highly durable and compact over sleeve, crafted to bundle, secure and defend cable assemblies, hoses, tubing and wire harnesses against wear, slicing, and abrasion.
If lead Times For Bentley Harris Product are Unsatisfactory Please see F6X Nomex Sleeving as a potential substitute
ROUNDIT 2000 NX is a knotted blend of Nomex and PPS (polyphenylene sulfide). The Nomex/PPS mix within its flat knit body will provide the ROUNDIT 2000 NX a durable though sleek feel and appearance for extreme climate bundling and wear combativeness. This item is ranked to 200°C (392°F) and is free of toxic halogens. ROUNDIT 2000 NX will be perfect aircraft uses, both commercial and defense, thanks to the excellent wear defense. ROUNDIT items are durable, compact oversleeves created to cluster and secure cable assemblies, tubes and hoses as well as wire harnesses against wear, slicing and abrasion. The self-coiling characteristics of ROUNDIT items allows for speedy and simple installation, as well as any removal that may take place for maintenance. This item can also be installed and removed without removing or damaging any connectors or fittings.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PROPERTY | TEST | VALUE |
|---|---|---|
| Filament Diameter | - | Wrap 1440 dtex Textured Nomex |
| Material | - | Fill .010"PPS monofilament and 1440 dtex Nomex |
| Degradation Temperature | - | Nomex 371°C |
| Melt Temperature | ASTM D-2117 | PPS 285°C |
| Flammability | F.A.R. Part 25 (60 s) | Pass |
| F.A.R. Part 25 (12 s) | - | |
| Surface Flammability | ASTM E-162 | 51.3 |
| Smoke Density | AITM 2.0007 (flaming) | Dmax = 49.3 |
| AITM 2.0007 (non-flaming) | Dmax = 7.0 | |
| Hard Vacuum | ASTM E-595 | - |
| TML | - | 1.714% |
| CVCM | - | 0.107% |
| WVR | - | 1.042% |
| Toxicity | AITM 3.0005 | Pass |
| Fluid Resistance | MIL-I-23053 | Tensile Retention |
| Jet Fuel JP-4 | MIL-T-5624 | 100% |
| Hydraulic Fluid | MIL-H-5606 | 100% |
| Lube Oil | MIL-I-7808 | 100% |
| De-Ice Fluid | MIL-A-8243 | 100% |
| Reference Oil #2 | ASTM D-471 | 100% |
| Salt Water | O-S-1926 | 100% |
