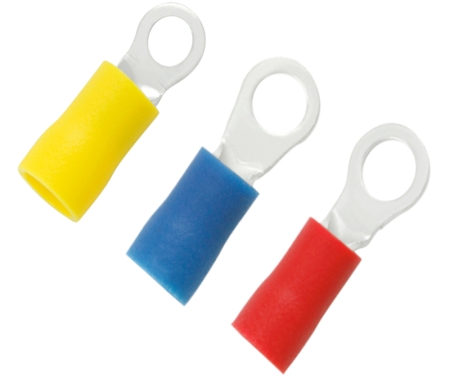

Ring Terminal Connector - PVC Vinyl Insulated
Easy Installation | UL Listed | Rated For 600 Volts
0.0 / 5
Ring Terminal Connector - PVC Vinyl Insulated Features
- Certified Safety: UL Listed (E545229) to meet electrical safety requirements.

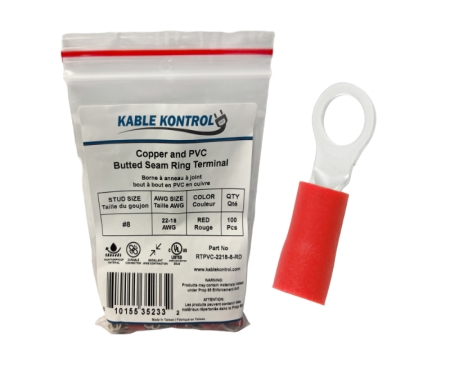

- Pack Quantity – 100 Pcs

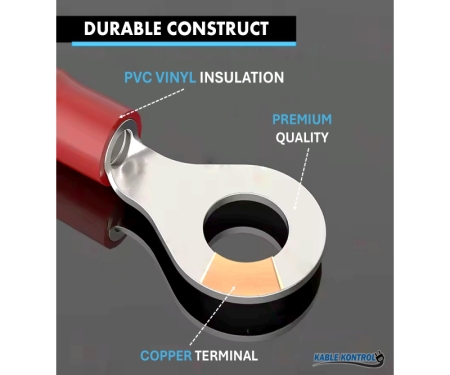

- Durable PVC Insulation: Provides a secure fit and enhanced durability with a butted seam barrel.

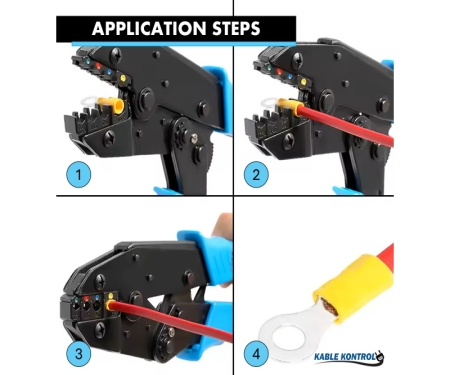

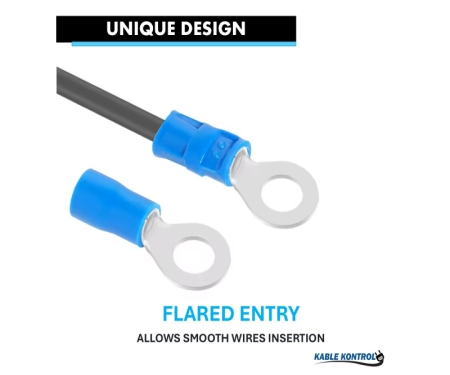

- Flared Entry for Easy Installation: Allows smooth wire insertion, saving time during setup.

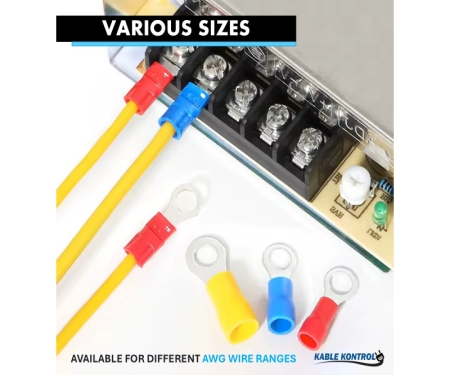

- Color-Coded for Quick Identification: Adheres to industry standards for wire range indication.
- High Voltage & Temperature Rating: Supports up to 600 volts and operates efficiently in temperatures up to 105°C (221°F).
- Cost-Effective Design: Economical choice for insulated terminals without compromising performance.

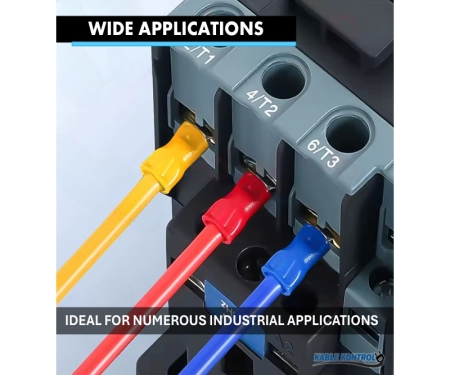

- Versatile Applications: Suitable for automotive, marine, and various other electrical installations.
- Material: Copper Terminal Connector and Vinyl Insulation
The Ring Terminal Connector - PVC Vinyl Insulated is a practical and economical choice for securely connecting, mating, or terminating single wires. The ring-shaped terminal is perfect for applications requiring attachment to screw or stud-type electrical connections, offering a strong and stable connection. Constructed with a durable PVC insulation sleeve that is tightly bonded to a butted seam barrel, this connector ensures lasting performance. The flared entry design simplifies wire insertion, making installation quick and hassle-free. Industry-standard color coding aids in identifying the appropriate wire range, promoting accurate and efficient wiring. These ring terminals are versatile enough for use in automotive, marine, and general electrical applications. They are designed to handle up to 600 volts and withstand temperatures up to 105°C (221°F). With UL Listing (E545229), these connectors meet safety and performance standards, ensuring reliability in a wide range of projects.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

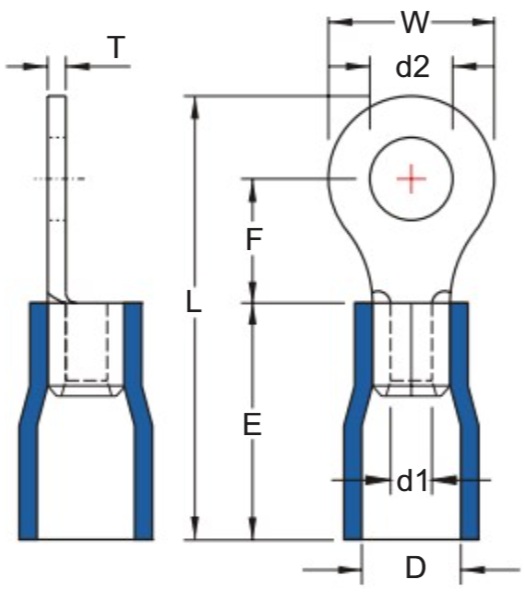

| Part Number | Wire Range (AWG/mm2) | Stud Size | Dimensions | Insulated Color | ||||||||||||
| W | F | L | E | D | D1 | T | ||||||||||
| RTPVC-2218-8-RD | 22 - 18 AWG 0.2 - 0.5 mm2 | #8 | 0.260" (6.6 mm) | 0.248" (6.3 mm) | 0.764" (19.4 mm) | 0.394" (10 mm) | 0.157" (4 mm) | 0.067" (1.7 mm) | 0.030" (0.75 mm) | Red | ||||||
| RTPVC-1614-8-BL | 16 - 14 AWG 1.5 - 2.5 mm2 | #8 | 0.260" (6.6 mm) | 0.243" (6.3 mm) | 0.764" (19.4 mm) | 0.394" (10 mm) | 0.177" (4.5 mm) | 0.091" (2.3 mm) | 0.031" (0.8 mm) | Blue | ||||||
| RTPVC-1210-8-YL | 12 - 10 AWG 4 - 6 mm2 | #8 | 0.283" (7.2 mm) | 0.240" (6.1 mm) | 0.894" (22.7 mm) | 0.512" (13 mm) | 0.252" (6.4 mm) | 0.134" (3.4 mm) | 0.039" (1 mm) | Yellow | ||||||
30 Day Return & Refund Policy
If you are not entirely satisfied with your purchase, we're here to help. You have 30 calendar days to return an item from the date you received it. To be eligible for a return, your item must be unused and in the same condition that you received it. Your item must be in the original packaging.
You are required to have an RMA (Returned Merchandise Authorization) assigned by our customer service team. To apply for an RMA you must fill out our RMA request Form linked here.
Undeliverable Shipments:
- In the event that the customers shipping address provided is deemed undeliverable by the shipping carrier, shipping fee's will not be refunded. Instead it is the customers responsibility to provide a deliverable address.
Defective/damaged products or items incorrectly shipped:
- In the highly unlikely event that a defective product or the another item that was not ordered was sent to you, please contact us via phone or email to schedule a return within 14 days of receiving the product. We may require photos for documentation and to authorize a replacement shipment.
- Defective/damaged products or items incorrectly shipped by Cable Ties And More or by our manufacturers, will be re-shipped at our expense. Additionally, return shipping expense of incorrect or defective product will be at our expense. We will provide you with a return shipping label with detailed shipping instructions.
Refunds
Once we receive your item, we will inspect it and we will immediately notify you on the status of your refund after inspecting the item. If your return is approved, we will initiate a refund to your credit card (or original method of payment). You will receive the credit within 48 hours after product condition is verified.
Shipping Fees
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund. For additional information in this section, create your own Return & Refund Policy.
Contact Us
If you have any questions on how to return your item to us, contact us using our Email Form Here… Or call during our business working hours at 1-877-284-7760
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Ring Terminal Connector - PVC Vinyl Insulated is a practical and economical choice for securely connecting, mating, or terminating single wires. The ring-shaped terminal is perfect for applications requiring attachment to screw or stud-type electrical connections, offering a strong and stable connection. Constructed with a durable PVC insulation sleeve that is tightly bonded to a butted seam barrel, this connector ensures lasting performance. The flared entry design simplifies wire insertion, making installation quick and hassle-free. Industry-standard color coding aids in identifying the appropriate wire range, promoting accurate and efficient wiring. These ring terminals are versatile enough for use in automotive, marine, and general electrical applications. They are designed to handle up to 600 volts and withstand temperatures up to 105°C (221°F). With UL Listing (E545229), these connectors meet safety and performance standards, ensuring reliability in a wide range of projects.

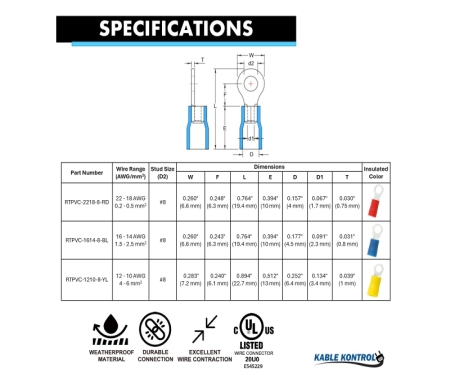

Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Wire Range (AWG/mm2) | Stud Size | Dimensions | Insulated Color | ||||||||||||
| W | F | L | E | D | D1 | T | ||||||||||
| RTPVC-2218-8-RD | 22 - 18 AWG 0.2 - 0.5 mm2 | #8 | 0.260" (6.6 mm) | 0.248" (6.3 mm) | 0.764" (19.4 mm) | 0.394" (10 mm) | 0.157" (4 mm) | 0.067" (1.7 mm) | 0.030" (0.75 mm) | Red | ||||||
| RTPVC-1614-8-BL | 16 - 14 AWG 1.5 - 2.5 mm2 | #8 | 0.260" (6.6 mm) | 0.243" (6.3 mm) | 0.764" (19.4 mm) | 0.394" (10 mm) | 0.177" (4.5 mm) | 0.091" (2.3 mm) | 0.031" (0.8 mm) | Blue | ||||||
| RTPVC-1210-8-YL | 12 - 10 AWG 4 - 6 mm2 | #8 | 0.283" (7.2 mm) | 0.240" (6.1 mm) | 0.894" (22.7 mm) | 0.512" (13 mm) | 0.252" (6.4 mm) | 0.134" (3.4 mm) | 0.039" (1 mm) | Yellow | ||||||
