Ultratech® Reusable Drain Guards
Capture dirt & sediment at construction sites & high erosion Areas
0.0 / 5
Ultratech® Reusable Drain Guards Features
- Rugged polypropylene construction can be easily rinsed and reused.
- Deep accumulation pocket (36”) can hold up to 500 lbs. of soil, sand, sediment, and dirt.
- Designed for easy removal with a backhoe, forklift, or other equipment.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Capture dirt and sediment at construction sites and other “high erosion” areas Storm drain on or around construction sites are susceptible to large quantities of dirt and sand. In those circumstances, a higher capacity catch basin insert may be the better solution. While it won't capture hydrocarbons like many of the other Ultra-Drain Guards, the Reusable Model is capable of containing up to five hundred (500) pounds of silt, soil, and dirt. So you can spend less time emptying out your catch basin inserts and more time working on that construction.
Product Details
Ultratech® Reusable Drain Guards capture dirt and sediment at construction sites and other “high erosion” areas!
Storm drains on or around construction sites are susceptible to large quantities of dirt and sand. In those circumstances, a higher capacity catch basin insert may be the better solution. While it won't capture hydrocarbons like many of the other Ultra-Drain Guards, the Reusable Model is capable of containing up to five hundred (500) pounds of silt, soil, and dirt so you can spend less time emptying out your catch basin inserts and more time working on construction.
- Rugged polypropylene construction can be easily rinsed and reused.
- Deep accumulation pocket (36”) can hold up to 500 lbs. of soil, sand, sediment, and dirt.
- Designed for easy removal with a backhoe, forklift, or other equipment.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Ultra-Drain Guard, Reusable Models (Standard)
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9341 | Reusable Model | 24 x 24 x 36 (609.6 x 609.6 x 914.4) | 1 (.5) |
| 9340 | Reusable Model | 36 x 24 x 36 (914.4 x 609.6 x 914.4) | 1 (.5) |
| 9342 | Reusable Model | 48 x 24 x 36 (1219.2 x 609.6 x 914.4) | 2 (.9) |
Ultra-Drain Guard, Reusable Models (Curb-Style)
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9332 | Reusable Model, Curb-Style | 24 x 24 x 36 (609.6 x 609.6 x 914.4) | 3 (1.4) |
| 9330 | Reusable Model, Curb-Style | 36 x 24 x 36 (914.4 x 609.6 x 914.4) | 3 (1.4) |
| 9331 | Reusable Model, Curb-Style | 48 x 24 x 36 (1219.2 x 609.6 x 914.4) | 3 (1.4) |
Product Manuals
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I choose the Reusable Drain Guard over another model?
Because of its extraordinary capacity (up to 500 lbs), the Reusable Drain Guard is an excellent choice where the potential for sediment, sand, soil, and dirt is great and there is little or no concern for capturing hydrocarbons. For this reason, the Reusable Drain Guard is often used on construction sites.
Five hundred pounds is a lot of weight. Will the grate be able to hold the Drain Guard in place with that kind of load?
This will be dependent from catch basin to catch basin depending on the design, weight, and size of the grate, the fit of the grate and other factors. However, it can and has been done. For added security, rebar can be inserted into the removal flap pockets and left in place (these will be necessary during removal of the Drain Guard).
What is the flow rate for this Drain Guard?
When new, the flow rate for the Reusable Drain Guard is 695 gals/min/ft².
How am I supposed to remove the Reusable Drain Guard when it is full?

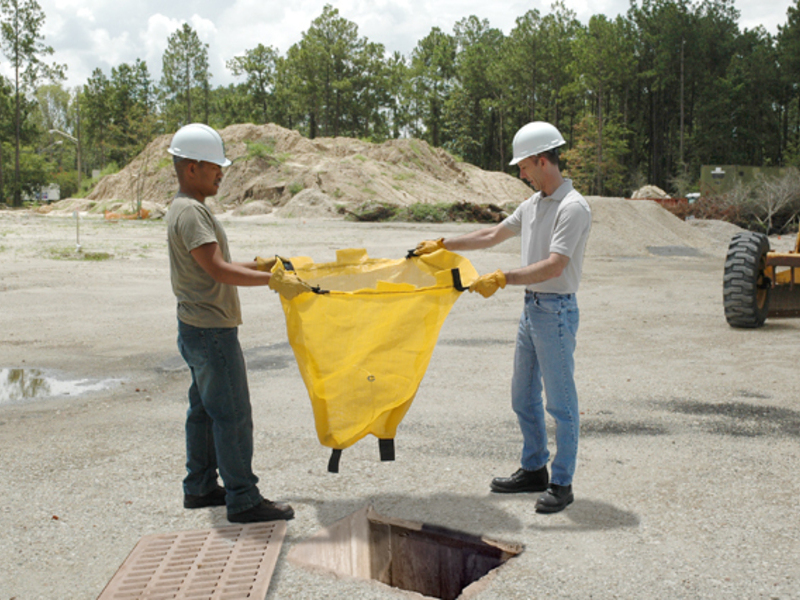

Once rebar has been inserted into the removal flap pockets, the unit can either be removed by hand (at least two people) or, for larger loads, a backhoe, forklift or other equipment should be used.
Why doesn't this catch basin insert absorb oil and other hydrocarbons like your other Drain Guards?
In order to be able to contain very large amounts of sand, silt, and sediment, it is necessary to use a polypropylene material to make the Reusable Model Drain Guard. While this is obviously a very strong, durable and heavy-duty material it does not have the oil-absorbing capabilities of the geotextile material that is used for most of our other Drain Guard models.
