Techflex® Flexo® Reflex Braided Cable Sleeving
Reflects On-Axis Light 360° Up To 675’
0.0 / 5
Reflective Braided Sleeving Features
- Ultra High Visibility
- Cuts Easily With Hot Knife
- Cut & Abrasion Resistant
- Expands Up To 150%
- Resists Damage From Common Chemicals
- Temperature Range: -22° to 257°F (-30° to 125°C.)
- RoHS Compliant
- Melt: 446°F / 230°C.

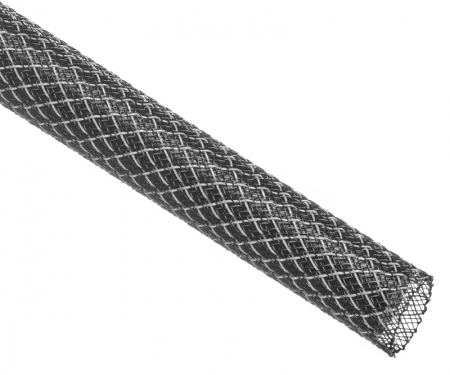

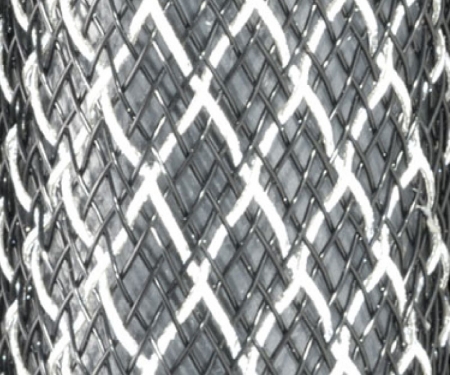

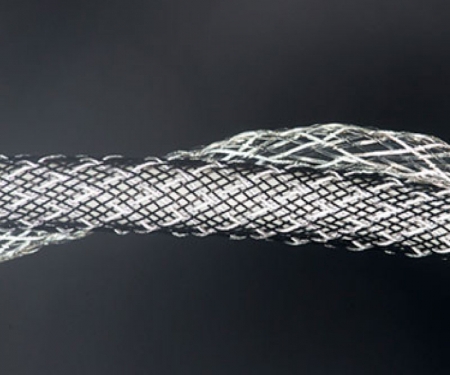

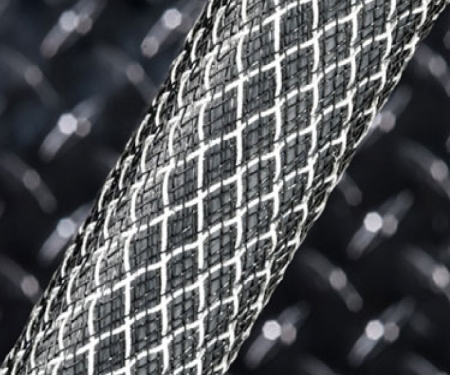

Flexo Reflex is our polyethylene terepthalate material braided together with highly reflective 3M Scotchlite retroreflective monofilament. This unique combination provides a high level of wire and cable protection with the added advantage of extraordinary 360 degree, on-axis reflectivity.
Reflex sleeving is up to 1,500 times brighter than plain white under identical conditions and will provide high visibility safety on wires, hoses, cables, bicycle and motorcycle cables, stage wiring and virtually anything else up to 675’ away Reflective even under low light conditions. Patent pending.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/8" 1/4" 1/2" 3/4" | RFN0.13CL RFN0.25 RFN0.50 RFN0.75 | 1/16" 3/16" 1/4" 3/8" | 1/4" 3/8" 1" 1 3/8" | 1,000' 1,000' 500' 250' | 100' 100' 100' 75' | CL 2 2 2 | 0.29 0.33 0.52 0.63 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .026 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Low |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -22°F/-30°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 446°F/230°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo Reflex is our polyethylene terepthalate material braided together with highly reflective 3M Scotchlite retroreflective monofilament. This unique combination provides a high level of wire and cable protection with the added advantage of extraordinary 360 degree, on-axis reflectivity.
Reflex sleeving is up to 1,500 times brighter than plain white under identical conditions and will provide high visibility safety on wires, hoses, cables, bicycle and motorcycle cables, stage wiring and virtually anything else up to 675’ away Reflective even under low light conditions. Patent pending.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/8" 1/4" 1/2" 3/4" | RFN0.13CL RFN0.25 RFN0.50 RFN0.75 | 1/16" 3/16" 1/4" 3/8" | 1/4" 3/8" 1" 1 3/8" | 1,000' 1,000' 500' 250' | 100' 100' 100' 75' | CL 2 2 2 | 0.29 0.33 0.52 0.63 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .026 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Low |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -22°F/-30°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 446°F/230°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
