Ultratech® Recycled Drain Guards
Keep oil & sediment from catch basins with Recycled Inserts
0.0 / 5
Ultratech® Recycled Drain Guards Features
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.

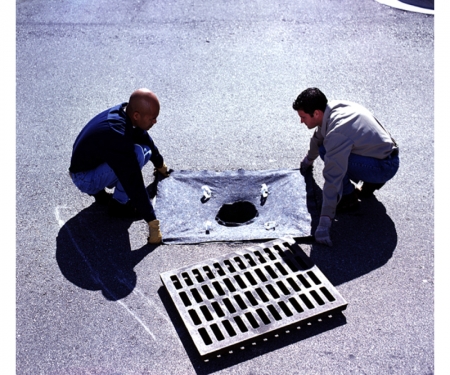

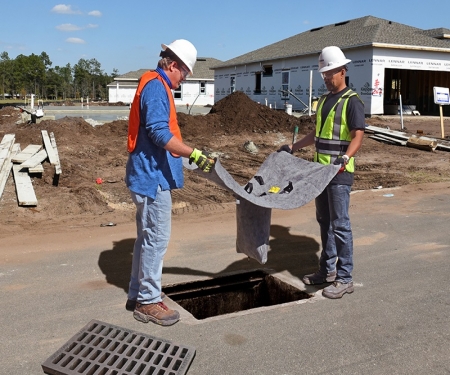

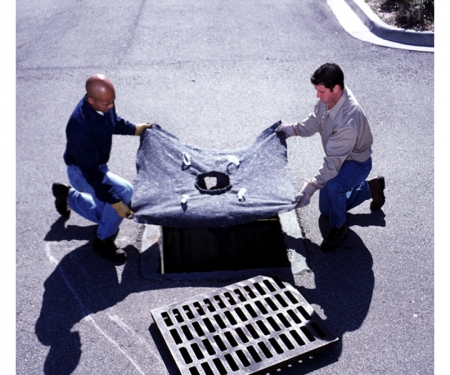

- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Keep oil and sediment from entering catch basins with environmentally-friendly inserts! Recycled is the new black. Okay, maybe not. But it is certainly a buzzword in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
Ultratech® Recycled Drain Guards keep oil and sediment from entering catch basins with environmentally-friendly inserts.
Recycled is the new black. Okay, maybe not. But it is certainly important in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.
- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|---|
| 9378 | 1 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
| 9379 | 10 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What's different about this Drain Guard model compared to the others?
From a dimensional standpoint, the Recycled Model Drain Guard is the same as the Oil & Sediment Model Drain Guard, but instead of the geotextile material used for other models, we make the Recycled Model completely from Ultra-X-Tex.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
Do I have to take the grate out of the storm drain to install this Ultra-Drain Guard?
Yes. While we do have some stormwater products that do not require the grate to be lifted, the Ultra-Drain Guard, Recycled Model does require that you first lift the grate.
What do I do with the Drain Guard when I'm done with it?
If the unit has only been used to remove dirt, sand and sediment from incoming stormwater flow, it can be disposed of like any other trash/waste. If oil/grease or any other hydrocarbons have been absorbed by the X-Tex material, it must be disposed of in accordance with local regulations and requirements.
What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Recycled Model is designed to be installed in drains up to 30" x 40".
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Ultratech® Recycled Drain Guards keep oil and sediment from entering catch basins with environmentally-friendly inserts.
Recycled is the new black. Okay, maybe not. But it is certainly important in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.
- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|---|
| 9378 | 1 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
| 9379 | 10 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What's different about this Drain Guard model compared to the others?
From a dimensional standpoint, the Recycled Model Drain Guard is the same as the Oil & Sediment Model Drain Guard, but instead of the geotextile material used for other models, we make the Recycled Model completely from Ultra-X-Tex.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
Do I have to take the grate out of the storm drain to install this Ultra-Drain Guard?
Yes. While we do have some stormwater products that do not require the grate to be lifted, the Ultra-Drain Guard, Recycled Model does require that you first lift the grate.
What do I do with the Drain Guard when I'm done with it?
If the unit has only been used to remove dirt, sand and sediment from incoming stormwater flow, it can be disposed of like any other trash/waste. If oil/grease or any other hydrocarbons have been absorbed by the X-Tex material, it must be disposed of in accordance with local regulations and requirements.
What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Recycled Model is designed to be installed in drains up to 30" x 40".
