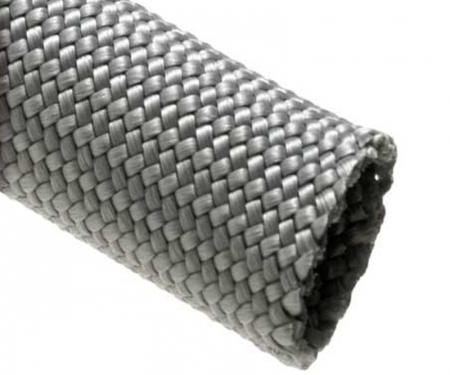

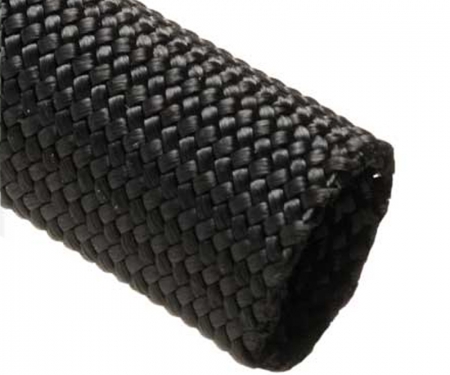

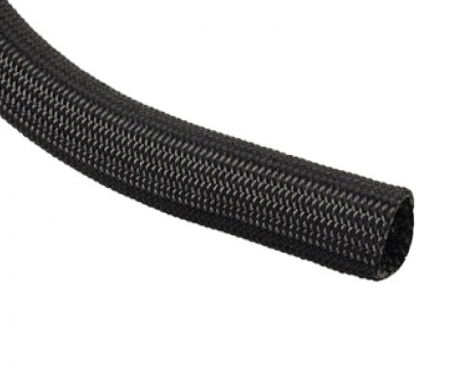

Techflex® Nylon Multifilament Braided Cable Sleeving
High Resistance to Abrasion & chemicals - Ideal For Military Use
0.0 / 5
Nylon Multifilament Sleeving Features
- Highly Abrasion & UV Resistant
- Resists Common Chemicals & Solvents
- Expands Slightly For Easy Installation
- Meets or Exceeds Military Specifications A-A-59301.
- Cuts Easily With Hot Knife
- RoHS Compliant
- Will Not Rot Or Retain Moisture
- Soft, Pliable & Quiet
- Full Coverage For Full Protection
- Operating Temperature Range: -49° to 248°F (-45° to 120 °C.)
- 482°F / 250°C. Melt Temp.
- Inside Diameters Are Measured as Round Not Flat

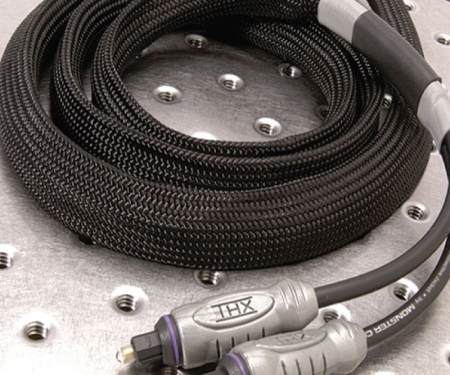

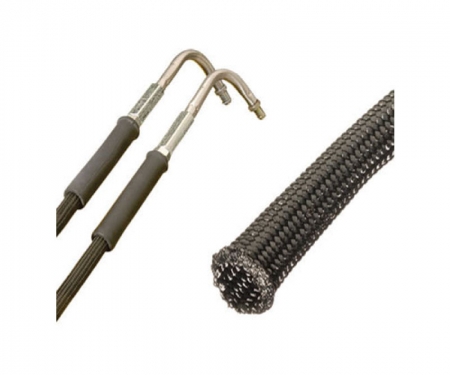

Under the hood or across the floor, Nylon Multifilament braided sleeving is the perfect sleeving product for protecting and improving the appearance of wires and cables. Nylon multifilament sleeving has been used in military wire harness applications for many years. Nylon multifilament sleeving’s fabric-like softness and flexibility hide surprisingly tough specifications. The high coverage sleeving meets or exceeds military specifications A-A-59301. Nylon multifilament braided sleeving is highly resistant to abrasion, cuts, common automotive and marine chemicals, UV damage, and vibration. It will not rot or retain moisture. The wide operating temperature range allows NM to protect delicate wiring in engine compartments and near exhaust systems. Nylon Multifilament sleeving creates a unique and attractive retro look when installed on a/v cables.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.015" | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 3/32" 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3" | NMN0.09BK NMN0.13BK NMN0.19BK NMN0.25BK NMN0.31BK NMN0.38BK NMN0.50BK NMN0.63BK NMN0.75BK NMN0.88BK NMN1.00BK NMN1.25BK NMN1.50BK NMN1.75BK NMN2.00BK NMN2.50BK NMN3.00BK | .020" .020" .030" .030" .030" .030" .030" .040" .040" .040" .050" .050" .060" .060" .060" .060" .060" | 1,000' 1,000' 1,000' 500' 500' 500' 250' 250' 250' 200' 200' 125' 100' 100' 100' 100' 100' | 225' 225' 200' 200' 125' 125' 75' 75' 75' 50' 50' 50' 50' 50' 50' 50' 50' | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 0.29 0.33 0.56 0.79 0.99 1.09 1.74 2.85 3.15 4.35 5.15 5.50 6.46 7.73 9.01 10.32 11.00 |
| Tight Weave | ||||||
| 3/8" | NMT0.38BK | .030" | 250' | 75' | 1 | 1.47 |
| Physical Properties | |
| Monofilament Thickness | ASTM D-204 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .03 - .06 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 10.5 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 2 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 3 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 428°F/220°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Under the hood or across the floor, Nylon Multifilament braided sleeving is the perfect sleeving product for protecting and improving the appearance of wires and cables. Nylon multifilament sleeving has been used in military wire harness applications for many years. Nylon multifilament sleeving’s fabric-like softness and flexibility hide surprisingly tough specifications. The high coverage sleeving meets or exceeds military specifications A-A-59301. Nylon multifilament braided sleeving is highly resistant to abrasion, cuts, common automotive and marine chemicals, UV damage, and vibration. It will not rot or retain moisture. The wide operating temperature range allows NM to protect delicate wiring in engine compartments and near exhaust systems. Nylon Multifilament sleeving creates a unique and attractive retro look when installed on a/v cables.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.015" | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 3/32" 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3" | NMN0.09BK NMN0.13BK NMN0.19BK NMN0.25BK NMN0.31BK NMN0.38BK NMN0.50BK NMN0.63BK NMN0.75BK NMN0.88BK NMN1.00BK NMN1.25BK NMN1.50BK NMN1.75BK NMN2.00BK NMN2.50BK NMN3.00BK | .020" .020" .030" .030" .030" .030" .030" .040" .040" .040" .050" .050" .060" .060" .060" .060" .060" | 1,000' 1,000' 1,000' 500' 500' 500' 250' 250' 250' 200' 200' 125' 100' 100' 100' 100' 100' | 225' 225' 200' 200' 125' 125' 75' 75' 75' 50' 50' 50' 50' 50' 50' 50' 50' | 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 | 0.29 0.33 0.56 0.79 0.99 1.09 1.74 2.85 3.15 4.35 5.15 5.50 6.46 7.73 9.01 10.32 11.00 |
| Tight Weave | ||||||
| 3/8" | NMT0.38BK | .030" | 250' | 75' | 1 | 1.47 |
| Physical Properties | |
| Monofilament Thickness | ASTM D-204 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .03 - .06 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 10.5 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 2 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 3 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 428°F/220°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
