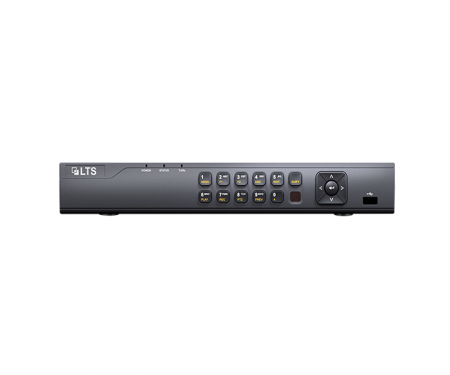

Platinum Pro Level 4 Channel NVR-4K

4 channel NVR, with Playback up to 4k and has 40mp Bandwidth

0.0 / 5

(0)

Platinum Professional Level 8 Channel NVR Features

  • 4 Channel Network Video Recorder
  • Support Live View, Recording, Playback up to 4K/8MP IP Camera
  • 40Mb Bandwidth
  • Up to 6TB capacity for each disk
  • 4K (3840x2160) HDMI Video Output
  • H.265/H.265+/H.264/H.264+
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 4-Channel
Recorder Case Compact Case
Recorder Technology IP / NVR
Featured Product No
Specifications
Video/Audio Input
IP Video Input 4CH
Two Way Audio Input 1- ch, RCA (2.0 Vp- p, 1kΩ)
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 80Mbps
Video/Audio Output
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output

4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60 Hz,
1280 × 720/60Hz, 1024 × 768/ 60Hz

VGA Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output 1CH, RCA (Linear, 1kΩ)
Decoding H.265/H.265+/H.264/H.264 Zip+/MPEG4
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback 4CH
Capability 1-ch @ 8 MP / 4-ch @ 1 080p
Hard Disk
SATA 1 SATA interfaces for 1 HDDs
Capacity Up to 6TB capacity for each disk
External Interface
Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Protocols TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
USB Port 2 × USB2.0
General
Power Supply 48V DC
Consumption ≤ 10W (without enabling PoE)
Working Temperature 14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity 10% - 90%
Chassis 1U Casing
Dimension 315 ×240× 48mm (12.4×9.4 × 1.9 inch)
Weight ≤ 1 kg (2.2 lb)



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
