Non Insulated Ring Terminals
UL Listed | Ideal For Automotive, Marine, & Electrical Project
0.0 / 5
Kable Kontrol® Ring Terminal Connector - Non Insulated Features
- Safety Certified: UL Listed (E545229) for trusted safety and compliance.
- Pack Quantity – 100 Pcs
- Affordable & Practical: Cost-effective solution for general wiring needs.
- Secure Connections: Ring-shaped design attaches easily to screw or stud-type fittings.
- Durable Build: High-quality copper with a tin-plated finish for corrosion resistance.
- Versatile Applications: Ideal for automotive, marine, and general electrical installations.
- High Performance: Supports up to 600 volts and temperatures up to 105°C (221°F).
- Material: Copper Terminal Connector
The Kable Kontrol® Ring Terminal Connector - Non Insulated is a budget-friendly and reliable choice for connecting, mating, or terminating single wires. Its practical ring-shaped design ensures a secure connection to screw or stud-type electrical applications, making it ideal for automotive, marine, and general electrical projects. Crafted from high-quality copper with a corrosion-resistant tin-plated finish, this ring terminal delivers excellent conductivity and long-lasting performance. It is perfect for situations where insulation or special performance features are not required, providing a simple yet effective solution for a wide range of wiring tasks. Built to handle up to 600 volts and withstand temperatures up to 105°C (221°F), this terminal is UL Listed (E545229) for safety and reliability. Choose this economical ring terminal to simplify your electrical connections while maintaining performance and compliance.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

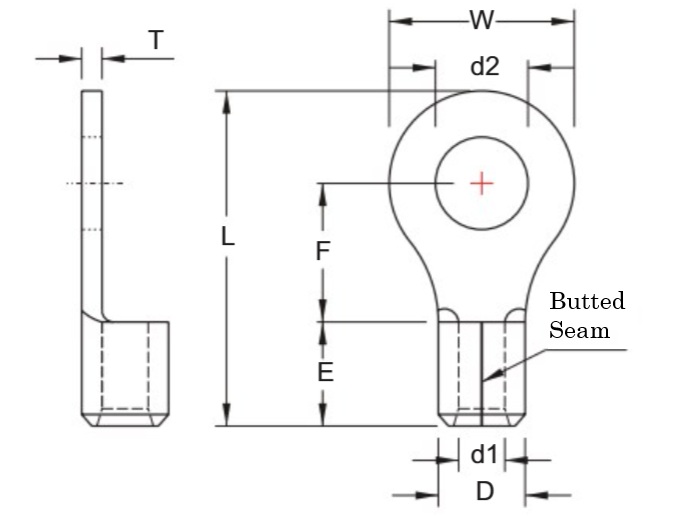

| Part Number | Wire Range (AWG/mm2) | Stud Size | Dimensions | ||||||||||||
| W | F | L | E | D | D1 | T | |||||||||
| RTNI-2218-8 | 22 - 18 AWG 0.2 - 0.5 mm2 | #8 | 0.260" (6.6 mm) | 0.248" (6.3 mm) | 0.803" (20.4 mm) | 0.433" (11 mm) | 0.157" (4 mm) | 0.067" (1.7 mm) | 0.030" (0.75 mm) | ||||||
| RTNI-1614-8 | 16 - 14 AWG 1.5 - 2.5 mm2 | #8 | 0.260" (6.6 mm) | 0.248" (6.3 mm) | 0.803" (20.4 mm) | 0.433" (11 mm) | 0.177" (4.5 mm) | 0.091" (2.3 mm) | 0.031" (0.8 mm) | ||||||
| RTNI-1210-8 | 12 - 10 AWG 4 - 6 mm2 | #8 | 0.283" (7.2 mm) | 0.240" (6.1 mm) | 0.894" (22.7 mm) | 0.512" (13 mm) | 0.252" (6.4 mm) | 0.134" (3.4 mm) | 0.039" (1 mm) | ||||||
