Techflex® Flexo® Nomex Cable Sleeving
Soft & Pliable Flame Protection to 662°F
0.0 / 5
Techflex® Flexo® Nomex Braided Sleeving Features
- Operating Temperature Range: -320° to 662°F (-196° to 350°C.)
- Cuts Easily With Scissors
- Abrasion and Cut Resistant
- Soft, Pliable & Strong
- Resists Common Chemicals & Solvents
- Expands Slightly For Easy Installation
- Tight Braid For Full Coverage and Protection
- Melt Temperature: 2,048°F / 1,120°C.
- Note: Measurements are listed as inside diameter.

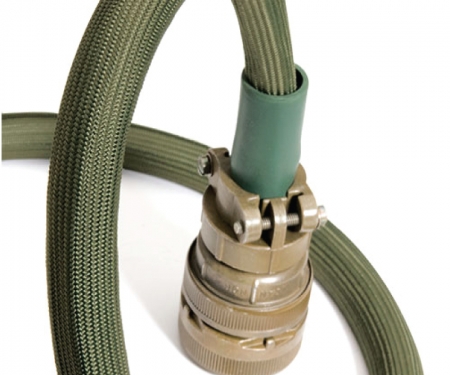

Woven Flexo Nomex clothing and protective gear have been used for years by race car drivers, fire departments, and oil rig personnel to provide that extra level of protection from the dangers that come with working in and around intense flame and heat. Flexo Nomex braided sleeving will do the same for your wires, hoses, and cables. Flexo Nomex braided sleeving will protect your application in temperatures up to 662°F. It is unaffected by short term exposure to most acids, bases, solvents, and common engineering chemicals. Despite the soft touch and smooth appearance associated with woven aramid fibers, Nomex sleeving is incredibly strong, with a tensile strength of 90,000 psi. The densely braided sleeving provides full coverage and protection on even the most exposed applications. Flexo Nomex sleeving sleeving cuts easily with regular scissors and the smooth surface eases installation even over long wire runs.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | NXN0.13 NXN0.25 NXN0.31 NXN0.38 NXN0.50 NXN0.63 NXN0.75 NXN1.00 NXN1.25 NXN1.50 NXN1.75 | 1/16" 1/8" 7/32" 1/4" 5/16" 7/16" 9/16" 3/4" 1" 7/8" 1 3/4" | 1/4" 5/16" 7/16" 1/2" 5/8" 7/8" 1" 1 1/8" 2" 1 21/32" 1 55/64" | 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 2 2 | 0.12 0.50 0.60 0.67 0.91 1.10 1.34 2.42 3.49 4.03 4.76 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Self-Extinguishing |
| Recommended Cutting | Scissors/Shears |
| Colors | 2 |
| Wall Thickness | .016 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 8 |
| Abrasion Resistance | Low |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | 4 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | NA |
| Alipahtic Solvents | NA |
| Chlorinated Solvents | NA |
| Weak Bases | NA |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | NA |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | NA |
| De-Icing Fluid (MIL-A-8243) | NA |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | NA |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | NA |
| Salts | NA |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 3.94 |
| CVCM | .18 |
| WVR | 2.91 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | 28 |
| Operating Temperatures | |
| Minimum Continuous | -320°F/-196°C |
| Maximum Continuous (MIL-I-23053) | 662°F/350°C |
| Melt (ASTM D-2117) | NA |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Woven Flexo Nomex clothing and protective gear have been used for years by race car drivers, fire departments, and oil rig personnel to provide that extra level of protection from the dangers that come with working in and around intense flame and heat. Flexo Nomex braided sleeving will do the same for your wires, hoses, and cables. Flexo Nomex braided sleeving will protect your application in temperatures up to 662°F. It is unaffected by short term exposure to most acids, bases, solvents, and common engineering chemicals. Despite the soft touch and smooth appearance associated with woven aramid fibers, Nomex sleeving is incredibly strong, with a tensile strength of 90,000 psi. The densely braided sleeving provides full coverage and protection on even the most exposed applications. Flexo Nomex sleeving sleeving cuts easily with regular scissors and the smooth surface eases installation even over long wire runs.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | NXN0.13 NXN0.25 NXN0.31 NXN0.38 NXN0.50 NXN0.63 NXN0.75 NXN1.00 NXN1.25 NXN1.50 NXN1.75 | 1/16" 1/8" 7/32" 1/4" 5/16" 7/16" 9/16" 3/4" 1" 7/8" 1 3/4" | 1/4" 5/16" 7/16" 1/2" 5/8" 7/8" 1" 1 1/8" 2" 1 21/32" 1 55/64" | 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' 100' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 2 2 | 0.12 0.50 0.60 0.67 0.91 1.10 1.34 2.42 3.49 4.03 4.76 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Self-Extinguishing |
| Recommended Cutting | Scissors/Shears |
| Colors | 2 |
| Wall Thickness | .016 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 8 |
| Abrasion Resistance | Low |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | 4 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | NA |
| Alipahtic Solvents | NA |
| Chlorinated Solvents | NA |
| Weak Bases | NA |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | NA |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | NA |
| De-Icing Fluid (MIL-A-8243) | NA |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | NA |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | NA |
| Salts | NA |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 3.94 |
| CVCM | .18 |
| WVR | 2.91 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | 28 |
| Operating Temperatures | |
| Minimum Continuous | -320°F/-196°C |
| Maximum Continuous (MIL-I-23053) | 662°F/350°C |
| Melt (ASTM D-2117) | NA |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
