Techflex® Flexo® Mylar Braided Cable Sleeving
Lightweight Economical Metallic Alternative
0.0 / 5
Mylar Braided Sleeving Features
- Economical & Easy To Install
- Expands Up To 150%
- Cuts Easily With Hot Knife
- Temperature Range -103° to 257°F (-75° to 125°C.)
- RoHS Compliant
- Melt: 446°F / 230°C
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat

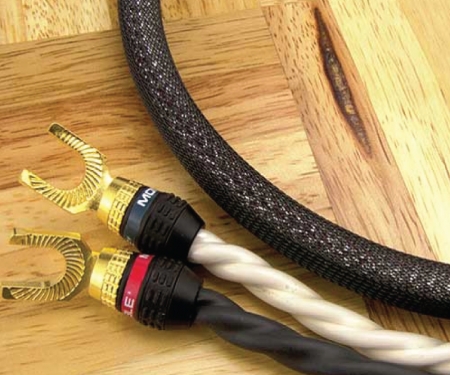

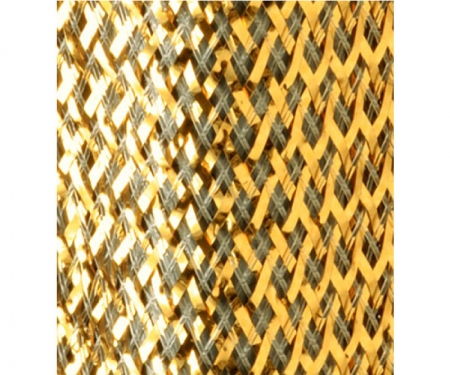

When your needs don’t call for the durability or toughness of our chrome or chrome xc sleeving, Mylar sleeving is an ideal, economical alternative. Mylar sleeving is perfect for cosmetic applications and a wide variety of installation methods create dramatic results. Audiophile cable builders often use Mylar sleeving under other sleeving types to create a unique, custom visual effect. Applications that combine Mylar sleeving with a more robust sleeving will withstand abrasion and general use and still have the custom, “Wow!” effect cable fabricators are looking for. Braided from thin metallic Mylar strips along with transparent PET monofilament. Mylar sleeving creates a sparkling, highly reflective effect. Mylar sleeving can be used instead of Mylar sheets to wrap and bundle cables.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

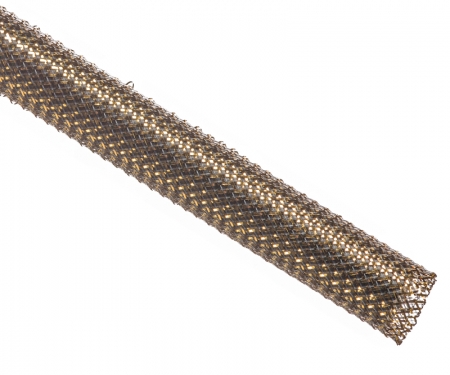

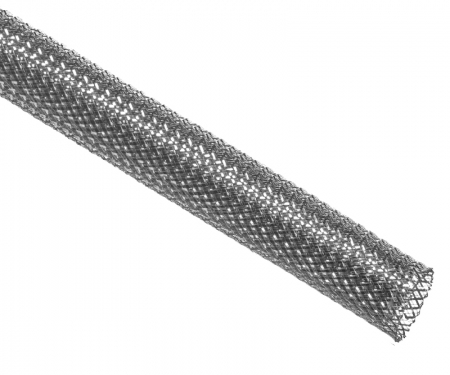

Gold, Silver
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/4" 1/2" 3/4" | MYN0.25 MYN0.50 MYN0.75 | 1/8" 1/4" 5/8" | 7/16" 1" 1 3/4" | 1,000' 500' 250' | 200' 100' 75' | 2 2 2 | 0.17 0.35 0.52 |

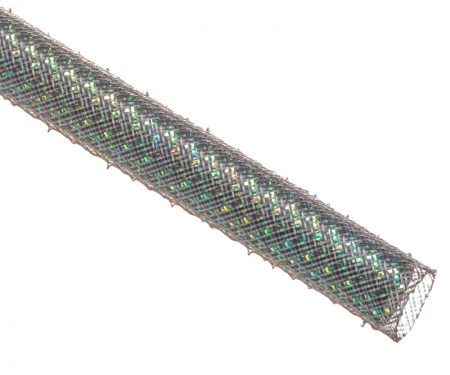

Pearlescent Clear
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/8" 1/4" 3/8" 1/2" | MYE0.13PC MYE0.25PC MYE0.38PC MYE0.50PC | 1/16" 5/32" 5/16" 1/4" | 5/32" 5/16" 15/32" 3/4" | 1,000' 1,000' 500' 500' | 225' 200' 125' 100' | PC PC PC PC | 0.08 0.10 0.11 0.42 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 3 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.3 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 3 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
When your needs don’t call for the durability or toughness of our chrome or chrome xc sleeving, Mylar sleeving is an ideal, economical alternative. Mylar sleeving is perfect for cosmetic applications and a wide variety of installation methods create dramatic results. Audiophile cable builders often use Mylar sleeving under other sleeving types to create a unique, custom visual effect. Applications that combine Mylar sleeving with a more robust sleeving will withstand abrasion and general use and still have the custom, “Wow!” effect cable fabricators are looking for. Braided from thin metallic Mylar strips along with transparent PET monofilament. Mylar sleeving creates a sparkling, highly reflective effect. Mylar sleeving can be used instead of Mylar sheets to wrap and bundle cables.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Gold, Silver
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/4" 1/2" 3/4" | MYN0.25 MYN0.50 MYN0.75 | 1/8" 1/4" 5/8" | 7/16" 1" 1 3/4" | 1,000' 500' 250' | 200' 100' 75' | 2 2 2 | 0.17 0.35 0.52 |
Pearlescent Clear
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/8" 1/4" 3/8" 1/2" | MYE0.13PC MYE0.25PC MYE0.38PC MYE0.50PC | 1/16" 5/32" 5/16" 1/4" | 5/32" 5/16" 15/32" 3/4" | 1,000' 1,000' 500' 500' | 225' 200' 125' 100' | PC PC PC PC | 0.08 0.10 0.11 0.42 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 3 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.3 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 3 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
