Glow In The Dark Spiral Wrap (Luminescent)
Adds Visibility In Low Light Working Conditions - Sun Activated
0.0 / 5
Luminescent Glow In the Dark Spiral Wrap Features
- Fluorescent Glow is Clearly Visible for up to 12 hrs
- For Added Visibility Wrap Around any Hose or Cable
- Made from High Density Polyethylene & Photoluminescent
- Provides Protection from -40°F up to +280°F
- Can be installed Without removing fittings
- Constructed from 100% Virgin Polyethylene
UV (Sun) Activated Luminescent Glow Feature

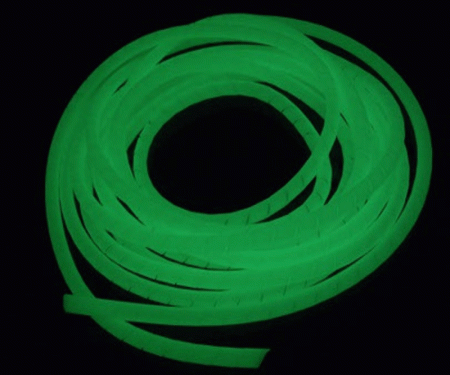

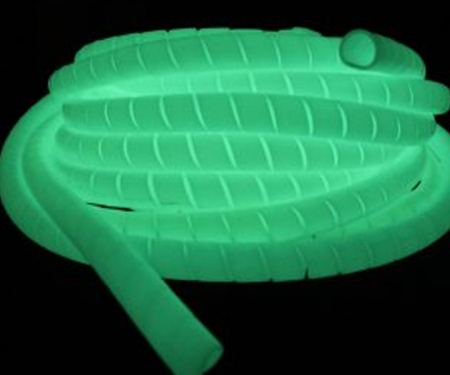

Our Nightglow glow-in-the-dark spiral wrap not only helps protect not only bundles and hoses but it also emits light allowing easy identification of hydraulic lines, equipment, and static objects in low light or nighttime conditions. The fluorescent glow in the dark spiral wrap allows burst or ruptured hoses to be identified even in the dark and is clearly visible for up to 12 hrs. Glow in the dark spiral wrap now available now in different sizes.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Hose ID (Inch) | ID Variance | Hose OD Range | Wall Thickness | Helix – Band Width (In) | Box Qty (Feet) | ||
| SPW-N16SSG | 0.4” | +/- 0.02” | 0.39” – 0.66” | 0.06” | +/- 0.01” | 0.4” | +/- 0.08” | 165’ |
| SPW-N20SSG | 0.45” | +/- 0.02” | 0.47” – 086” | 0.06” | +/- 0.01” | 0.48” | +/- 0.08” | 66’ |
| SPW-N25SSG | 0.55” | +/- 0.02” | 0.62” – 1.06” | 0.07” | +/- 0.01” | 0.57” | +/- 0.08” | 66’ |
| SPW-N12SSG | 0.80” | +/- 0.02” | 0.86” – 1.37” | 0.08” | +/- 0.01” | 0.82” | +/- 0.12” | 66’ |
| SPW-N32SSG | 1” | +/- 0.02” | 1.06” – 1.69” | 0.09” | +/- 0.01” | 0.94” | +/- 0.12” | 66’ |
| SPW-N40SSG | 1.26” | +/- 0.04” | 1.3” – 2.17” | 0.09” | +/- 0.01” | 1.18” | +/- 0.12” | 66’ |
| SPW-N50SSG | 1.5” | +/- 0.04” | 1.65” – 2.52” | 0.12” | +/- 0.01” | 1.38” | +/- 0.12” | 66’ |
| SPW-N63SSG | 2.0” | +/- 0.04” | 2.05” – 2.95” | 0.14” | +/- 0.01” | 1.57” | +/- 0.16” | 66’ |
| SPW-N75SSG | 2.4” | +/- 0.04” | 2.56” – 3.8” | 0.15” | +/- 0.02” | 1.6” | +/- 0.16” | 66’ |
| SPW-N110SSG | 2.83” | +/- 0.04” | 3.15” – 4.9” | 0.18” | +/- 0.02” | 1.78” | +/- 0.16” | 66’ |
| SPW-N90SSG | 3.43” | +/- 0.04” | 3.8” – 5.9”+ | 0.22” | +/- 0.02” | 2.17" | +/- 0.16” | 40’ |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Our Nightglow glow-in-the-dark spiral wrap not only helps protect not only bundles and hoses but it also emits light allowing easy identification of hydraulic lines, equipment, and static objects in low light or nighttime conditions. The fluorescent glow in the dark spiral wrap allows burst or ruptured hoses to be identified even in the dark and is clearly visible for up to 12 hrs. Glow in the dark spiral wrap now available now in different sizes.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Hose ID (Inch) | ID Variance | Hose OD Range | Wall Thickness | Helix – Band Width (In) | Box Qty (Feet) | ||
| SPW-N16SSG | 0.4” | +/- 0.02” | 0.39” – 0.66” | 0.06” | +/- 0.01” | 0.4” | +/- 0.08” | 165’ |
| SPW-N20SSG | 0.45” | +/- 0.02” | 0.47” – 086” | 0.06” | +/- 0.01” | 0.48” | +/- 0.08” | 66’ |
| SPW-N25SSG | 0.55” | +/- 0.02” | 0.62” – 1.06” | 0.07” | +/- 0.01” | 0.57” | +/- 0.08” | 66’ |
| SPW-N12SSG | 0.80” | +/- 0.02” | 0.86” – 1.37” | 0.08” | +/- 0.01” | 0.82” | +/- 0.12” | 66’ |
| SPW-N32SSG | 1” | +/- 0.02” | 1.06” – 1.69” | 0.09” | +/- 0.01” | 0.94” | +/- 0.12” | 66’ |
| SPW-N40SSG | 1.26” | +/- 0.04” | 1.3” – 2.17” | 0.09” | +/- 0.01” | 1.18” | +/- 0.12” | 66’ |
| SPW-N50SSG | 1.5” | +/- 0.04” | 1.65” – 2.52” | 0.12” | +/- 0.01” | 1.38” | +/- 0.12” | 66’ |
| SPW-N63SSG | 2.0” | +/- 0.04” | 2.05” – 2.95” | 0.14” | +/- 0.01” | 1.57” | +/- 0.16” | 66’ |
| SPW-N75SSG | 2.4” | +/- 0.04” | 2.56” – 3.8” | 0.15” | +/- 0.02” | 1.6” | +/- 0.16” | 66’ |
| SPW-N110SSG | 2.83” | +/- 0.04” | 3.15” – 4.9” | 0.18” | +/- 0.02” | 1.78” | +/- 0.16” | 66’ |
| SPW-N90SSG | 3.43” | +/- 0.04” | 3.8” – 5.9”+ | 0.22” | +/- 0.02” | 2.17" | +/- 0.16” | 40’ |
