Guard Dog® Cable Protectors - Low Profile - Solid Black
0.75" H Channel Size | 1-5 Channels Low Profile & ADA Ramps Available
0.0 / 5
Low Profile Guard Dog® Cable Protectors Features
- Protects Cables & Hoses Up to .75” Outside Dia
- Dog Bone Connectors To Extend to Any Desired Length
- Reinforced Hinged Lid For Easy Cable Placement
- Available With ADA Compliant Ramps
- Patented 5 Bar Tread Surface For Added Traction
- Modular Interlocking Design
Low Profile Guard Dog® Cable Protectors are the most compact open hinge top cable protectors on the market. These cable protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing weight capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps. Guard Dog Low Profile heavy duty cable protectors are designed to protect cables and wires from damage for vehicle and pedestrian traffic. The cable protector surface has a 5-bar tread surface. This Patented design offers superior traction for reduced slipping. The Modular interlocking style allows for easy setup and dismantling. Ideal for all types of applications. Made in the USA. The low-profile guard dog cable protectors are manufactured using guidelines provided by NEC, OSHA, RoHS, REACH, and MUTCD. They are made of high-quality and durable material that is treated with UV-stabilizing technology and temperature treatment for providing increased protection to your valuable cables and ensuring the safety of pedestrian and vehicle traffic. According to the American Disability Act of 1990, certain rules and regulations have to be followed for ensuring non-discrimination of handicapped people in public areas such as parks, schools, government buildings, etc. Using low-profile guard dog cable protectors serves to increase the life of cables and cords while providing a safe crossing to pedestrian and vehicular traffic. Manufactured with MUTCD-recommended colors, these cable protectors are more noticeable from far distances. Exposed cables, cords, and hoses present a serious tripping and safety hazard for pedestrians and vehicular traffic, especially if left unattended.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PART # | Cable Protector Type | Connector Type | Max Weight Capacity | Channel Width | Channel Height | Length | Width |
|---|---|---|---|---|---|---|---|
| CPGD5X75 | 5 Channel Low Profile Cable Protector | Dog Bone | 48,000 Lbs Per Axle | 1.28" Channel Width | 0.75" Channel Height | 38.38 in (97.5 cm) | 16.88 in (42.9 cm) |

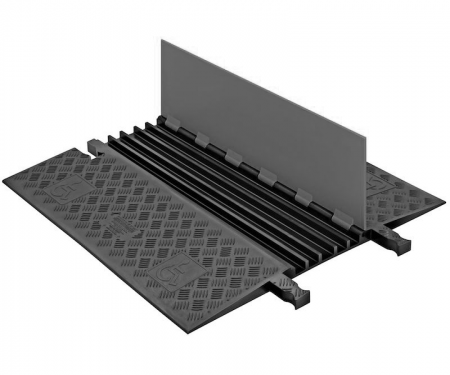

| CRGD5X75 | 5 Channel ADA Cable Protector | 68,000 Lbs Per Axle | 1.28" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 33.38 in (84.8 cm) | |

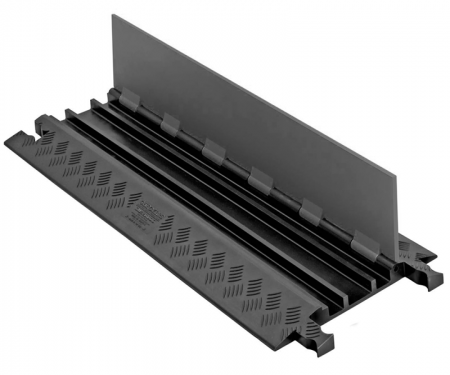

| CPGD3X75 | 3 Channel Low Profile Cable Protector | 34,000 Lbs Per Axle | 1.25" Channel Width | 0.75" Channel Height | 38.38 in (97.5 cm) | 13.75 in (34.9 cm) | |

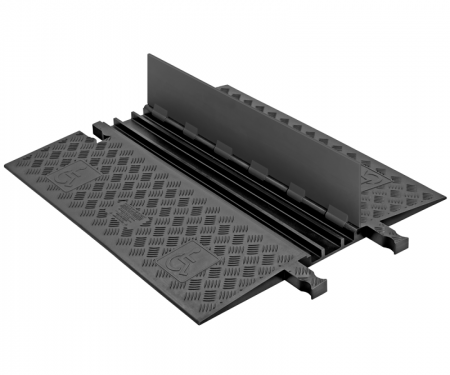

| CRGD3X75 | 3 Channel ADA Cable Protector | 54,000 Lbs Per Axle | 1.25" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 30.38 in (77.2 cm) | |

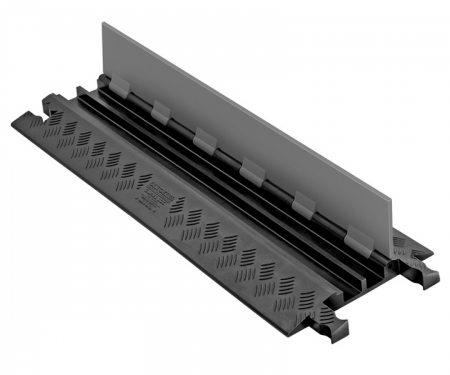

| CPGD2X75 | 2 Channel Low Profile Cable Protector | 26,000 Lbs Per Axle | 1.5" Channel Width | 0.75" Channel Height | 38.5 in (97.8 cm) | 12 in (30.5 cm) | |
| CRGD2X75 | 2 Channel ADA Cable Protector | 46,000 Lbs Per Axle | 1.5" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 28.5 in (72.4 cm) | |
| CPGD1X75 | 1 Channel Low Profile Cable Protector | 23,000 Lbs Per Axle | 2.25" Channel Width | 0.75" Channel Height | 38.5 in (97.8 cm) | 11 in (27.9 cm) | |

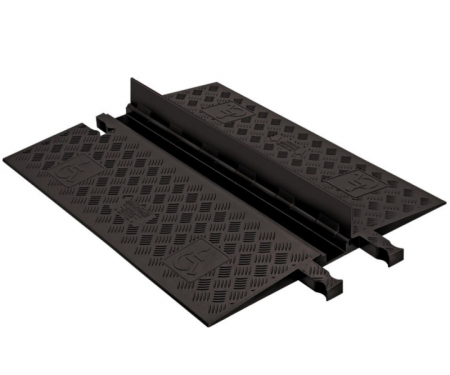

| CRGD1X75 | 1 Channel ADA Cable Protector | 46,000 Lbs Per Axle | 2.25" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 28.5 in (72.4 cm) |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Application Areas?
Areas with low vehicle traffic and high pedestrian activity can be regulated using low profile guard dog cord covers.
- Convention centers
- Festivals
- Warehouses
- Factories
- Government and regulatory buildings
- Construction zones and job sites
- Arenas
- Schools
- Amphitheaters
- Race tracks
- Exhibition centers
- Roads or highways
- Fairs, events, and mass congregations
- Music studios, gyms or dance centers
- Outdoor sports arenas
- Concert halls, etc.
Benefits of Using Low Profile Guard Dog Cable Covers
- The threat of tripping or stumbling increases due to bare cables. Dangerous cables can prove to be fatal, if left uncovered. Exposed cables can easily catch fire or they may burn when exposed to high heat or inflammable liquids/solvents. Low profile guard dog cable covers provide adequate protection to people on foot and allow them to notice the upcoming risk.
- 5-bar tread plate surface restricts the accumulation of slippery solvents or liquids, thereby reducing the chances of slipping, tripping or stumbling.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Guidelines for Placement?
- The ends should always be secured with connectors. Make sure to ask our representative about connectors for your low profile guard dog cable protectors.
- During installation, only one cable should be inserted in one channel. Over-stocking can lead to sparking or short circuit.
- Grip tape should be used to keep the lid closed.
Product Details
Low Profile Guard Dog® Cable Protectors are the most compact open hinge top cable protectors on the market. These cable protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing weight capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps. Guard Dog Low Profile heavy duty cable protectors are designed to protect cables and wires from damage for vehicle and pedestrian traffic. The cable protector surface has a 5-bar tread surface. This Patented design offers superior traction for reduced slipping. The Modular interlocking style allows for easy setup and dismantling. Ideal for all types of applications. Made in the USA. The low-profile guard dog cable protectors are manufactured using guidelines provided by NEC, OSHA, RoHS, REACH, and MUTCD. They are made of high-quality and durable material that is treated with UV-stabilizing technology and temperature treatment for providing increased protection to your valuable cables and ensuring the safety of pedestrian and vehicle traffic. According to the American Disability Act of 1990, certain rules and regulations have to be followed for ensuring non-discrimination of handicapped people in public areas such as parks, schools, government buildings, etc. Using low-profile guard dog cable protectors serves to increase the life of cables and cords while providing a safe crossing to pedestrian and vehicular traffic. Manufactured with MUTCD-recommended colors, these cable protectors are more noticeable from far distances. Exposed cables, cords, and hoses present a serious tripping and safety hazard for pedestrians and vehicular traffic, especially if left unattended.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PART # | Cable Protector Type | Connector Type | Max Weight Capacity | Channel Width | Channel Height | Length | Width |
|---|---|---|---|---|---|---|---|
| CPGD5X75 | 5 Channel Low Profile Cable Protector | Dog Bone | 48,000 Lbs Per Axle | 1.28" Channel Width | 0.75" Channel Height | 38.38 in (97.5 cm) | 16.88 in (42.9 cm) |
| CRGD5X75 | 5 Channel ADA Cable Protector | 68,000 Lbs Per Axle | 1.28" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 33.38 in (84.8 cm) | |
| CPGD3X75 | 3 Channel Low Profile Cable Protector | 34,000 Lbs Per Axle | 1.25" Channel Width | 0.75" Channel Height | 38.38 in (97.5 cm) | 13.75 in (34.9 cm) | |
| CRGD3X75 | 3 Channel ADA Cable Protector | 54,000 Lbs Per Axle | 1.25" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 30.38 in (77.2 cm) | |
| CPGD2X75 | 2 Channel Low Profile Cable Protector | 26,000 Lbs Per Axle | 1.5" Channel Width | 0.75" Channel Height | 38.5 in (97.8 cm) | 12 in (30.5 cm) | |
| CRGD2X75 | 2 Channel ADA Cable Protector | 46,000 Lbs Per Axle | 1.5" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 28.5 in (72.4 cm) | |
| CPGD1X75 | 1 Channel Low Profile Cable Protector | 23,000 Lbs Per Axle | 2.25" Channel Width | 0.75" Channel Height | 38.5 in (97.8 cm) | 11 in (27.9 cm) | |
| CRGD1X75 | 1 Channel ADA Cable Protector | 46,000 Lbs Per Axle | 2.25" Channel Width | 0.75" Channel Height | 39.88 in (101.3 cm) | 28.5 in (72.4 cm) |
Product Manuals
Guidelines for Placement?
- The ends should always be secured with connectors. Make sure to ask our representative about connectors for your low profile guard dog cable protectors.
- During installation, only one cable should be inserted in one channel. Over-stocking can lead to sparking or short circuit.
- Grip tape should be used to keep the lid closed.
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Application Areas?
Areas with low vehicle traffic and high pedestrian activity can be regulated using low profile guard dog cord covers.
- Convention centers
- Festivals
- Warehouses
- Factories
- Government and regulatory buildings
- Construction zones and job sites
- Arenas
- Schools
- Amphitheaters
- Race tracks
- Exhibition centers
- Roads or highways
- Fairs, events, and mass congregations
- Music studios, gyms or dance centers
- Outdoor sports arenas
- Concert halls, etc.
Benefits of Using Low Profile Guard Dog Cable Covers
- The threat of tripping or stumbling increases due to bare cables. Dangerous cables can prove to be fatal, if left uncovered. Exposed cables can easily catch fire or they may burn when exposed to high heat or inflammable liquids/solvents. Low profile guard dog cable covers provide adequate protection to people on foot and allow them to notice the upcoming risk.
- 5-bar tread plate surface restricts the accumulation of slippery solvents or liquids, thereby reducing the chances of slipping, tripping or stumbling.
