Linier® Wall Mount Cabinets - Kendall Howard
Fixed & Swing Out Cabinet Options With Glass, Vented, Or Solid Doors.
0.0 / 5
Linier® Wall Mount Cabinet Features
- Locking side panels
- 250 lb. weight capacity
- One Set of Cage Nut Style Mounting Rails
- Swing Out Cabinets Can Swing Up to 90 degrees.
- Mounting depth: 22.5"
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty

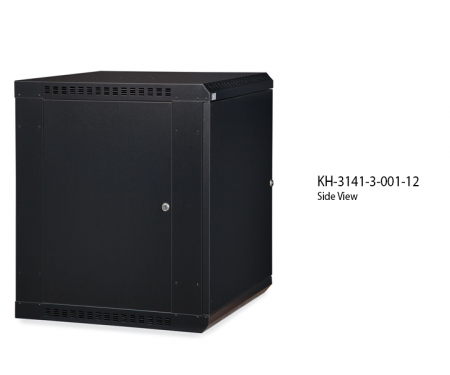

Fixed Wall Cabinets:
If you are looking for the right wall mount rack at the right price, the LINIER® brand is the solution for you. The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment. Its feature-rich design gives you a universal enclosure, guaranteed to function for a variety of applications.

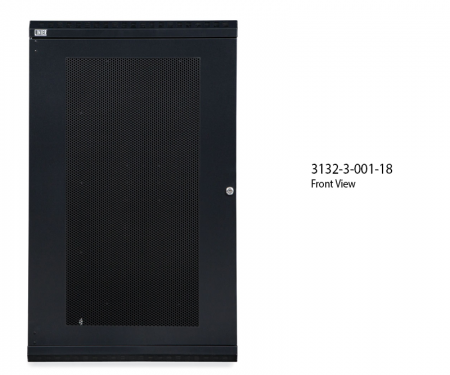

Swing Out Cabinets
The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
Kendall Howard Linier® Wall Mount Cabinets come with multiple design options, from fixed wall cabinets to swing out cabinets with variations that include vented front doors, solid front doors, or even glass front doors to suit your needs.
Fixed Wall Cabinets:
If you are looking for the right wall mount rack at the right price, the LINIER® brand is the solution for you. The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment. Its feature-rich design gives you a universal enclosure, guaranteed to function for a variety of applications.
Swing Out Cabinets
The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
Benefits
- Cost-Effective Design
- Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made yet economical wall mount enclosure.
- Numerous Laser Knockouts
- Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
- Adjustable Rails
- The included cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
- Removable Side Panels
- Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
- Locking Door and Side Panels
- The locking feature provides additional security for all three access points to keep your valuable rack mounted equipment safe from unauthorized use.
- Reversible Solid Door
- Solid door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The solid door allows you to enclose and secure your network system.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 6U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 14.21" |
| Weight | 41.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 20" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 9U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 19.46" |
| Weight | 48.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 26" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 12U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 24.71" |
| Weight | 56.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 31" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 15U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 29.96" |
| Weight | 64.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 36" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 18U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 35.21" |
| Weight | 74.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 41" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 22U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 42.21" |
| Weight | 84.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 48" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Kendall Howard Linier® Wall Mount Cabinets come with multiple design options, from fixed wall cabinets to swing out cabinets with variations that include vented front doors, solid front doors, or even glass front doors to suit your needs.
Fixed Wall Cabinets:
If you are looking for the right wall mount rack at the right price, the LINIER® brand is the solution for you. The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment. Its feature-rich design gives you a universal enclosure, guaranteed to function for a variety of applications.
Swing Out Cabinets
The LINIER® Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!
Benefits
- Cost-Effective Design
- Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made yet economical wall mount enclosure.
- Numerous Laser Knockouts
- Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
- Adjustable Rails
- The included cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
- Removable Side Panels
- Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
- Locking Door and Side Panels
- The locking feature provides additional security for all three access points to keep your valuable rack mounted equipment safe from unauthorized use.
- Reversible Solid Door
- Solid door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The solid door allows you to enclose and secure your network system.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 6U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 14.21" |
| Weight | 41.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 20" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 9U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 19.46" |
| Weight | 48.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 26" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 12U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 24.71" |
| Weight | 56.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 31" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 15U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 29.96" |
| Weight | 64.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 36" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 18U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 35.21" |
| Weight | 74.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 41" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| 22U Rack | |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 42.21" |
| Weight | 84.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 48" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
