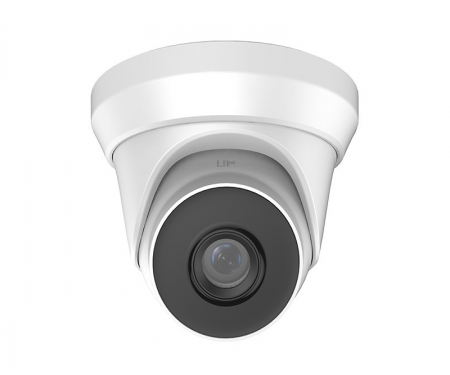

Platinum Matrix Turret Network IP Camera 4MP

4 MP High Definition with 2560x1440@20fps and DWDR

0.0 / 5

(0)

Platinum Matrix Turret Network IP Camera 4MP Features

  • 4MP High Definition
  • Up to 2560x1440@20fps
  • 2.8mm Fixed Lens
  • IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • DWDR
  • IP67
  • DC 12V, PoE
  • Metal Housing
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°
Compression Standard
Video Compression Main stream: H .265/H.264, Sub stream: H.265/H .264/MJPEG
H.264 / H.264 Zip+Type Baseline Profile / Main Profile / High Profile / Main Stream Support
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)              60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI 1 fixed region for main stream and sub-stream
Day/Night Switch Auto/Scheduled
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity		 -22 °F ~ 122 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 8.5W/wwW (PoE)
IR Range 66ft to 100ft
Weather Proof Ratings IP67
Dimensions Φ 5.14″ × 4.03″ (Φ 130.5 × 102.4 mm)
Weight 1.07lb. (485 g)
