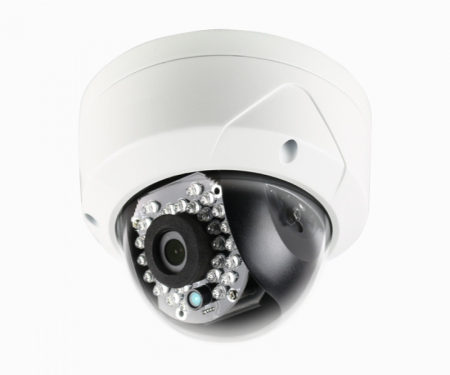

Platinum Fixed Lens Dome Network IP Camera 2.1MP

2.1 MP High Definition w/ Full HD Display from a 2.8mm Fixed Lens

0.0 / 5

(0)

Platinum Fixed Lens Dome Network IP Camera 2.1MP

  • 2.1MP High Definition
  • 12 IR LED up to 70ft
  • 3D Digital Noise Reduction(DNR), Back Light Compensation (BLC), and Digital Wide Dynamic Range (DWDR)
  • 3-Axis
  • IP66, Vandal Proof
  • DC 12V,  PoE
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/2.8" Progres s ive S can CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm
Lens Mount M12
Day &Night IR cut fi lter with auto s witch
DNR 3D DNR
Wide Dynamic Range Digital WDR
Swivel and Tilt Swivel: -9 0° ~ 90°, Til t: 0 ° ~ 75°
Compression Standard
Video Compression H.264 / MJ PEG
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Dual streams Support
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting Rotate Mode, S aturation, Brightnes s , Contras t, S harpnes s adjus table by client s oftware or web browser
BLC S upport, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols T CP/IP, UDP, ICMP, HT T P, HT T PS , FT P, DHCP, DNS , DDNS , RT P, RT S P, RT CP, PPPoE, NT P, UPnP, S MT P, S NMP, IGMP, 802.1X, QoS , IPv6, Bonjour
General One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mask, watermark, IP addres s fitering, Anonymous acces s
Standard ONVIF (PROFILE S , PROFILE G), PS IA, CGI, IS API
Interface
Communication Interface 1 RJ 45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset Yes
General
Working Temperature/Humidity - 22 °F ~ 140 °F (- 30 °C ~ 60 °C)
Humidity 95% or les s (non- condens ing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range 12 IR LED up to 70ft
Weather Proof Ratings IP66
Impact Protection IK08
Dimensions Φ4.4” × 3.2” (Φ111×82.0mm)
Weight 1.1 lbs (500g)



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

WARNING:
Products may contain materials listed under Prop 65 Enforcement Act. Click Here to read more.

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/2.8" Progres s ive S can CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm
Lens Mount M12
Day &Night IR cut fi lter with auto s witch
DNR 3D DNR
Wide Dynamic Range Digital WDR
Swivel and Tilt Swivel: -9 0° ~ 90°, Til t: 0 ° ~ 75°
Compression Standard
Video Compression H.264 / MJ PEG
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Dual streams Support
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting Rotate Mode, S aturation, Brightnes s , Contras t, S harpnes s adjus table by client s oftware or web browser
BLC S upport, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols T CP/IP, UDP, ICMP, HT T P, HT T PS , FT P, DHCP, DNS , DDNS , RT P, RT S P, RT CP, PPPoE, NT P, UPnP, S MT P, S NMP, IGMP, 802.1X, QoS , IPv6, Bonjour
General One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mask, watermark, IP addres s fitering, Anonymous acces s
Standard ONVIF (PROFILE S , PROFILE G), PS IA, CGI, IS API
Interface
Communication Interface 1 RJ 45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset Yes
General
Working Temperature/Humidity - 22 °F ~ 140 °F (- 30 °C ~ 60 °C)
Humidity 95% or les s (non- condens ing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range 12 IR LED up to 70ft
Weather Proof Ratings IP66
Impact Protection IK08
Dimensions Φ4.4” × 3.2” (Φ111×82.0mm)
Weight 1.1 lbs (500g)
