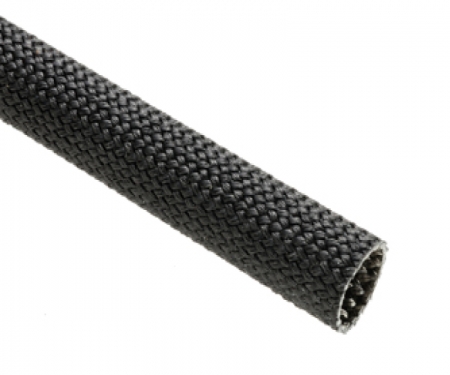

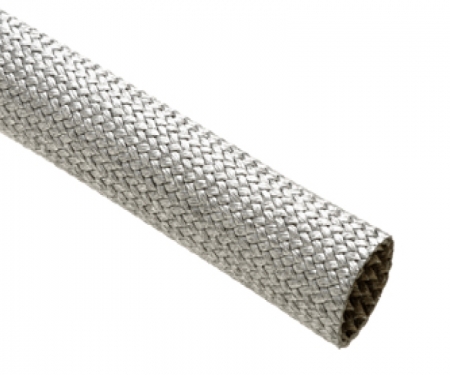

Techflex® Insultherm® Braided Fiberglass Sleeving
Tightly Braided Resin Coated Fiberglass Sleeving - Max Temp: 1,200°F
0.0 / 5
Techflex® Insultherm Braided Fiberglass Sleeving Features

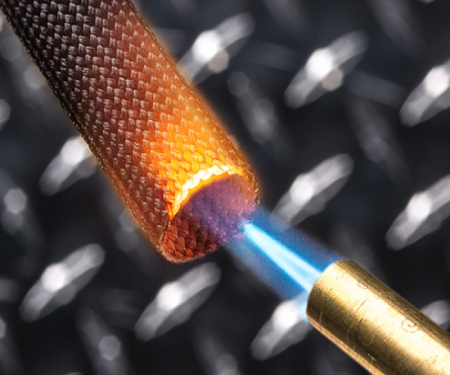

- Will Not Burn or Support Combustion
- Expands Slightly For Easy Installation
- Extremely Abrasion and Cut Resistant
- Operating Temps: -94°F to 1,202°F (-70°C to 650°C)
- Resists Common Chemicals & Solvents
- Asbestos Free - RoHS Compliant
- Tight Braid For Full Coverage and Protection
- Average 0.050" Wall Thickness
- Cuts Easily With Scissors
- Melt Temp: 2,048°F/1,120°C
Inside Diameters Are Measured as Round Not Flat

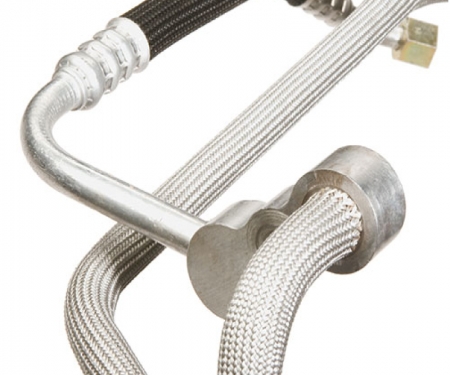

Techflex® Insultherm is an extremely high-temperature resistant sleeve commonly used as thermal protection for wires, cables, and hoses that are subjected to continuous and extreme high-temperature environments, such as engine manifolds and exhaust systems. Insultherm is braided from fiberglass yarns and saturated with high-temperature resins that improve the product's stability and minimize irritating fiberglass dusting during cutting and installation. The sleeving is tough and durable, maintaining its tight structure under extreme vibration, abrasion, mechanical stress, and temperature variations. Insultherm is available in a wide range of diameters. It cuts cleanly with scissors and installs easily over a variety of applications to either deflect or retain heat in environments up to 1,200°F.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | ||||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/2" 2 1/2" | FGN0.25 FGN0.38 FGN0.50 FGN0.63 FGN0.75 FGN0.88 FGN1.00 FGN1.50 FGN2.50 | 3/8" 5/8" 3/4" 7/8" 1 1/8" 1 1/4" 1 5/8" 2 5/8" 4 1/8" | .031" .043" .046" .046" .046" .046" .057" .061" .071" | 200' 200' 200' 200' 200' 200' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 | 2.00 3.30 4.80 5.30 6.40 8.70 10.50 16.00 19.70 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .031 - .061 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Techflex® Insultherm is an extremely high-temperature resistant sleeve commonly used as thermal protection for wires, cables, and hoses that are subjected to continuous and extreme high-temperature environments, such as engine manifolds and exhaust systems. Insultherm is braided from fiberglass yarns and saturated with high-temperature resins that improve the product's stability and minimize irritating fiberglass dusting during cutting and installation. The sleeving is tough and durable, maintaining its tight structure under extreme vibration, abrasion, mechanical stress, and temperature variations. Insultherm is available in a wide range of diameters. It cuts cleanly with scissors and installs easily over a variety of applications to either deflect or retain heat in environments up to 1,200°F.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | ||||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/2" 2 1/2" | FGN0.25 FGN0.38 FGN0.50 FGN0.63 FGN0.75 FGN0.88 FGN1.00 FGN1.50 FGN2.50 | 3/8" 5/8" 3/4" 7/8" 1 1/8" 1 1/4" 1 5/8" 2 5/8" 4 1/8" | .031" .043" .046" .046" .046" .046" .057" .061" .071" | 200' 200' 200' 200' 200' 200' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 | 2.00 3.30 4.80 5.30 6.40 8.70 10.50 16.00 19.70 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .031 - .061 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
