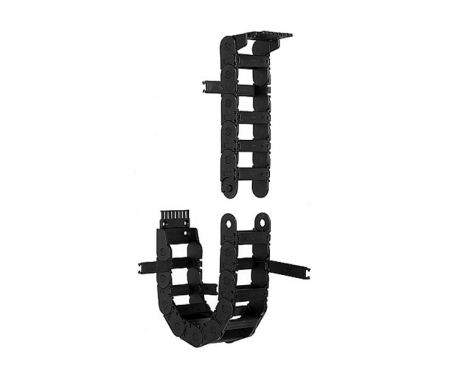

IGUS® E2 Medium 240/250 Series Cable Carrier
Available In Either Inner or Outer Opening For your Convenience
0.0 / 5
IGUS® E2 Medium 240/250 Series Cable Carrier Features

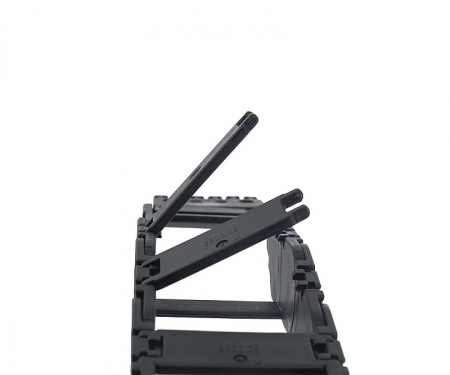

- Snap-open dual hinged to left or right for easy access
- Available with access through inner or outer radius for your convenience
- Tapered insertion point for easy assembly
- Smooth interior for long cable/hose life
- Limited bend radius protects cables for optimal performance
- Large pins for a long service life
- Dirt repelling outside material for durability
- Reinforced stop dog for a safe snap
- Integrated strain relief to extend cable quality
- 250 Series recommended for gliding applications
IGUS® introduces the E2 Medium 240/250 Series, an innovative step towards protection and accessibility. This easy-to-assemble line comes in seven different widths, each one with nine different bend radii. This cable track meets all of the requirements for a fast and effective cable or hose run; along with the guarantee of a long service life also comes the quality of the IGUS® brand.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Material Specifications
Material: igumid G
Permitted Temperature: 40°/+266°F (-40°/130°C)
Gliding Speed Maximum: 16.4 ft/s (5 m/s)
Unsupported V Maximum: 32.8 ft/s (10 m/s)
Flammability Class: VDE 0304 IIC UL94 1H

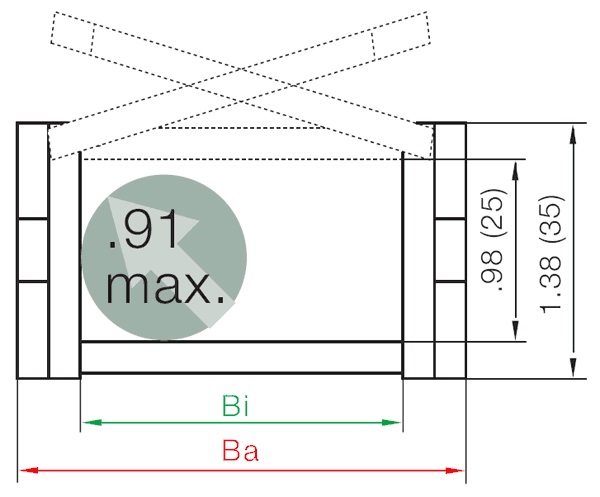

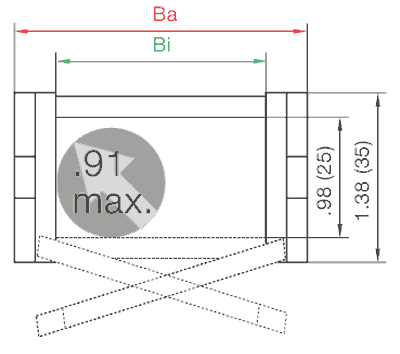

| 240 Series | 250 Series |
 |  |
| SERIES 240 ENERGY CHAIN® PART # | SERIES 250 ENERGY CHAIN® PART # | INNER WIDTH BI [IN. (MM)] | OUTER WIDTH BA [IN. (MM)] |
| 240-02 | 250-02 | 0.98 (25) | 1.61 (41) |
| 240-03 | 250-03 | 1.50 (38) | 2.13 (54) |
| 240-05 | 250-05 | 2.24 (57) | 2.87 (73) |
| 240-07 | 250-07 | 3.03 (77) | 3.66 (93) |
| 240-09 | 250-09 | 3.54 (90) | 4.17 (106) |
| 240-10 | 250-10 | 4.06 (103) | 4.69 (119) |
| 240-12 | 250-12 | 4.92 (125) | 5.55 (141) |

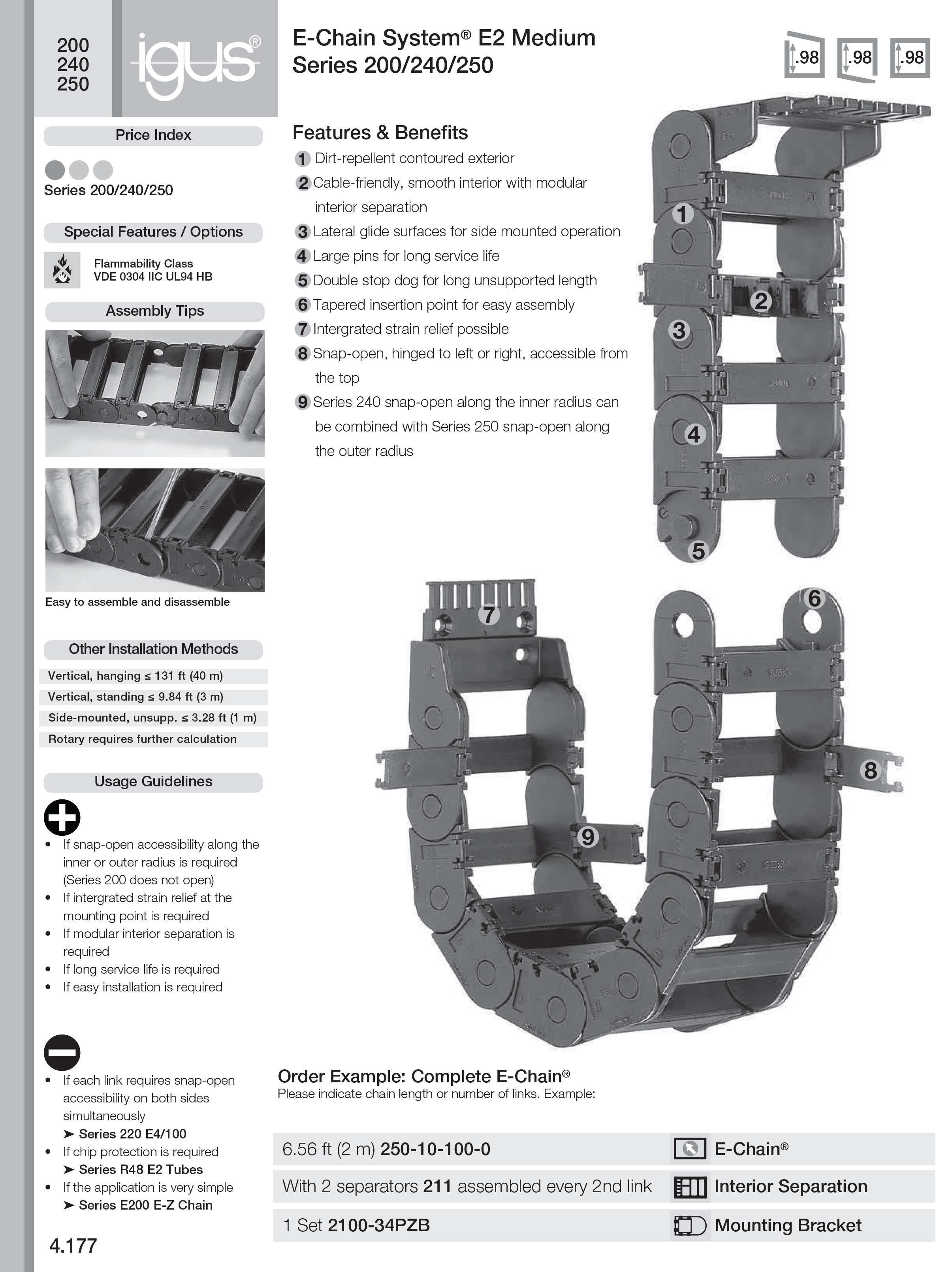

Click the image below for the full data sheet, including details like installation dimensions.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
IGUS® introduces the E2 Medium 240/250 Series, an innovative step towards protection and accessibility. This easy-to-assemble line comes in seven different widths, each one with nine different bend radii. This cable track meets all of the requirements for a fast and effective cable or hose run; along with the guarantee of a long service life also comes the quality of the IGUS® brand.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Material Specifications
Material: igumid G
Permitted Temperature: 40°/+266°F (-40°/130°C)
Gliding Speed Maximum: 16.4 ft/s (5 m/s)
Unsupported V Maximum: 32.8 ft/s (10 m/s)
Flammability Class: VDE 0304 IIC UL94 1H
| 240 Series | 250 Series |
| |
| SERIES 240 ENERGY CHAIN® PART # | SERIES 250 ENERGY CHAIN® PART # | INNER WIDTH BI [IN. (MM)] | OUTER WIDTH BA [IN. (MM)] |
| 240-02 | 250-02 | 0.98 (25) | 1.61 (41) |
| 240-03 | 250-03 | 1.50 (38) | 2.13 (54) |
| 240-05 | 250-05 | 2.24 (57) | 2.87 (73) |
| 240-07 | 250-07 | 3.03 (77) | 3.66 (93) |
| 240-09 | 250-09 | 3.54 (90) | 4.17 (106) |
| 240-10 | 250-10 | 4.06 (103) | 4.69 (119) |
| 240-12 | 250-12 | 4.92 (125) | 5.55 (141) |
Click the image below for the full data sheet, including details like installation dimensions.
