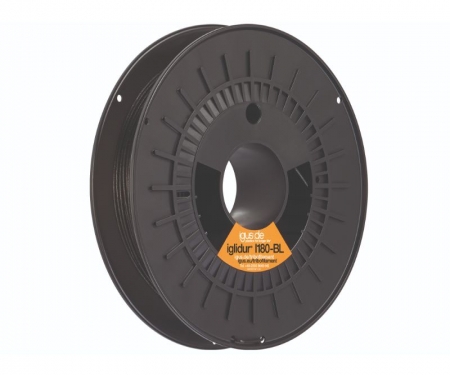

IGUS Iglide® 3d Printer Filament - I180-PF
Best combination of machinability and service life
0.0 / 5
IGUS Iglide® 3d Printer Filament - I180-PF Features
- Best combination of machinability and service life
- High abrasion resistance
- Good mechanical properties
- Nozzle temperature: 250 - 260 °C
- Black or White Options
Iguldur I180-PF is up to 50 times more abrasion resistant than other 3D printing materials. It is used to make bearings and other parts for use in high wear environments.
Tribology is the study of friction and governs the design of bearings and wear-resistant parts. Igus specialize in the production of polymer bearings which are self-lubricating and provide a higher contact area than ball bearings reducing part wear. The igus material is available in filament form for 3D printing, offering up to 50x more abrasion resistance than standard 3D printing filaments. I180-PF is an all-round performance tribofilament with printed parts able to function in temperatures between -40 to 80°C. It offers parts with very low wear rates, especially in high-speed applications. Printing the filament requires a heated bed and a closed chamber.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Processing instructions
| Nozzle temperature (min.) | 482 °F (250 °C) |
| Nozzle temperature (max.) | 500 °F (260 °C) |
| Bed temperature (min.) | 194 °F (90 °C) |
| Bed temperature (max.) | 230 °F (110 °C) |
| Recommended adhesion | igus® adhesive film |
| Construction space | Closed installation space necessary |
| Component cooling | A component cooling is not necessary, with cooling switched on it is also possible to print |
| Max. long-term application temperature | 212.00 °F (100 °C) |
| Max. short-term application temperature | 248.00 °F (120 °C) |
| Lower application temperature | -40.00 °F (-40 °C) |
| Thermal expansion coefficient (at 23°C/73°F) | 9 K-1 ⋅ 10-5, test method DIN 53752 |
| Heat conductivity | 0.23 W/(m ⋅ K), test method ASTM C 177 |
| Pressure load | 8557 psi |
| Max. recommended surface pressure (at +20 °C/68 °F) | 4,351 psi (30 MPa) |
| filament diameter | 1.75 mm |
| Outer diameter spool | 8.071 inch (205 mm) |
| Inner diameter spool | 2.165 inch (55 mm) |
| Spool width | 2.165 inch (55 mm) |
