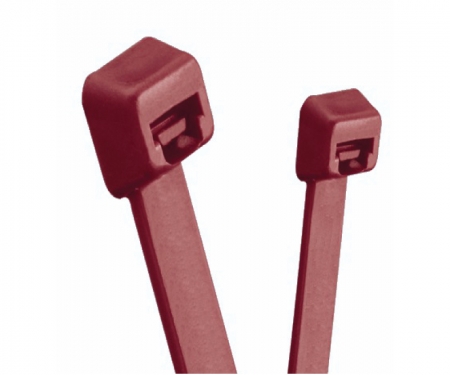

Panduit® Halar Cable Ties
Plenum Rated & Highly Engineered, Numerous Properties 4" - 11"
0.0 / 5
Panduit® Halar Zip Ties Features
- UL Listed For Use In Plenum & Air Handling Spaces Per NEC
- Maximum Continuous Operating Temperature 257°F(125°C)
- Temperature range of -60°C to 150°C.
- Low smoke density
- Excellent Flammability Rating Of UL 94V-0
- Maroon Color Identifies Material
- High Resistance To UV Rays
- CSA Certified & RoHS Complaint

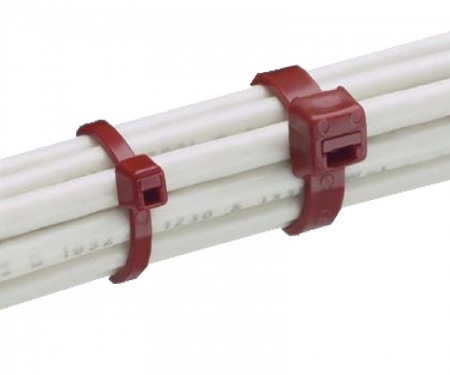

These plenum-rated Halar Cable ties are made of a unique and extremely useful material with high electrical resistivity, corrosion resistance, impact strength, friction resistance and a wide temperature range including cryogenic ranges. Panduit® plenum-rated Halar zip ties also have a wide range of applications from cable bundling in plenum spaces to nuclear plants and aerospace applications. Plenum rated cable ties also have a low smoke density rating and a very good flammability rating (U.L. 94V-0).
Common Applications include:
- Nuclear Plants
- Chemical Environments
- Telecommunications Equipment
- Aerospace
- High & Low-Temperature Environments
- Bundling Qualified Cable Without Conduit In Air Handling Space
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 4" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 4.00 inch 102.00 mm |
| Width: | .098 inch 2.50 mm |
| Bundle Diameter: | .87 |
| Min. Loop Tensile: | 18 lb. |
| 7" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 7.40 inch 188.00 mm |
| Width: | .190 inch 4.80 mm |
| Bundle Diameter: | 1.88 |
| Min. Loop Tensile: | 50 lb. |
| 11" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 11.60 inch 295.00 mm |
| Width: | .190 inch 4.80 mm |
| Bundle Diameter: | 3.00 |
| Min. Loop Tensile: | 50 lb. |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
These plenum-rated Halar Cable ties are made of a unique and extremely useful material with high electrical resistivity, corrosion resistance, impact strength, friction resistance and a wide temperature range including cryogenic ranges. Panduit® plenum-rated Halar zip ties also have a wide range of applications from cable bundling in plenum spaces to nuclear plants and aerospace applications. Plenum rated cable ties also have a low smoke density rating and a very good flammability rating (U.L. 94V-0).
Common Applications include:
- Nuclear Plants
- Chemical Environments
- Telecommunications Equipment
- Aerospace
- High & Low-Temperature Environments
- Bundling Qualified Cable Without Conduit In Air Handling Space
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 4" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 4.00 inch 102.00 mm |
| Width: | .098 inch 2.50 mm |
| Bundle Diameter: | .87 |
| Min. Loop Tensile: | 18 lb. |
| 7" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 7.40 inch 188.00 mm |
| Width: | .190 inch 4.80 mm |
| Bundle Diameter: | 1.88 |
| Min. Loop Tensile: | 50 lb. |
| 11" Halar Fluoropolymer Cable Ties | |
| Length (inch/mm): | 11.60 inch 295.00 mm |
| Width: | .190 inch 4.80 mm |
| Bundle Diameter: | 3.00 |
| Min. Loop Tensile: | 50 lb. |
