Techflex® Grip Wrap Braided Cable Sleeving
Wrap Around Sleeving With Hook & Loop Closure - 3/4" - 1-3/8" Sizes
0.0 / 5
Grip Wrap Sleeving Features
- Wrappable Design for Easy Installation and Removal
- Excellent Protection Against Cut-Through, Abrasion and Impact
- Closure Maintains Low Profile For Flat Cables & Harnesses
- Temperature Range -94°F to 257°F
- Melt Temp. 482°F
Note: Measurements are listed as inside diameter.
Please Call If Splice Free Required.

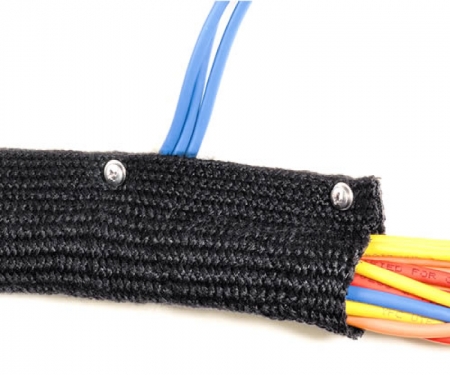

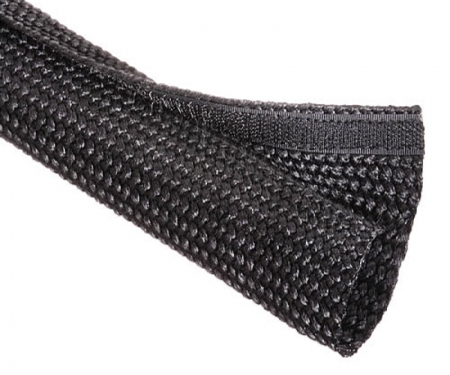

Grip Wrap wrap around braided cable sleeve is a lightweight, abrasion resistant sleeving with a unique hook and loop sealing system that eliminates spot taping and does not require an open end for installation. The sleeving permits easy access for inspection, rework or replacement of components. Grip Wrap sleeving provides cut-through and abrasion protection and is easily applied to areas restricted by breakouts and large end fittings. It can be used to bundle wire harnesses, and also can be used to substitute molded channels. The unique Grip Wrap system provides a variety of sealing and mounting options to accommodate any harnessing or cable management application.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Flat Width | Bulk Spool Length | Shop Spool Length | Colors | Lbs/100’ |
|---|---|---|---|---|---|---|
| 3/4” | BGWN0.75 | 2-15/16” | 50’ | 25’ | Black | 2.00 |
| 1” | BGWN1.00 | 4-7/16” | 50’ | 25’ | Black | 3.00 |
| 1-3/8” | BGWN1.38 | 5-5/16” | 50’ | 25’ | Black | 4.00 |
| Physical Properties | |
|---|---|
| Monofilament Thickness (ASTM D-204) | N/A |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
|---|---|
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data | (ASTM E-595 at 10-5 torr) |
|---|---|
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
|---|---|
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
|---|---|
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Grip Wrap wrap around braided cable sleeve is a lightweight, abrasion resistant sleeving with a unique hook and loop sealing system that eliminates spot taping and does not require an open end for installation. The sleeving permits easy access for inspection, rework or replacement of components. Grip Wrap sleeving provides cut-through and abrasion protection and is easily applied to areas restricted by breakouts and large end fittings. It can be used to bundle wire harnesses, and also can be used to substitute molded channels. The unique Grip Wrap system provides a variety of sealing and mounting options to accommodate any harnessing or cable management application.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Flat Width | Bulk Spool Length | Shop Spool Length | Colors | Lbs/100’ |
|---|---|---|---|---|---|---|
| 3/4” | BGWN0.75 | 2-15/16” | 50’ | 25’ | Black | 2.00 |
| 1” | BGWN1.00 | 4-7/16” | 50’ | 25’ | Black | 3.00 |
| 1-3/8” | BGWN1.38 | 5-5/16” | 50’ | 25’ | Black | 4.00 |
| Physical Properties | |
|---|---|
| Monofilament Thickness (ASTM D-204) | N/A |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
|---|---|
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data | (ASTM E-595 at 10-5 torr) |
|---|---|
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
|---|---|
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
|---|---|
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
