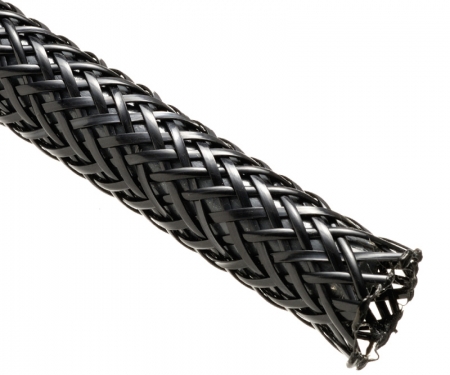

Techflex® Gorilla Heavy Duty Braided Cable Sleeving
3/8" - 3" Diameter - Nylon 6-6 Heavy Duty Abrasion & Cut Resistance
0.0 / 5
Heavy Duty Gorilla Sleeving Features
- Cuts Easily With Hot Knife
- Highly Abrasion & UV Resistant
- Expands Slightly for Easy Installation
- Full Coverage for Full Protection
- Operating Temps: -49°F to 302°F (-45°C to 150°C)
- Innovative Flat Filament Construction
- Resists Common Chemicals & Solvents
- Will not Retain Moisture
- RoHS Compliant
- Melt Temp: 509°F/265°C
- Inside Diameters Are Measured as Round Not Flat

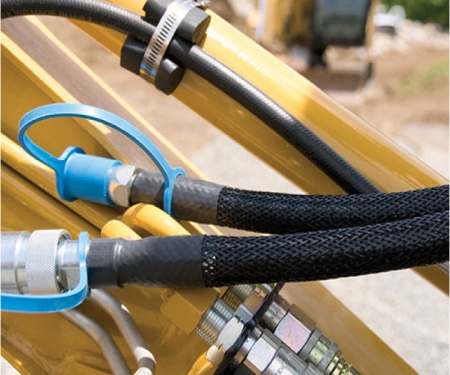

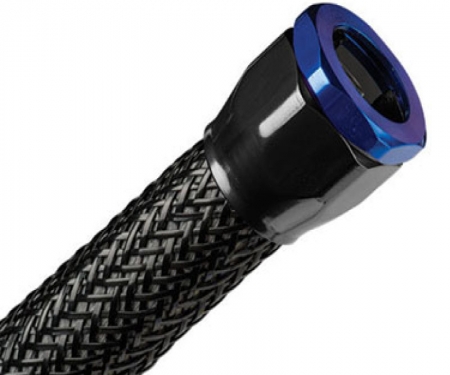

Gorilla Sleeve is engineered from flat, 50 mil wide filaments of tough and strong 6-6 Nylon to achieve a thick abrasion guard for use on hoses and cables exposed to harsh conditions. The product provides fuller coverage for increased resistance to abrasion and penetration and still expands for easy installation over long lengths. The braided construction allows moisture dissipates quickly to prevent rot and fungus. Gorilla Sleeve provides protection, easy installation and long-lasting good looks on any application.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 3" | NHN0.38BK NHN0.50BK NHN0.75BK NHN1.00BK NHN1.25BK NHN1.50BK NHN1.75BK NHN2.00BK NHN3.00BK | 1/4" 3/8" 5/8" 7/8" 1" 1 1/4" 1 1/2" 1 3/4" 2 1/4" | 1/2" 5/8" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3 1/2" | 500' 500' 250' 250' 250' 100' 100' 100' 100' | 100' 100' 50' 50' 50' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK | 1.00 1.40 2.10 2.20 2.50 3.40 4.00 4.40 6.50 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .020 Flat Filament |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .05 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 19 |
| Abrasion Resistance | Extremely High |
| Specific Gravity | 1.12 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 4 |
| Strong Oxidants | 4 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -76°F/-60°C |
| Maximum Continuous (MIL-I-23053) | 302°F/150°C |
| Melt (ASTM D-2117) | 509°F/265°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
