Fox Jr Tone Generator Features

• Pocket-sized with pocket clip
• Overload warning beeper – alerts user to potential hazards
• Connects easily with alligator clips or RJ-11/RJ-45 combo plug
• Distinctive Warble tone is adjustable over wide range
• 120VAC line cross resistant
• Powered by 1 x A23 battery (included)
• One year warranty

Hound Jr Inductive Amplifier Features

• Pocket-sized with pocket clip
• Small and streamlined to get into tight places
• Adjustable sensitivity/volume control
• Visual signal strength indicator
• Contains hi-gain hi-impedance amplifier
• Non-conductive probe tip
• Detects Fox Jr signal from up to 12" away
• Earphone jack
• Power beeper reminder
• Powered by 1 x A23 Battery (included)
• One year warranty

Applications

• Quickly trace security, data, thermostat, telephone and audio wiring
• Trace target wire through walls
• Locate target wire among other wires

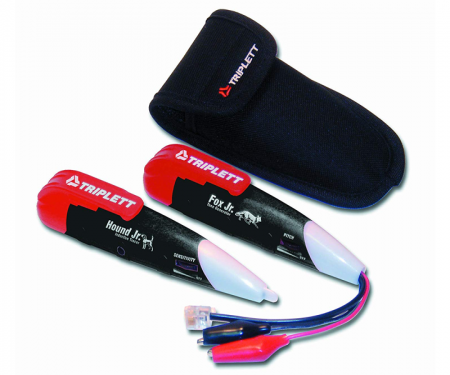

The Fox and Hound Jr wire tracing kit for security, thermostat, data, telephone, audio and other types of wiring. It consists of the Fox Jr Tone Generator and the compact Hound Jr Inductive Amplifier Probe. The Fox Jr is a battery-operated handheld multi-function Toner that generates a Warble tone with a user-adjustable pitch. It connects easily with alligator clips or RJ-11 / RJ-45 combo plug and has 120VAC line cross-protection. The Hound Jr is a battery-operated handheld lightweight Probe, with a thumb-wheel Sensitivity control and Signal Strength indicator LED that can detect trace tones up to 12" away. It has a built-in earphone jack that will automatically mute the loudspeaker for use in quiet or noisy areas. Comes complete with (2) A23 batteries. 1-year warranty.
