Techflex® Flexo® Thin Braided Cable Sleeving
Ultra Thin for Specialized Fiber Applications
0.0 / 5
Flexo Thin Sleeving Features
- Expands Beyond 200%

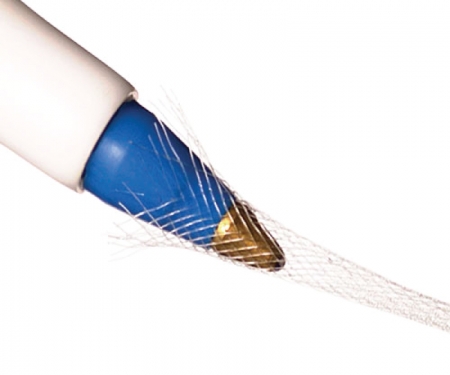

- Cuts Easily With Hot Knife
- Economical & Easy To Install
- RoHS Compliant
- Operating Temperature Range: -49° to 248°F (-45° to 120°C.)
- 482°F / 250°C. Melt Temp.
Inside Diameters Are Measured as Round Not Flat

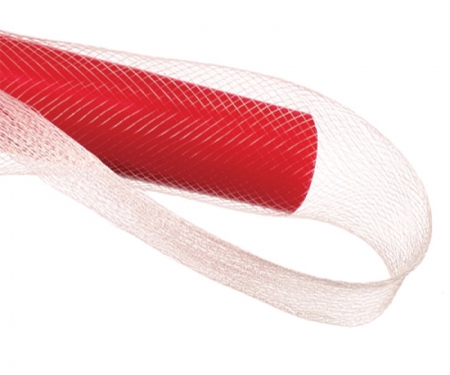

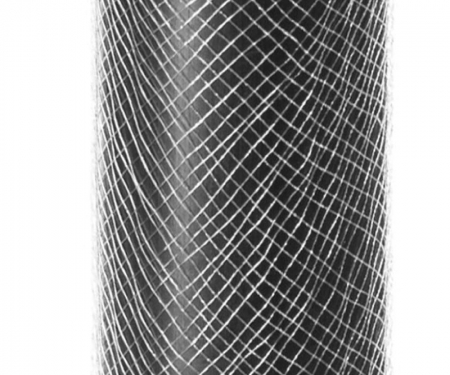

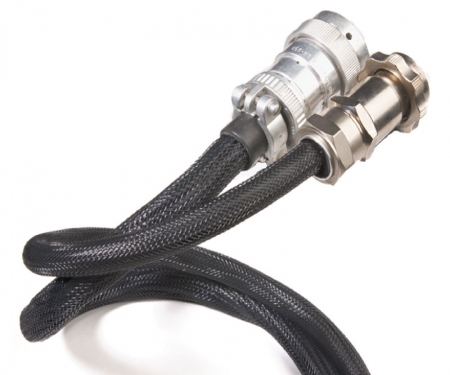

Braided from ultra fine Nylon monofilament fibers, Flexo Thin was created for applications where weight and wall thickness play a critical role. This material is strong enough to bundle multiple cables and fibers while naturally conforming to these types of applications. Many of today's micro optics and precision electronic harnesses use Flexo Thin to flexibly and attractively manage and route tiny assemblies.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Sizes
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/16" 1/4" | FTN0.06CL FTN0.25CL | 1/16" 1/8" | 3/16" 1" | 1,000' 500' | 200' 200' | CL CL | 0.013 0.043 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .002 - .003 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .005 - .008 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .002 - .003 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .005 - .008 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 3 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 428°F/220°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Braided from ultra fine Nylon monofilament fibers, Flexo Thin was created for applications where weight and wall thickness play a critical role. This material is strong enough to bundle multiple cables and fibers while naturally conforming to these types of applications. Many of today's micro optics and precision electronic harnesses use Flexo Thin to flexibly and attractively manage and route tiny assemblies.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Sizes
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/16" 1/4" | FTN0.06CL FTN0.25CL | 1/16" 1/8" | 3/16" 1" | 1,000' 500' | 200' 200' | CL CL | 0.013 0.043 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .002 - .003 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .005 - .008 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .002 - .003 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .005 - .008 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Very Low |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 3 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 1.10 |
| CVCM | .01 |
| WVR | .69 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 248°F/120°C |
| Melt (ASTM D-2117) | 428°F/220°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
