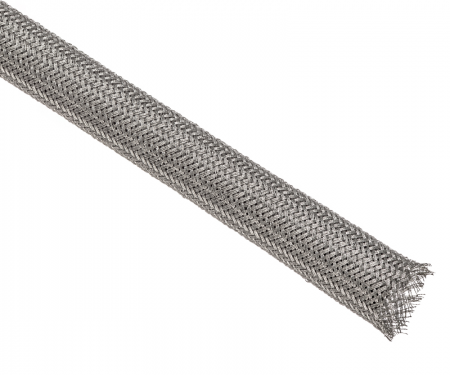

Techflex® Flexo® Stainless Steel XC Braided Cable Sleeving
Designed With Tighter Weave For Xtra Coverage - (1/8" - 1-1/2" Sizes)
0.0 / 5
Flexo Stainless Steel XC Sleeving Features
- Material: Type 304 Stainless Steel
- Virtually Indestructible SS-304
- Resists Common Chemicals & Solvents
- Will Not Rust or Discolor
- Resists UV Damage
- Cuts Easily with Shears
- Highly Abrasion & UV Resistant
- Provides Fuller Coverage
- Melt Temp: 2,650°F / 1,454°C
- Inside Diameters Are Measured as Round Not Flat

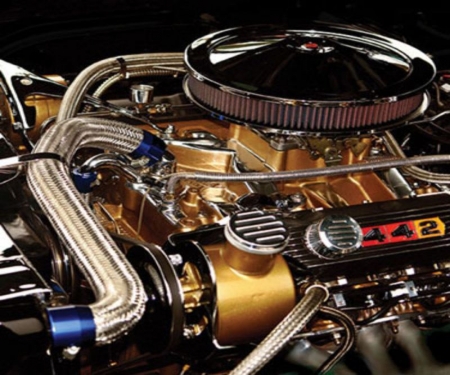

Flexo Stainless Steel XC Sleeving protects hoses from wear and blowout like nothing else. It looks great in any application and is strong and durable. The new full coverage Flexo Stainless XC sleeving provides the same look and protection as custom built Stainless Steel hoses at a fraction of the cost, saving time and money during the purchsing process. Braided from 304 Stainless Steel filaments. Flexo SS XC resists all common automotive chemicals, salt water and won't discolor or rust while providing an extreme level of abrasion protection on any application. If you absolutely Require Splice Free? Please Call 1877-284-7760 to Confirm.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV | .013" .013" .013" .013" .013" .013" .025" .025" .025" | - 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | - 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" | 250' 250' 250' 250' 100' 100' 100' 100' 100' | 100' 100' 100' 100' 50' 50' 50' 50' 50' | - 1.20 2.20 2.54 3.15 6.90 9.78 13.70 16.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 - .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .013 - .025 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 2 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo Stainless Steel XC Sleeving protects hoses from wear and blowout like nothing else. It looks great in any application and is strong and durable. The new full coverage Flexo Stainless XC sleeving provides the same look and protection as custom built Stainless Steel hoses at a fraction of the cost, saving time and money during the purchsing process. Braided from 304 Stainless Steel filaments. Flexo SS XC resists all common automotive chemicals, salt water and won't discolor or rust while providing an extreme level of abrasion protection on any application. If you absolutely Require Splice Free? Please Call 1877-284-7760 to Confirm.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV | .013" .013" .013" .013" .013" .013" .025" .025" .025" | - 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | - 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" | 250' 250' 250' 250' 100' 100' 100' 100' 100' | 100' 100' 100' 100' 50' 50' 50' 50' 50' | - 1.20 2.20 2.54 3.15 6.90 9.78 13.70 16.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 - .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .013 - .025 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 2 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
