Techflex® Flexo® Over Expanded Braided Cable Sleeving
Expands Up To 200% Nominal Diameter To Fit Over Plugs & Connectors
0.0 / 5
Flexo Over Expanded Braided Sleeving Features
- Economical, Long lasting filtration Solutions
- Cut & Abrasion Resistant
- Expands Up to 200%
- Cuts Easy With Scissors & Hot Knife
- Halogen Free
- FMVSS 302 Approval

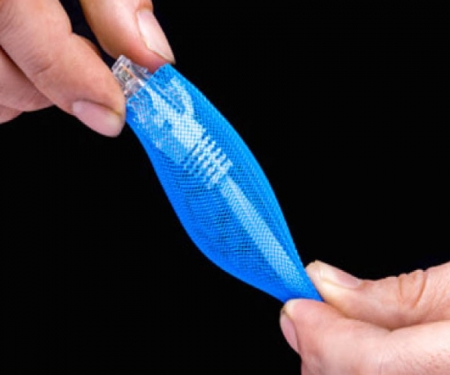

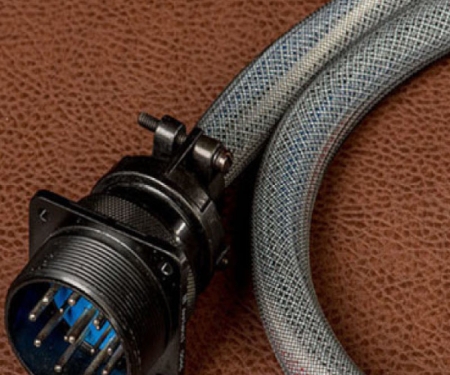

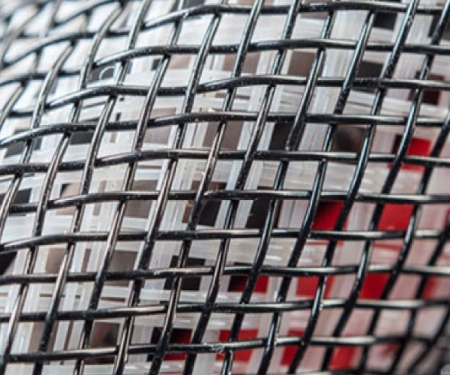

Flexo over expanded braided sleeving has many uses where inexpensive bundling and management is the principal consideration. Created to provide a fast and easy solution for automotive and marine wiring, flexo over expanded expands to nearly 4 times its nominal diameter, easing installation over large plugs and connectors.The open construction allows the underlying harness covering to show through for a unique and attractive assembly. The material cuts easily with a hot knife for a fray resistant end. Flexo PET Overexpanded will ensure that there's a perfect size to accommodate any wire management requirement. From covering single wires to managing bundles of cables up to nearly 5" in diameter, Flexo PET Overexpanded provides the ideal solution.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 3/8" 1/2" | PTO0.25 PTO0.38 PTO0.50 | 1/8" 3/16" 7/16" | 1/2" 1" 1 3/8" | 1,000' 500' 500' | 200' 125' 100' | BK 7 2 | 0.24 0.52 0.63 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 7 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4= More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo over expanded braided sleeving has many uses where inexpensive bundling and management is the principal consideration. Created to provide a fast and easy solution for automotive and marine wiring, flexo over expanded expands to nearly 4 times its nominal diameter, easing installation over large plugs and connectors.The open construction allows the underlying harness covering to show through for a unique and attractive assembly. The material cuts easily with a hot knife for a fray resistant end. Flexo PET Overexpanded will ensure that there's a perfect size to accommodate any wire management requirement. From covering single wires to managing bundles of cables up to nearly 5" in diameter, Flexo PET Overexpanded provides the ideal solution.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 3/8" 1/2" | PTO0.25 PTO0.38 PTO0.50 | 1/8" 3/16" 7/16" | 1/2" 1" 1 3/8" | 1,000' 500' 500' | 200' 125' 100' | BK 7 2 | 0.24 0.52 0.63 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 7 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4= More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
