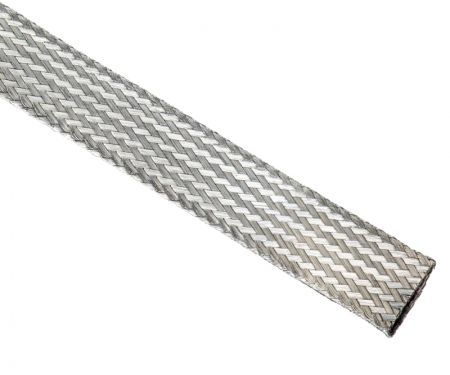

Techflex® Flexo® Flat Tinned Copper Braided Cable Sleeving
Excellent Shielding Efficiency & Easy Radial Termination
0.0 / 5
Flat Tinned Copper Sleeving Features
- Cuts Easily with Scissors
- Highly Abrasion & UV Resistant
- Extreme Blowout Protection
- Meets QQ-B-575B
- Grounding Straps
- EMI, RFI, ESD Protection
- Resists Common Chemicals & Solvents
- Will Not Retain Moisture
- Full Coverage for Full Protection
- RoHS Complaint

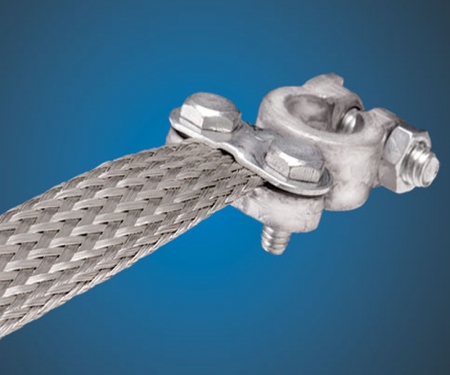

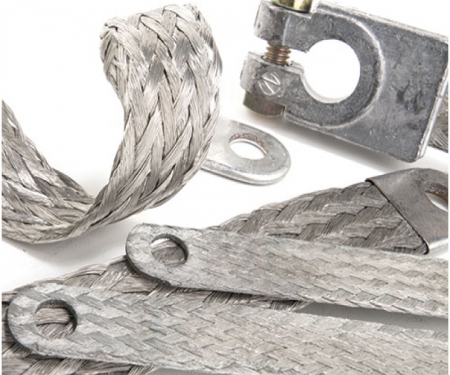

Like the tubular construction of the Flexo Tinned Copper braided sleeving, Tinned Copper Flat braided sleeving provides excellent shielding efficiency and easy radial termination. Both durable and flexible, it can be used to create a low resistance point-to-point ground strap. The flat tinned copper braid is also an ideal solution to providing additional shielding to cables in retrofit applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | AWG of End | Carrier | Wires/ Carrier | Cap. Amps | Spool Put-Ups | Lbs/ 100' | |
| Bulk | Shop | |||||||
| 1/8" 3/16" 1/4" *3/8" 5/8" 3/4" *1" 1 3/8" 1 1/2" *2" *3" | MFN0.13SV MFN0.19SV MFN0.25SV MFN0.38SV MFN0.63SV MFN0.75SV MFN1.00SV MFN1.38SV MFN1.50SV MFN2.00SV MFN3.00SV | 36 36 36 36 36 36 36 30 30 30 30 | 24 24 24 48 48 48 48 48 48 48 48 | 3 5 10 6 8 18 18 7 11 28 47 | 16 25 40 40 53 88 85 100 145 255 390 | 250' 250' 250' 250' 100' 100' 100' 100' 100' 100' 50' | 100' 100' 100 100' 50' 50' 50' 50' 50' 50' 25' | 0.70 1.10 2.00 2.40 3.60 7.70 7.90 12.00 18.00 46.10 77.70 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005-.010 |
| Flammability Rating | Non Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | N/A |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Medium |
| Specific Gravity | 8.9 |
| Moisture Absorption % (ASTM D-570) | N/A |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | N/A |
| CVCM | N/A |
| WVR | N/A |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | N/A |
| Oxygen Index (ASTM D-2863) | N/A |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 449°F/232°C |
| Other Information | ||||
| Halogen Free | Yes | |||
| RoHS | Yes | |||
| SVHC | None | |||
| UL/CSA | No | |||
