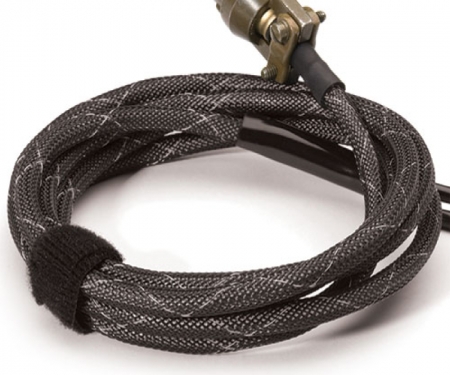

Techflex® Flame Retardant Tight Weave Braided Cable Sleeving
Flame Retardant Tight Braid For Fuller Coverage & Resistance
0.0 / 5
Flame Retardant Tight Weave Sleeving Features
- Cut & Abrasion Resistant
- Resists Gasoline And Engine Chemicals
- Meets Material Specs For Major Airlines
- Operating Temps: -94°F to 257°F (-70°C to 125°C)
- Halogen Free - RoHS Compliant
- VW-1, Mil-202, FAR-25 Approved
- Resists Common Chemicals & Solvents
- Lighter Weight Than Standard Tight Weaves
- Melt Temp: 482°F / 250°C
- Cuts Easily with a Hot Knife
- Inside Diameters Are Measured as Round Not Flat

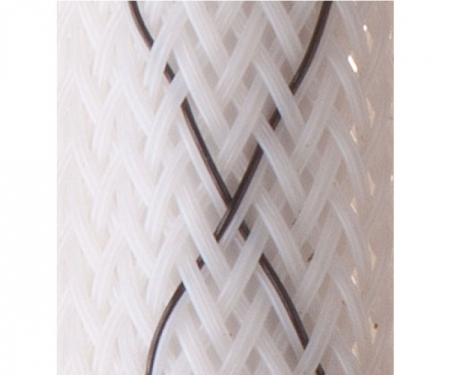

Flame Retardant Flexo Tight Weave sleeving was developed for aircraft manufacturers as a replacement for the Standard Grade Flame Retardant braided sleeving. This sleeving material is constructed from tightly braided 9 mil flame retardant monofilament. The result is fuller coverage over wire harnesses. This allows for increased abrasion protection. The 9 mil monofilament is used instead of 10 mil in order to lessen the additional weight that results when the monofilament is tightly braided into sleeving material. We manufacture sizes to accommodate various wire harnesses up to 3” in diameter.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 1/2" 9/16" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/4" 2 1/2" | F9T0.13 F9T0.25 F9T0.31 F9T0.50 F9T0.56 F9T0.75 F9T1.00 F9T1.25 F9T1.50 F9T1.75 F9T2.00 F9T2.25 F9T2.50 | 1/16" 9/64" 3/16" 9/32" 3/8" 1/2" 5/8" 3/4" 1" 1 5/16" 1 7/16" 1 3/4" 1 7/8" | 7/32" 13/32" 7/16" 5/8" 5/8" 1" 1 1/4" 1 3/4" 1 7/8" 2 3/16" 2 3/8" 2 11/16" 3" | 1,000' 1,000' 500' 500' 500' 500' 250' 250' 250' 250' 200' 200' 200' | 225' 200' 125' 100' 100' 75' 65' 50' 40' 30' 50' 50' 50' | 2 2 2 2 2 2 2 2 2 2 2 2 2 | 0.27 0.32 0.48 0.60 0.63 0.97 1.26 2.03 2.32 2.61 3.02 3.04 3.69 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .009 |
| Flammability Rating | VW-1, FAR 25 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .023 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 4.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .06 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
