Techflex® Flexglass Electrical Insulation Sleeving - FR Silicon Coated
Grade A (7,000 V) Mil-I-3190/6 - Rated to 392°F Class H
0.0 / 5
Flame Retardant Flexglass Sleeving Features
- Rated to 392°F Class H (200°C)
- Cut & Abrasion Resistant
- Grade A (7,000 V) Mil-I-3190/6
- Resists Acids, Alkalis, Organic Solvents, & Alphatic Hydrocarbons
- Operating Temperature Range: -103°F to 428°F (-75°C to 220°C)
Inside Diameters Are Measured as Round Not Flat

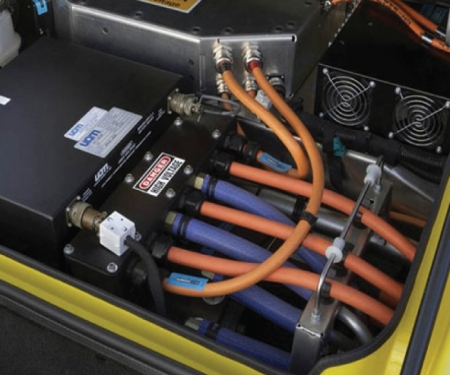

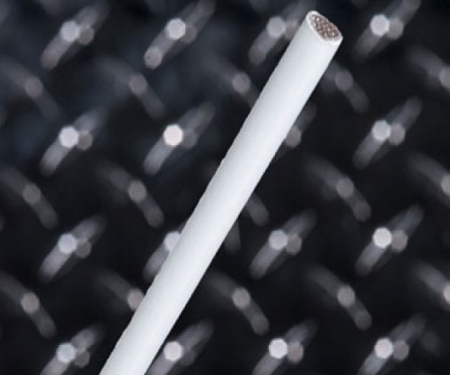

Flame Retardant Silicone Flex Glass sleeving is an extremely flexible braided fiberglass sleeve coated with a flame retardant elastometric silicone rubber sheath. The unique self-fitting construction allows SF sleeving to expand slightly for easy installation and provides a snug fit for minimum movement and reduced internal abrasion. SF sleeving is rated to 392°F. (Class H), is abrasion resistant, and maintains it’s flexibility in low temperature environments. It is available in a very wide range of sizes, and is ideal for use in appliance assemblies, wire harnesses, transformer leads, power supplies, motor coil and heater leads.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Diameter | Part # | Grade | Available Colors | Standard Spool Put-Ups | |
| Bulk Spool | Shop Spool | |||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" 1.250" 1.500" | SFA0.38 SFA0.44 SFA0.50 SFA0.63 SFA0.75 SFA0.88 SFA1.00 SFA1.25 SFA1.50 | A A A A A A A A A | 3 3 3 3 3 3 3 3 3 | 100' 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' 50' 50' |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flame Retardant Silicone Flex Glass sleeving is an extremely flexible braided fiberglass sleeve coated with a flame retardant elastometric silicone rubber sheath. The unique self-fitting construction allows SF sleeving to expand slightly for easy installation and provides a snug fit for minimum movement and reduced internal abrasion. SF sleeving is rated to 392°F. (Class H), is abrasion resistant, and maintains it’s flexibility in low temperature environments. It is available in a very wide range of sizes, and is ideal for use in appliance assemblies, wire harnesses, transformer leads, power supplies, motor coil and heater leads.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Diameter | Part # | Grade | Available Colors | Standard Spool Put-Ups | |
| Bulk Spool | Shop Spool | |||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" 1.250" 1.500" | SFA0.38 SFA0.44 SFA0.50 SFA0.63 SFA0.75 SFA0.88 SFA1.00 SFA1.25 SFA1.50 | A A A A A A A A A | 3 3 3 3 3 3 3 3 3 | 100' 100' 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' 50' 50' |
