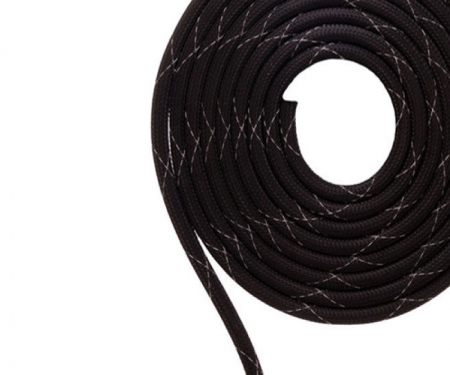

Techflex® Flame Retardant Flexo® PET Expandable Braided Cable Sleeving

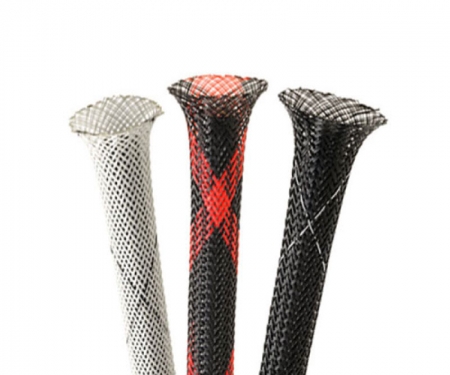

8 Color Options - VW-1 Flame Rating - Expands Up to 150% Nominal Size
0.0 / 5
Techflex® Flexo PET Flame Retardant Sleeving Features
- Expands Up to 150%
- Economical & Easy To Install
- Resists Common Chemicals & Solvents
- Asbestos Free - RoHS Compliant
- Operating Temps: -103°F to 257°F (-75°C to 125°C)
- Mil-202, FAR 25, FMVSS 302, VW-1, FR-1
- Melt Temp: 482°F/250ºC
- Cuts Easily with a Hot Knife
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat

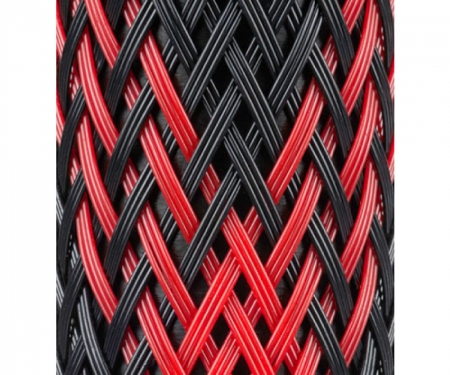

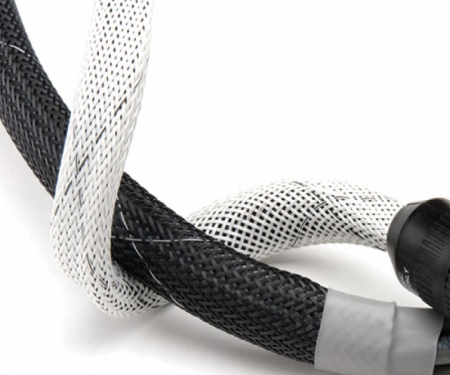

Techflex® Flexo PET Flame Retardant Expandable Braided sleeving is the perfect choice for electronic and high tech applications where flame retardance and durability are primary concerns. Ease of installation makes Flame Retardant Expandable Braided sleeving an efficient choice for long runs of wire or cable. The addition of an organic combustion inhibitor to our standard polyethylene terepthalate gives Flame Retardant Expandable Braided sleeving an Underwriters Lab and CSA flame resistance rating of VW-1. Flame Retardant Flexo PET expandable sleeving is braided from 10 mil polyethylene terepthalate (PET) monofilament yarn that has been compounded with an organic flame spread inhibitor. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion. Flame Retardant Flexo PET is tested and approved for use under FAR 23/25, FMVSS 302, UL and CSA material standards. Additionally, it is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances. It is ideal for a limitless number of electronic, automotive and industrial wire management and bundling applications, wherever flame spread is a primary safety consideration. Examples include engine compartment dressup, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, and many more. Flame Retardant Flexo PET is available in black with a white crisscross tracer, or white with a black crisscross tracer. These tracer filaments are braided into the sleeving to identify the product as Flame Retardant. The material cuts quickly and cleanly with a hot knife or similar tool, and once installed, will beautify and protect any wire, hose or cable application. To terminate the ends of any application you can use heat shrink tubing, cable ties, hook and loop straps, or plain electrical tape.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3" | FRN0.13 FRN0.25 FRN0.31 FRN0.38 FRN0.44 FRN0.50 FRN0.56 FRN0.75 FRN1.00 FRN1.25 FRN1.50 FRN1.75 FRN2.00 FRN2.50 FRN3.00 | 3/32" 1/8" 5/32" 3/16" 7/32" 1/4" 5/16" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2 1/2" | 1/4" 7/16" 15/32" 1/2" 5/8" 3/4" 7/8" 1 1/4" 1 5/8" 1 3/4" 2 1/8" 2 3/4" 3 1/2" 3 5/8" 4 3/4" | 1,000' 1,000' 500' 500' 500' 500' 500' 250' 250' 250' 200' 200' 200' 200' 100' | 225' 200' 150' 125' 125' 100' 100' 75' 65' 50' 40' 30' 50' 50' 50' | 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 | 0.16 0.24 0.50 0.57 0.68 0.72 0.81 1.07 1.34 1.60 1.96 2.70 3.30 3.80 4.00 |
| 3 End Const. | |||||||
| 1/4" | FR30.25TB | 1/8" | 3/8" | 1,000' | 200' | 3* | 0.39 |
* Available in TB, GW and TW.
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | VW-1 |
| Recommended Cutting | Hot Knife |
| Colors | 7 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .06 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Techflex® Flexo PET Flame Retardant Expandable Braided sleeving is the perfect choice for electronic and high tech applications where flame retardance and durability are primary concerns. Ease of installation makes Flame Retardant Expandable Braided sleeving an efficient choice for long runs of wire or cable. The addition of an organic combustion inhibitor to our standard polyethylene terepthalate gives Flame Retardant Expandable Braided sleeving an Underwriters Lab and CSA flame resistance rating of VW-1. Flame Retardant Flexo PET expandable sleeving is braided from 10 mil polyethylene terepthalate (PET) monofilament yarn that has been compounded with an organic flame spread inhibitor. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion. Flame Retardant Flexo PET is tested and approved for use under FAR 23/25, FMVSS 302, UL and CSA material standards. Additionally, it is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances. It is ideal for a limitless number of electronic, automotive and industrial wire management and bundling applications, wherever flame spread is a primary safety consideration. Examples include engine compartment dressup, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, and many more. Flame Retardant Flexo PET is available in black with a white crisscross tracer, or white with a black crisscross tracer. These tracer filaments are braided into the sleeving to identify the product as Flame Retardant. The material cuts quickly and cleanly with a hot knife or similar tool, and once installed, will beautify and protect any wire, hose or cable application. To terminate the ends of any application you can use heat shrink tubing, cable ties, hook and loop straps, or plain electrical tape.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3" | FRN0.13 FRN0.25 FRN0.31 FRN0.38 FRN0.44 FRN0.50 FRN0.56 FRN0.75 FRN1.00 FRN1.25 FRN1.50 FRN1.75 FRN2.00 FRN2.50 FRN3.00 | 3/32" 1/8" 5/32" 3/16" 7/32" 1/4" 5/16" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2 1/2" | 1/4" 7/16" 15/32" 1/2" 5/8" 3/4" 7/8" 1 1/4" 1 5/8" 1 3/4" 2 1/8" 2 3/4" 3 1/2" 3 5/8" 4 3/4" | 1,000' 1,000' 500' 500' 500' 500' 500' 250' 250' 250' 200' 200' 200' 200' 100' | 225' 200' 150' 125' 125' 100' 100' 75' 65' 50' 40' 30' 50' 50' 50' | 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 | 0.16 0.24 0.50 0.57 0.68 0.72 0.81 1.07 1.34 1.60 1.96 2.70 3.30 3.80 4.00 |
| 3 End Const. | |||||||
| 1/4" | FR30.25TB | 1/8" | 3/8" | 1,000' | 200' | 3* | 0.39 |
* Available in TB, GW and TW.
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | VW-1 |
| Recommended Cutting | Hot Knife |
| Colors | 7 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .06 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
