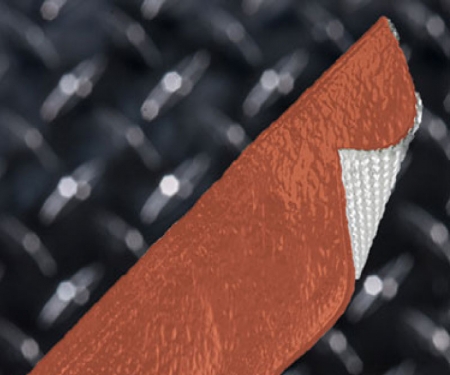

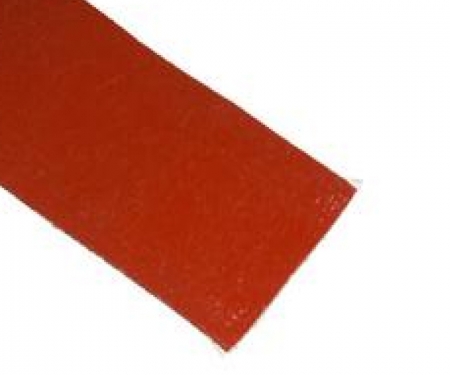

Techflex® Fire Flex Flat High Temp Fiberglass Wrap
Silicone Coated Fiberglass Wrap - Protect Irregular Shaped Components.
0.0 / 5
Fire Flex Flat Wrap Features
- Will Not Burn or Support Combustion
- Extremely Abrasion & Cut Resistant
- Operating Temps: -65°F to 500°F (-54°C to 260°C)
- Asbestos Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- Average 0.080" Wall Thickness
- Cuts Easily With Scissors
- Melt Temp: 2,048°F/1,120°C

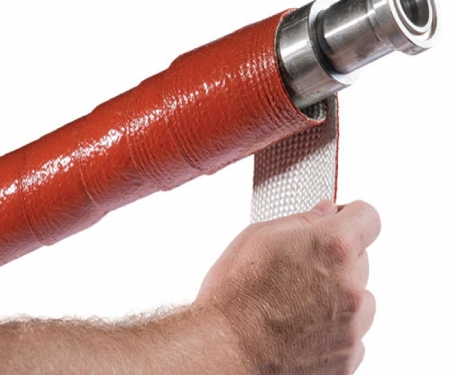

Fireflex Flat tape provides the same protection against exposure to extreme heat, open flame, and molten splash as Fireflex sleeve but in a versatile tape. It is specifically designed to protect components of irregular shape, such as hose spilter assemblies and cable splices. The heavy silicone coating maintains flexibility while resisting all automotive chemicals and solvents, and providing an increased level of abrasion protection. It is common for Fireflex Flat tape to over-wrapped at 50%, providing a double layer of protection. Once installed, it can be easily secured with tie wraps, wire ties, and hose clamps.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 3 1/2" | FIF3.50 | .094" | 50' | 25' | 3 | 16.53 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .045 |
| Abrasion Resistance | |
| Operating Temperatures | |
| Minimum Continuous | -65°F/-54°C |
| Maximum Continuous (MIL-I-23053) | 500°F/260°C |
| Melt | 2,048°F/1,120°C |
| Other Information | |
| UL/CSA | No |
| RoHS | Yes |
| Halogen Free | Yes |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Fireflex Flat tape provides the same protection against exposure to extreme heat, open flame, and molten splash as Fireflex sleeve but in a versatile tape. It is specifically designed to protect components of irregular shape, such as hose spilter assemblies and cable splices. The heavy silicone coating maintains flexibility while resisting all automotive chemicals and solvents, and providing an increased level of abrasion protection. It is common for Fireflex Flat tape to over-wrapped at 50%, providing a double layer of protection. Once installed, it can be easily secured with tie wraps, wire ties, and hose clamps.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 3 1/2" | FIF3.50 | .094" | 50' | 25' | 3 | 16.53 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .045 |
| Abrasion Resistance | |
| Operating Temperatures | |
| Minimum Continuous | -65°F/-54°C |
| Maximum Continuous (MIL-I-23053) | 500°F/260°C |
| Melt | 2,048°F/1,120°C |
| Other Information | |
| UL/CSA | No |
| RoHS | Yes |
| Halogen Free | Yes |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
