Techflex® Fire Flex Aero High Temp Fiberglass Sleeving
Rubber Silicone Jacketed Fiberglass - AS1072 Aerospace Grade
0.0 / 5
Fire Flex Aero Fiberglass Sleeving Features
- Operating Temps: -65°F to 500°F (-54°C to 260°C)
- Will Not Burn or Support Combustion
- Extremely Abrasion and Cut Resistant
- Asbestos Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- Average 0.115" Wall Thickness
- Cuts Easily With Scissors
- Melt Temp: 2,048°F/1,120°C
Inside Diameters Are Measured as Round Not Flat

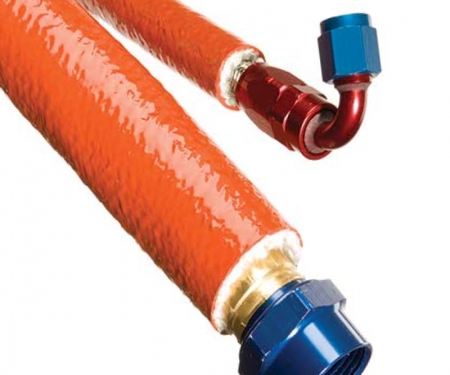

FireFlex Aero is engineered from a densely braided fiberglass sleeve and a thick coating of self-extinguishing high-temperature silicone rubber that withstands 500°F continuous exposure, and molten splash up to 2,000°F. Almost every aviation engine - turbine, turboprop or piston; civilian and military - uses FireFlex Aero to protect critical hoses and wiring in the event of an engine compartment fire. FireFlex Aero meets the specification of AS1072, allowing qualified hose assemblies to pass the fire resistance testing specification of AS1055D. FireFlex Aero is highly resistant to hydraulic fluids, lubricating oils, and fuels. The dense braided fiberglass interior insulates against energy loss in piping and hosing, while the high-density silicone coating protects personnel from accidental injury.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.010" | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/8" 1 1/4" 1 3/8" 1 1/2" 1 5/8" 1 3/4" 1 7/8" 2" 2 1/4" 2 1/2" 2 3/4" 3" | FIA0.25 FIA0.38 FIA0.50 FIA0.63 FIA0.75 FIA0.88 FIA1.00 FIA1.13 FIA1.25 FIA1.38 FIA1.50 FIA1.63 FIA1.75 FIA1.88 FIA2.00 FIA2.25 FIA2.50 FIA2.75 FIA3.00 | .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" | 100' 100' 100' 100' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' | 50' 50' 50' 50' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 8.04 9.96 14.04 20.04 21.96 26.04 33.00 35.04 36.96 44.04 48.00 38.04 42.00 44.04 48.00 55.00 65.04 76.20 87.00 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .115 |
| Abrasion Resistance | Extremely High |
| Operating Temperatures | |
| Minimum Continuous | -65°F/-54°C |
| Maximum Continuous (MIL-I-23053) | 500°F/260°C |
| Melt | 2,048°F/1,120°C |
| Other Information | |
| UL/CSA | No |
| RoHS | Yes |
| Halogen Free | Yes |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
FireFlex Aero is engineered from a densely braided fiberglass sleeve and a thick coating of self-extinguishing high-temperature silicone rubber that withstands 500°F continuous exposure, and molten splash up to 2,000°F. Almost every aviation engine - turbine, turboprop or piston; civilian and military - uses FireFlex Aero to protect critical hoses and wiring in the event of an engine compartment fire. FireFlex Aero meets the specification of AS1072, allowing qualified hose assemblies to pass the fire resistance testing specification of AS1055D. FireFlex Aero is highly resistant to hydraulic fluids, lubricating oils, and fuels. The dense braided fiberglass interior insulates against energy loss in piping and hosing, while the high-density silicone coating protects personnel from accidental injury.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.010" | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/8" 1 1/4" 1 3/8" 1 1/2" 1 5/8" 1 3/4" 1 7/8" 2" 2 1/4" 2 1/2" 2 3/4" 3" | FIA0.25 FIA0.38 FIA0.50 FIA0.63 FIA0.75 FIA0.88 FIA1.00 FIA1.13 FIA1.25 FIA1.38 FIA1.50 FIA1.63 FIA1.75 FIA1.88 FIA2.00 FIA2.25 FIA2.50 FIA2.75 FIA3.00 | .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" .115" | 100' 100' 100' 100' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' | 50' 50' 50' 50' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 8.04 9.96 14.04 20.04 21.96 26.04 33.00 35.04 36.96 44.04 48.00 38.04 42.00 44.04 48.00 55.00 65.04 76.20 87.00 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .115 |
| Abrasion Resistance | Extremely High |
| Operating Temperatures | |
| Minimum Continuous | -65°F/-54°C |
| Maximum Continuous (MIL-I-23053) | 500°F/260°C |
| Melt | 2,048°F/1,120°C |
| Other Information | |
| UL/CSA | No |
| RoHS | Yes |
| Halogen Free | Yes |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
