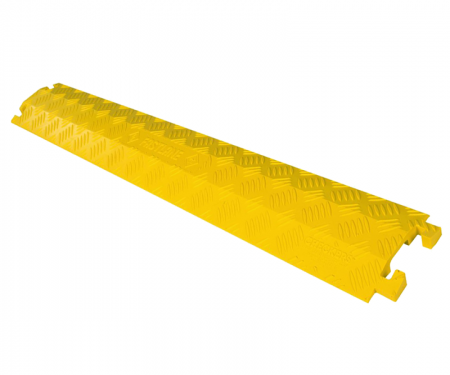

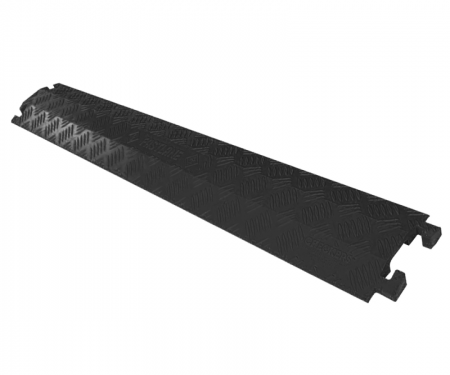

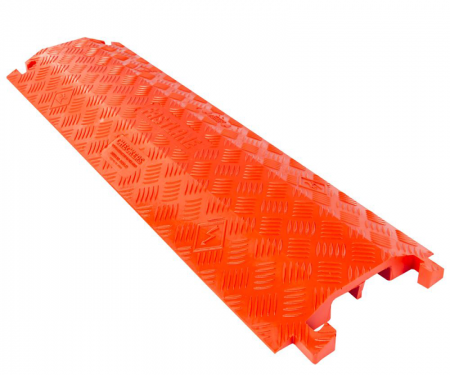

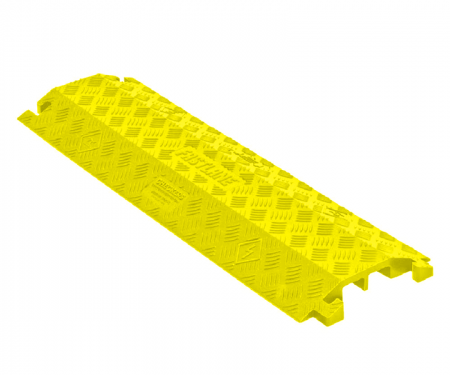

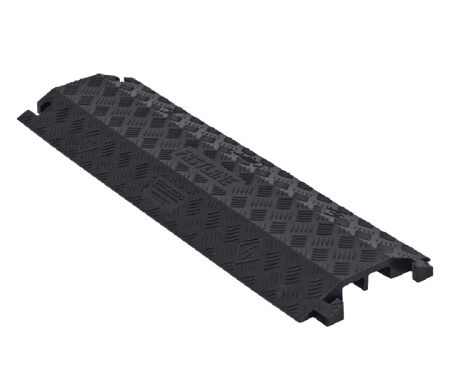

Fastlane® Drop over Cable Protectors
1 & 2 Channels Options, 1.5" - 4" Dia Channels - 3 Colors
0.0 / 5
Fastlane Cable Protector Features
- For Lightweight Vehicles & Pedestrian Traffic
- Made From Weather Resistant Polyurethane
- 5-bar Tread Surface For Added Traction
- Universal Safety Colors (UV stabilized)
- Modular Interlocking Design For Easy Setup
Lightweight Fastlane® Drop-Over Cable Protectors are made from durable polyurethane and feature heavy-duty, patented L-Connectors for easily attaching additional protectors to extend to any desired length. A patented 5-bar tread plate surface provides maximum traction for carts and pedestrian traffic. These low-profile protectors fit multiple cables and are compact for easy setup, disassembly, and storage. Most people spend hours trying to figure out how to organize cables and wires inside a room. Because of hanging wires and loose cables, tripping over them is very common in an unorganized working area. With Guard Dog Fastlane Cable Protectors, cable management is not a hassle anymore. Made from a durable polyurethane material, this cable protector is low profile, easy to install, and can protect cables from a small size of 0.5” up to large size of 1” in diameter. This product is a type of drop-over protector that has a heavy-duty L-shaped connector allowing faster connection in longer run applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
1 Channel
| Description & Color | Model # | Length (A) | Width (B) | Height (C) | Weight (lbs./kg.) | Channels Width(D) Height(E) | |
| Drop Over Protector 1 Channel (1.5 in. x .5 in.) Orange | CFL1X1.5O | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3lbs. 1.4kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector 1 Channel (1.5 in. x .5 in.) Black | CFL1X1.5B | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3lbs. 1.4kg | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector - 1 Channel Orange | CFL1X1.5RPO | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3.1lbs. 1.45kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector - 1 Channel Black | CFL1X1.5RPB | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3.1lbs. 1.45kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector 1 Channel (4 in. x 1 in.) Orange | CFL1X4O | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8lbs. 3.6kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector 1 Channel (4 in. x 1 in.) Black | CFL1X4B | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8lbs. 3.6kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector - 1 Channel Orange | CFL1X4RPO | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8.1lbs. 3.65kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector - 1 Channel Black | CFL1X4RPB | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8.1lbs. 3.65kg. | 4" 101.6mm | 1" 25.4mm |
2 Channel
| Description & Color | Model # | Length (A) | Width (B) | Height (C) | Weight (lbs./kg.) | Channels Width(D) Height(E) | |
| Drop Over Protector 2 Channel Orange | CFL2X1.75B | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9lbs. 4.2kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector 2 Channel Black | CFL2X1.75O | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9lbs. 4.2kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector - 2 Channel Orange | CFL2X1.75RPB | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9.1lbs. 4.52kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector - 2 Channel Black | CFL2X1.75RPO | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9.1lbs. 4.52kg. | 1.75" 45.5mm | 1" 25.4mm |
DISCLAIMER: PRODUCTS ARE MADE TO ORDER. MANUFACTURING LEAD TIME MAY APPLY. PLEASE CALL TO CONFIRM STOCK OR DELIVERY TIME WINDOW.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Lightweight Fastlane® Drop-Over Cable Protectors are made from durable polyurethane and feature heavy-duty, patented L-Connectors for easily attaching additional protectors to extend to any desired length. A patented 5-bar tread plate surface provides maximum traction for carts and pedestrian traffic. These low-profile protectors fit multiple cables and are compact for easy setup, disassembly, and storage. Most people spend hours trying to figure out how to organize cables and wires inside a room. Because of hanging wires and loose cables, tripping over them is very common in an unorganized working area. With Guard Dog Fastlane Cable Protectors, cable management is not a hassle anymore. Made from a durable polyurethane material, this cable protector is low profile, easy to install, and can protect cables from a small size of 0.5” up to large size of 1” in diameter. This product is a type of drop-over protector that has a heavy-duty L-shaped connector allowing faster connection in longer run applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
1 Channel
| Description & Color | Model # | Length (A) | Width (B) | Height (C) | Weight (lbs./kg.) | Channels Width(D) Height(E) | |
| Drop Over Protector 1 Channel (1.5 in. x .5 in.) Orange | CFL1X1.5O | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3lbs. 1.4kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector 1 Channel (1.5 in. x .5 in.) Black | CFL1X1.5B | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3lbs. 1.4kg | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector - 1 Channel Orange | CFL1X1.5RPO | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3.1lbs. 1.45kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector - 1 Channel Black | CFL1X1.5RPB | 36" 914.4mm | 5.25" 133mm | 0.75" 19mm | 3.1lbs. 1.45kg. | 1.5" 39mm | 0.5" 12.7mm |
| Drop Over Protector 1 Channel (4 in. x 1 in.) Orange | CFL1X4O | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8lbs. 3.6kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector 1 Channel (4 in. x 1 in.) Black | CFL1X4B | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8lbs. 3.6kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector - 1 Channel Orange | CFL1X4RPO | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8.1lbs. 3.65kg. | 4" 101.6mm | 1" 25.4mm |
| Drop Over Protector - 1 Channel Black | CFL1X4RPB | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 8.1lbs. 3.65kg. | 4" 101.6mm | 1" 25.4mm |
2 Channel
| Description & Color | Model # | Length (A) | Width (B) | Height (C) | Weight (lbs./kg.) | Channels Width(D) Height(E) | |
| Drop Over Protector 2 Channel Orange | CFL2X1.75B | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9lbs. 4.2kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector 2 Channel Black | CFL2X1.75O | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9lbs. 4.2kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector - 2 Channel Orange | CFL2X1.75RPB | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9.1lbs. 4.52kg. | 1.75" 45.5mm | 1" 25.4mm |
| Drop Over Protector - 2 Channel Black | CFL2X1.75RPO | 36" 914.4mm | 10.75" 273mm | 1.5" 38.1mm | 9.1lbs. 4.52kg. | 1.75" 45.5mm | 1" 25.4mm |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Videos
DISCLAIMER: PRODUCTS ARE MADE TO ORDER. MANUFACTURING LEAD TIME MAY APPLY. PLEASE CALL TO CONFIRM STOCK OR DELIVERY TIME WINDOW.
